Adjustment Procedure

1. Raise the hood.
2. Raise the headlamps.
3. Remove the headlamp adjustment screw plug from the headlamp bezel.

Reach under the headlamp bezel and push out the plug from behind.




4. Turn ON the low beam lamps.
5. Inspect the horizontal aim.

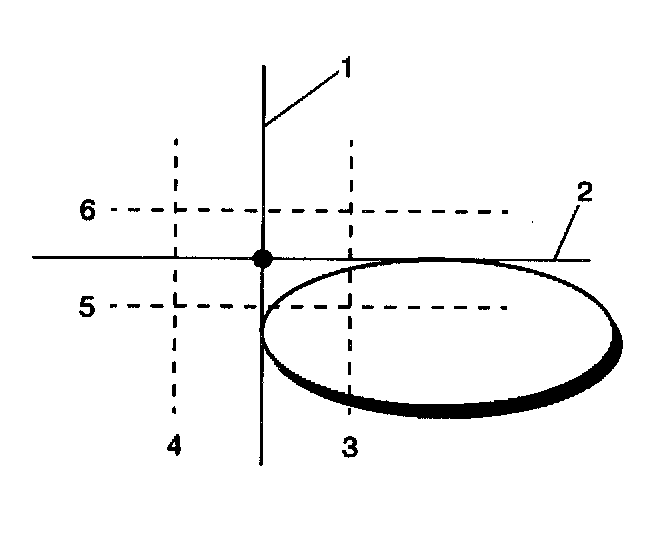

6. Adjust the aim using the horizontal adjusting screw, to align the left edge of the high intensity zone with the headlamp vertical centerline (1) within the range of 102 mm (4 in) to the left (4) of the lamp vertical centerline (1), to 102 mm (4 in) to the right (3) of the lamp vertical centerline (1) on the aiming screen.
7. Inspect the vertical aim.
8. Adjust the aim using the vertical adjusting screw, to align the top edge of the high intensity zone to the headlamp horizontal centerline (2), within the range of 51 mm (2 in) above (6) the lamp horizontal centerline (2), to 64 mm (2.5 in) below (5) the lamp horizontal centerline (2) on the aiming screen.




9. Install the headlamp adjustment screw plug. Push to secure.
10. Turn OFF the headlamps.
11. Lower the hood.
