Hazard Warning Switch: Service and Repair

REMOVAL PROCEDURE



1. Remove the I/P upper trim pad.
2. Remove the air distribution duct and the center air outlet from the lip upper trim pad.

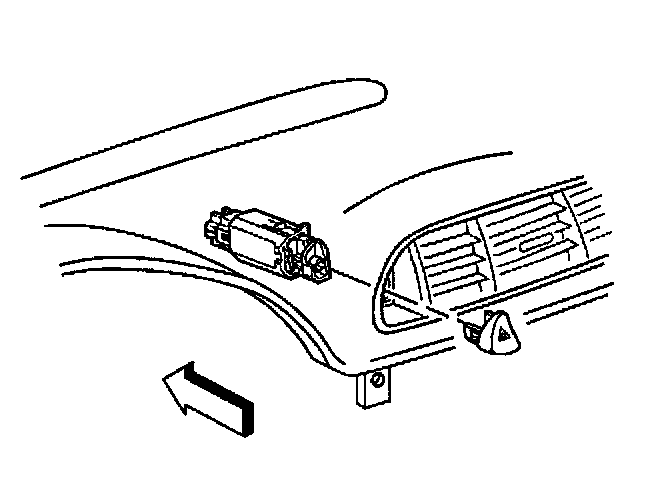

CAREFULLY release the switch retaining tabs from the rear of the air outlet, then pull to remove the switch. The hazard warning switch button will release from the switch.

INSTALLATION PROCEDURE



1. Install the hazard warning switch to the center air outlet.

Align the switch to the rear of the air outlet, then push to secure the switch.

2. Install the center air outlet and the air distribution duct to the I/P upper trim pad.




3. Install the hazard warning switch button. Align the button to the switch, then push to secure.
4. Position the switch in the off position.
5. Install the I/P upper trim pad.
