Fog/Driving Lamp Switch: Service and Repair

Fog Lamp Switch Replacement - Front




REMOVAL PROCEDURE

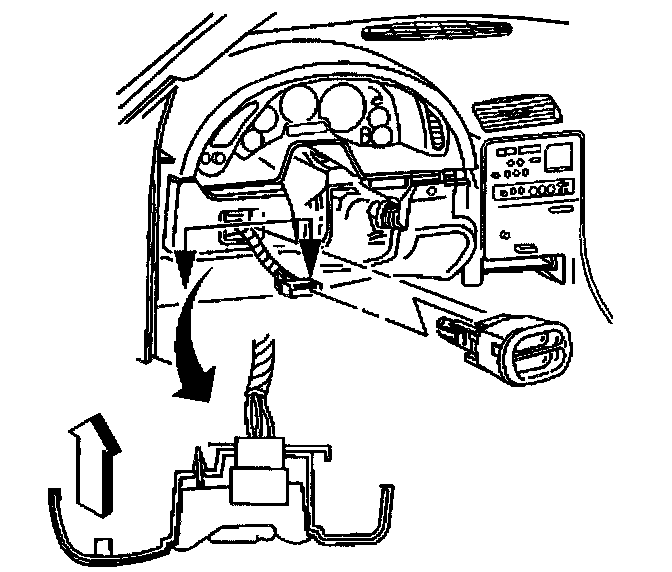

1. Pry carefully at the lower edge of the tog lamp switch to release the locking tab.
2. Disconnect the electrical connector from the switch.
3. Remove the switch.

INSTALLATION PROCEDURE
1. Connect the electrical connector to the fog lamp switch.
2. Install the switch.

Align the switch to the opening in the trim panel, then push to secure.
