Home >> Chevrolet >> 1999 >> Corvette V8-5.7L VIN G >> Repair and Diagnosis >> Lighting and Horns >> Door Switch >> Diagrams >> Door Switch, LH

Door Switch, LH

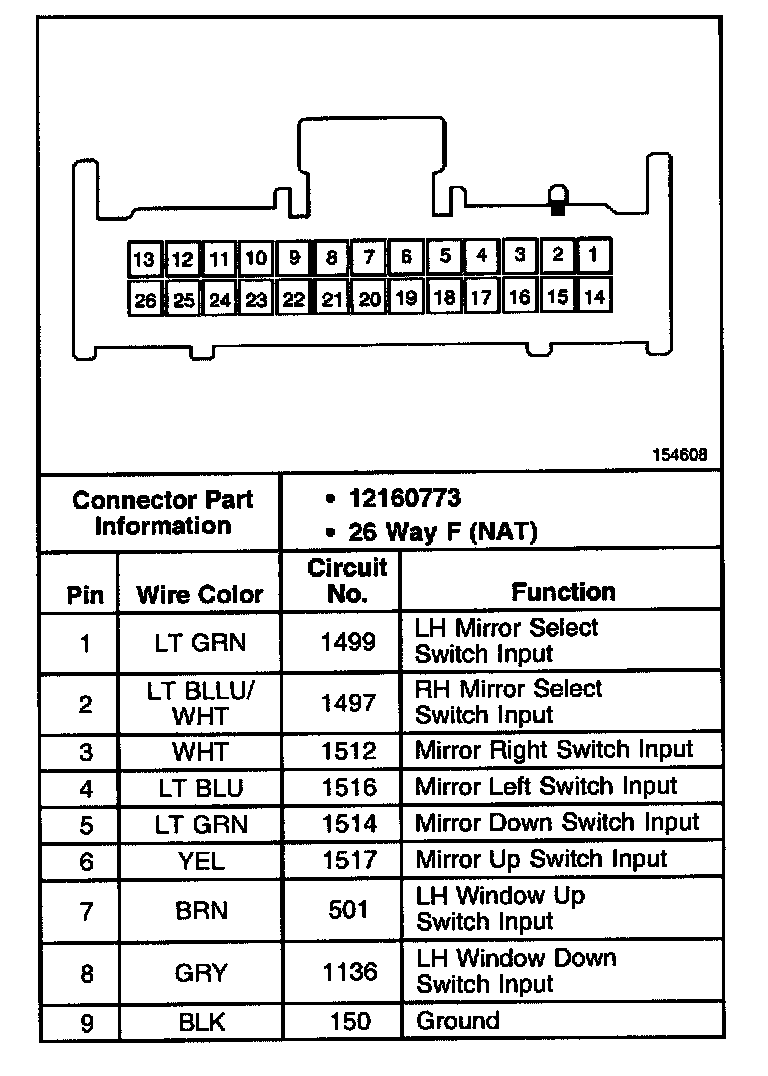

LH Door Switch (Part 1 Of 2):

LH Door Switch (Part 2 Of 2):
