Chevrolet
>>
1999
>>
Corvette V8-5.7L VIN G
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Diagrams
>>
Electrical Diagrams
>>
Interior Lights
>>
CTSY LP Relay Control
CTSY LP Relay Control

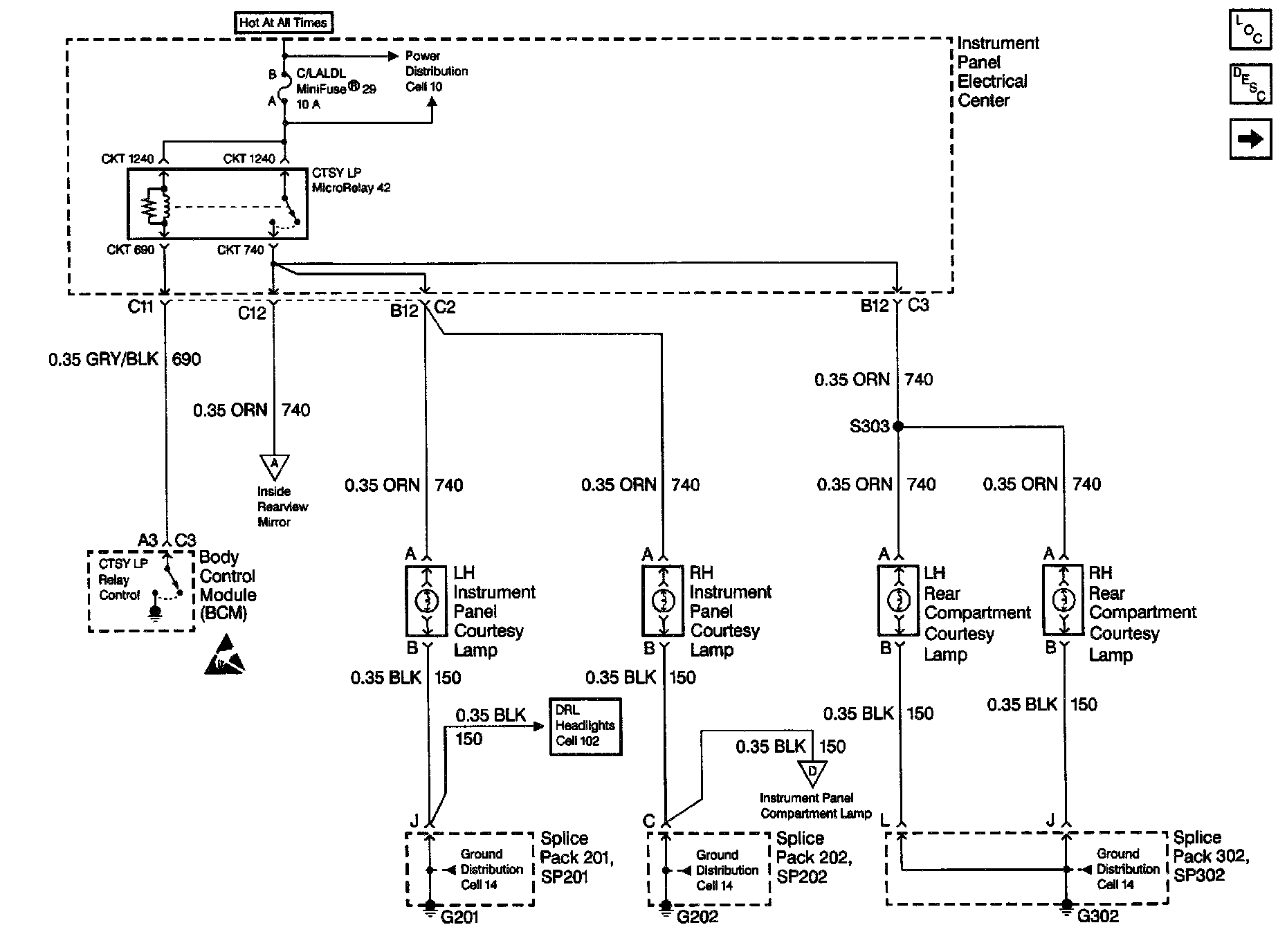

Interior Lights Schematics: CTSY LP Relay Control:
