Daytime Running Lamp Control Unit: Service and Repair

REMOVAL PROCEDURE

CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.




1. Disconnect the negative battery cable.
2. Remove the driver knee bolster trim panel.

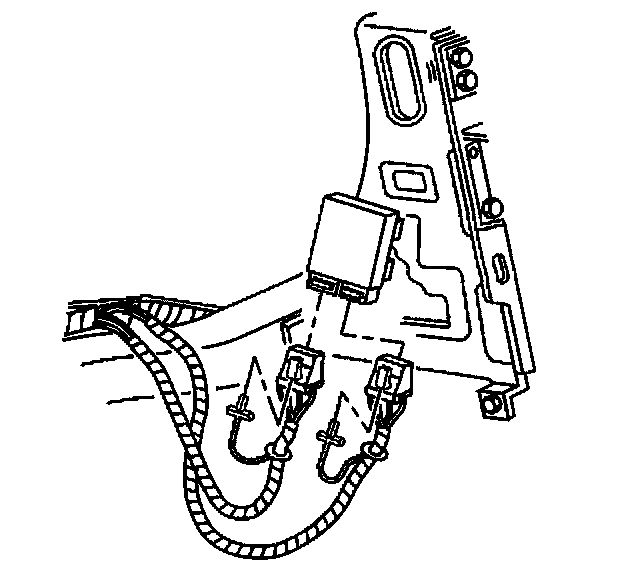

3. Disconnect both of the Connector Position Assurance (CPA) connectors.
4. Disconnect the DRL module electrical connectors.

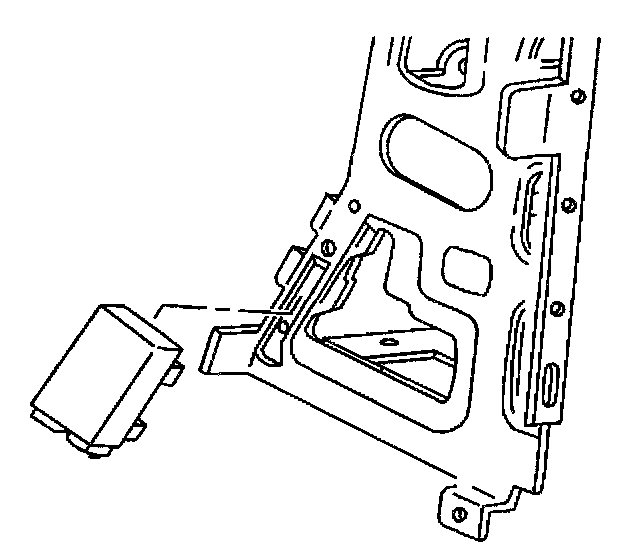

5. Remove the DRL module from the I/P center support bracket.

Release the tabs, then pull down on the module to release.

INSTALLATION PROCEDURE



1. Install the DRL module to the I/P center support bracket.

Align the module slots to the bracket tabs, then pull up to secure.




2. Connect the module electrical connectors.
3. Connect both the CPA connectors.
4. Install the driver knee bolster trim panel.

NOTE: Refer to Fastener Notice in Cautions and Notices.

5. Connect the negative battery cable.

Tighten
Tighten the negative battery cable bolt to 15 N.m (11 lb ft).

6. Program the transmitters. Refer to Transmitter Programming/Synchronization in Keyless Entry.
