HVAC Compressor Control Schematics

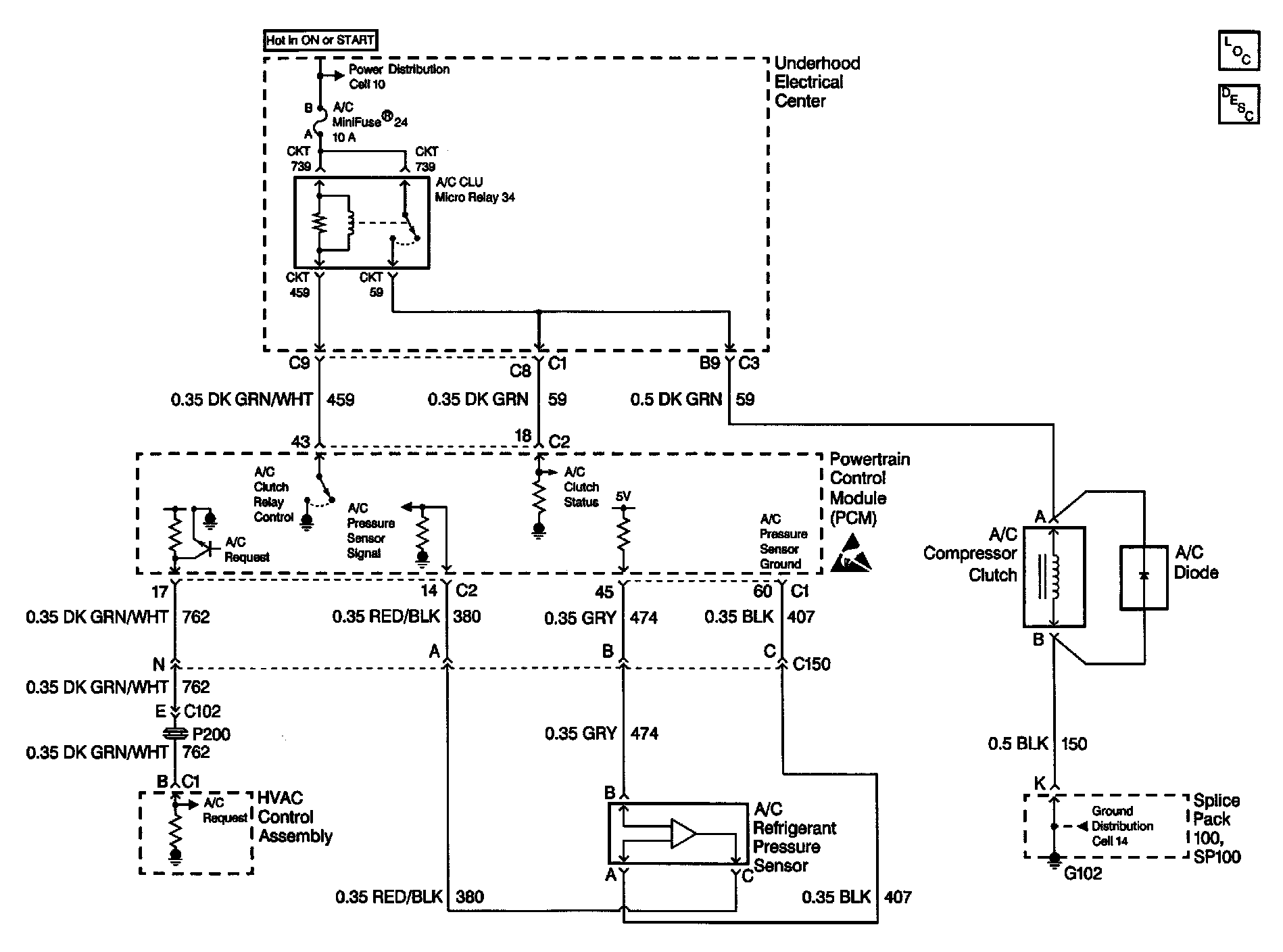

HVAC Compressor control Schematics: A/C Compressor Controls System:
