Chevrolet
>>
1999
>>
Corvette V8-5.7L VIN G
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
>>
HVAC System - Automatic
>>
HVAC Blower Control Schematics
HVAC Blower Control Schematics

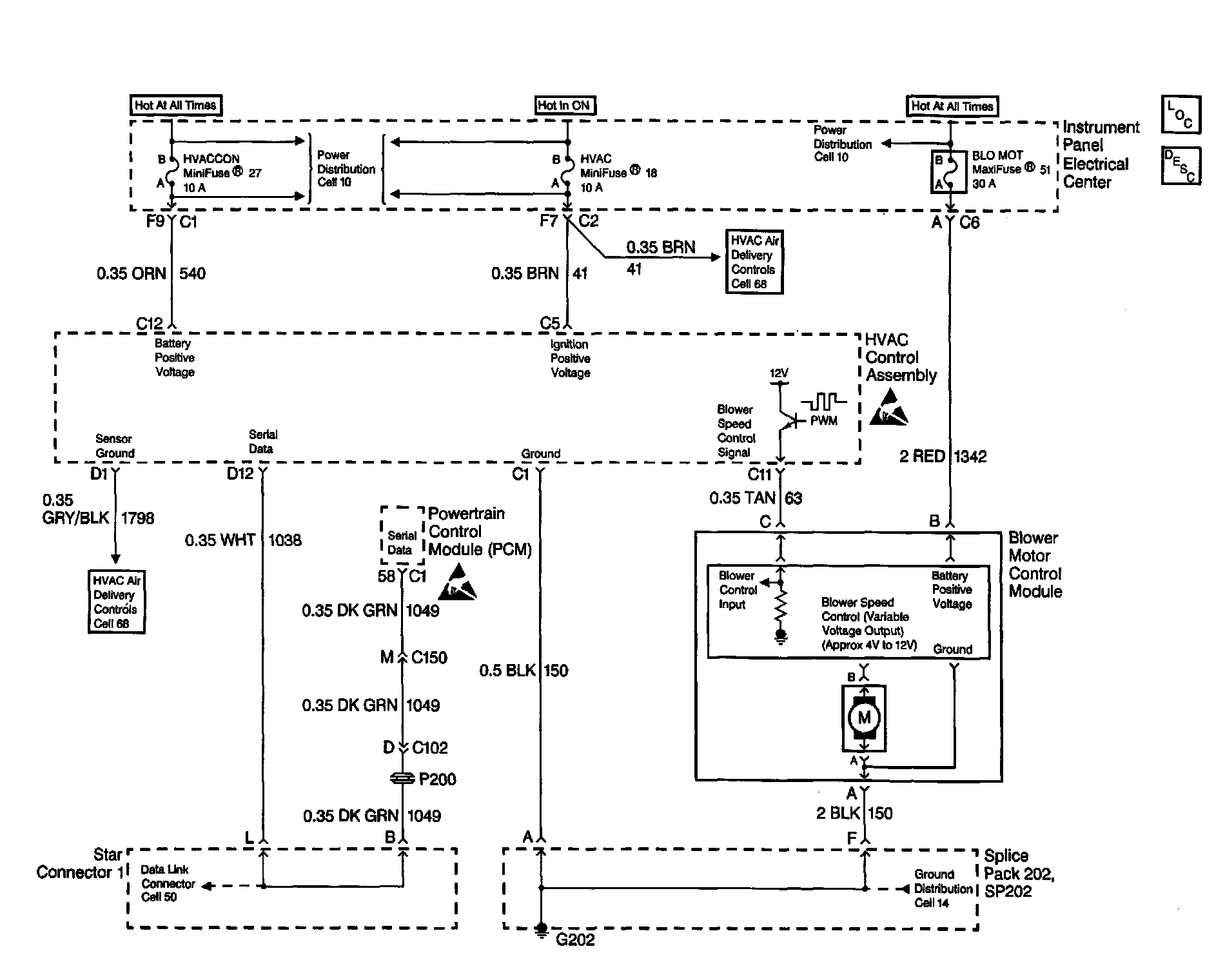

HVAC Blower Control Schematics: Blower Control System:
