Right (RH)
[1][2]Blower Control Module ReplacementREMOVAL PROCEDURE
1. Remove the windshield side garnish molding.
2. Remove the I/P upper trim pad.

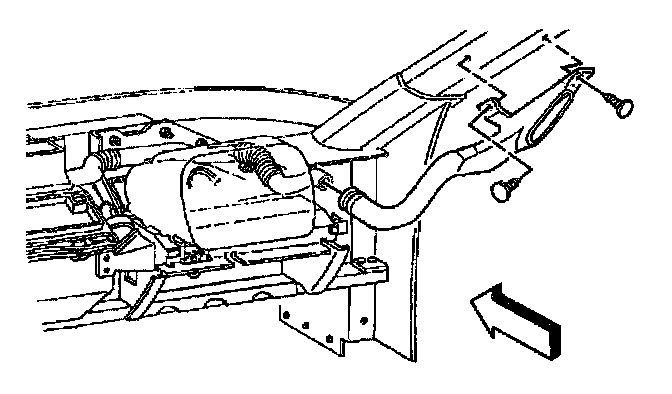

3. Remove the side window defogger upper outlet duct.
3.1. Remove the push-in retainers.
3.2. Use a twisting motion to release the upper duct from the lower duct.
4. Remove the side window defogger lower outlet duct.
4.1. Depress the duct retaining tabs and remove the duct from the passenger SIR bracket.
4.2. Use a twisting motion to release the upper duct from the windshield defroster duct.
INSTALLATION PROCEDURE
1. Install the side window defogger lower outlet duct.
1.1. Use a twisting motion to secure the lower duct to the windshield defroster duct.
1.2. Install the duct retaining tabs to the passenger SIR bracket.
2. Install the side window defogger upper outlet duct.
2.1. Use a twisting motion to secure the upper duct to the lower duct.
2.2. Install the push-in retainers.
3. Install the I/P upper trim pad.
4. Install the windshield side garnish molding.
