Floor, RH

REMOVAL PROCEDURE




1. Remove the RH lower closeout/insulator panel.
2. Remove the lower half of the floor air outlet duct.

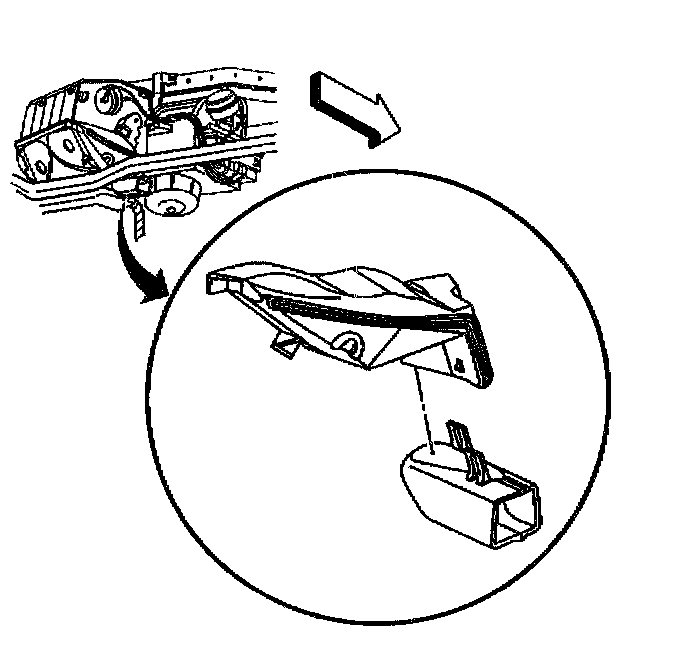

Using a flat bladed screwdriver or similar tool, release the retaining tabs, then remove the lower duct.

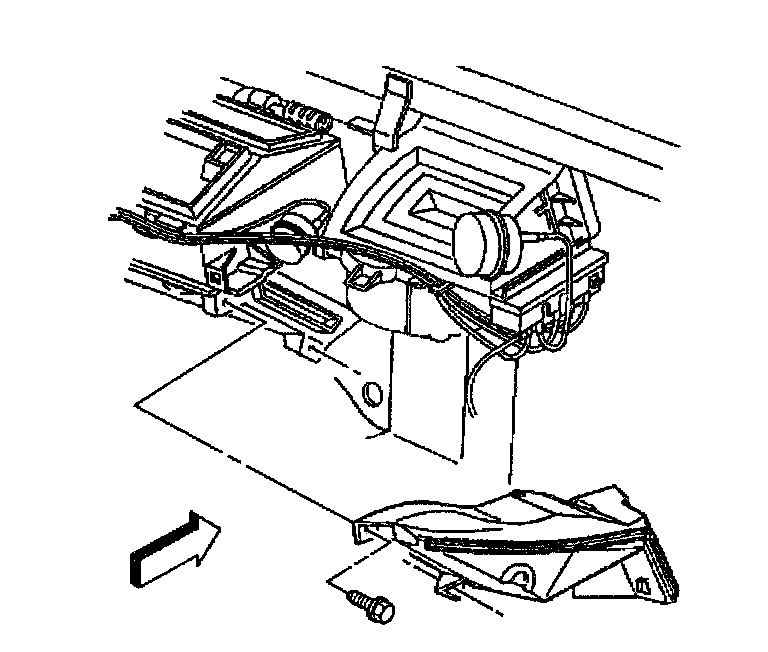

3. Remove the floor air outlet duct retaining screws.
4. Remove the floor duct, upper half.

INSTALLATION PROCEDURE




1. Install the floor air outlet duct, upper half, into position.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the floor air outlet duct retaining screws.

Tighten
Tighten the floor air outlet duct retaining screws to 1.6 N.m (14 lb in).




3. Install the floor air outlet duct, lower half.
Align the retaining tabs and snap into place.
4. Install the RH lower closeout/insulator panel.
