Harmonic Balancer - Crankshaft Pulley: Service and Repair

Removal Procedure

Caution: Refer to Battery Disconnect Caution in Service Precautions.





1. Disconnect the negative battery cable.

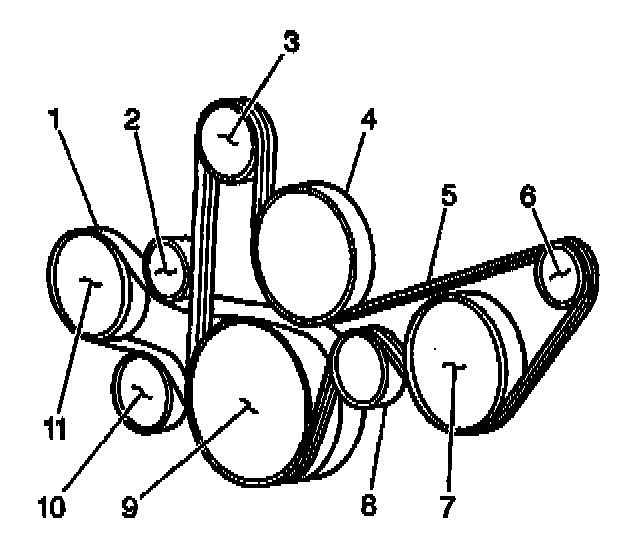

2. Release the accessory drive belt tensioner (3).
3. Remove the drive belt (5) from the engine.
4. Remove and reposition the electronic brake control module from the bracket.
5. Remove the power steering gear from the vehicle.
6. Remove the starter motor.

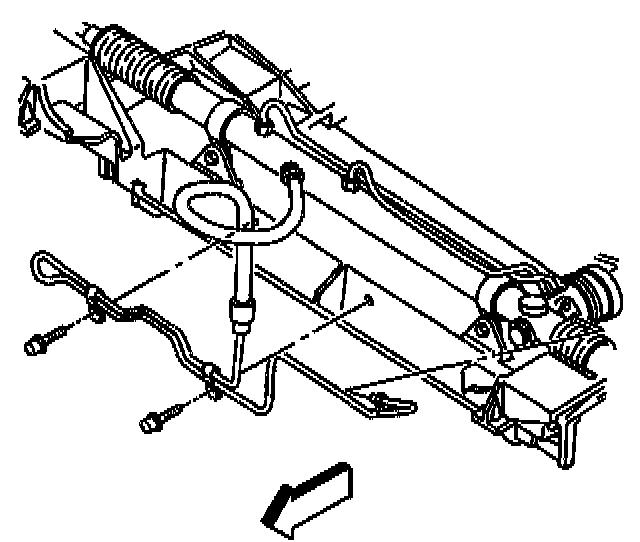

7. Remove the power steering cooler bolts from the front crossmember.
8. Remove the power steering cooler from the front crossmember and reposition.

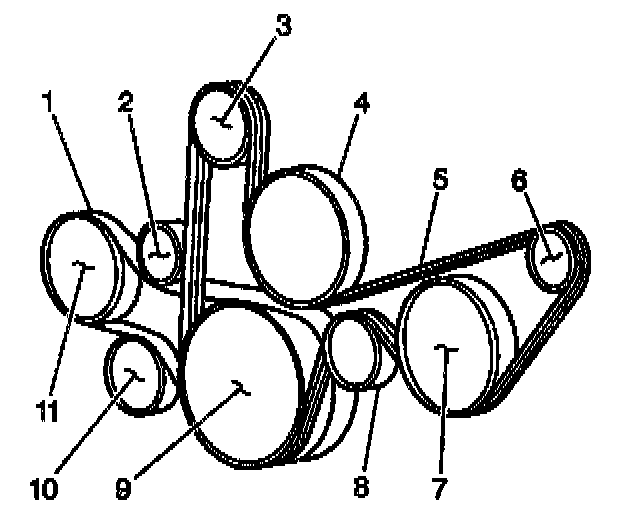

9. Release the Air Conditioning (A/C) belt tensioner (10).

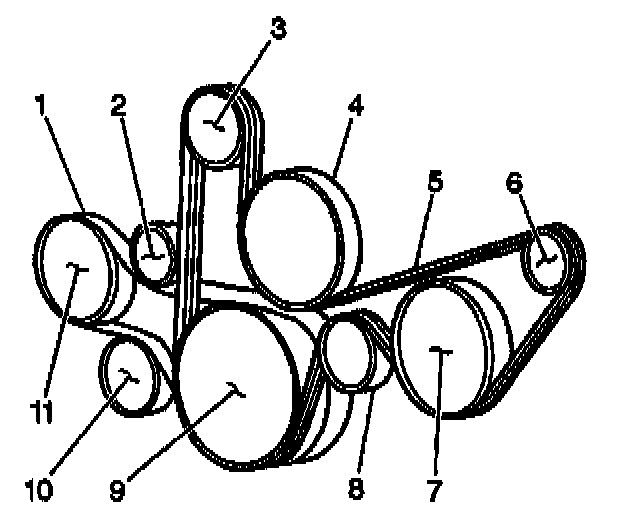

10. Remove the A/C drive belt (1) from the engine.
11. Remove the crankshaft balancer. Refer to Crankshaft Balancer Removal and Installation.

Installation Procedure





1. Install the crankshaft balancer. Refer to Crankshaft Balancer Removal and Installation.

2. Install the A/C drive belt (1) to the engine.
3. Install the power steering gear.





4. Install the power steering cooler to the front crossmember.

Notice: Refer to Fastener Notice in Service Precautions.

5. Install the power steering cooler bolts.
- Tighten the power steering cooler bolts to 11 Nm (97 inch lbs.).
6. Install the starter motor.
7. Lower the vehicle.





8. Install the accessory drive belt (5) to the engine.
9. Install the electronic brake control module to the bracket.
10. Connect the negative battery cable.
- Tighten the negative battery cable bolt to 15 Nm (11 ft. lbs.).
11. Program the Transmitters.
