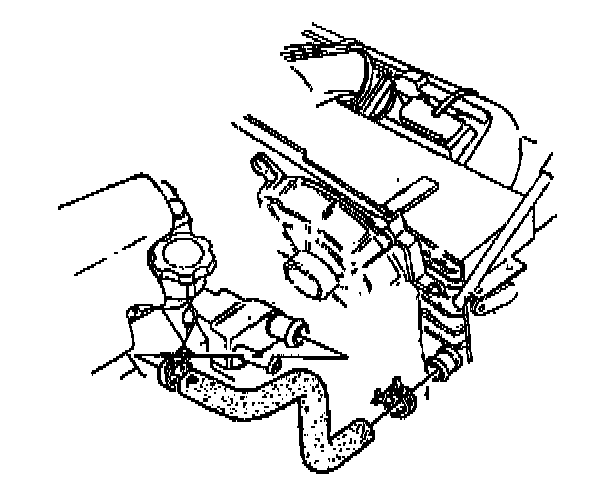

Radiator Hose Replacement - Outlet

Removal Procedure

^ Tools Required
- J38185 Spring Hose Clamp Pliers

1. Drain the cooling System.





2. Remove the radiator outlet hose clamps.
3. Remove the radiator outlet hose.

Installation Procedure





1. Install the radiator outlet hose.
2. Install the radiator outlet hose clamps.
3. Fill the cooling system.
