Radiator Hose Replacement - Inlet

Removal Procedure

^ Tools Required
- J38185 Spring Hose Clamp Pliers





1. Drain the cooling System.
2. Remove the radiator support.

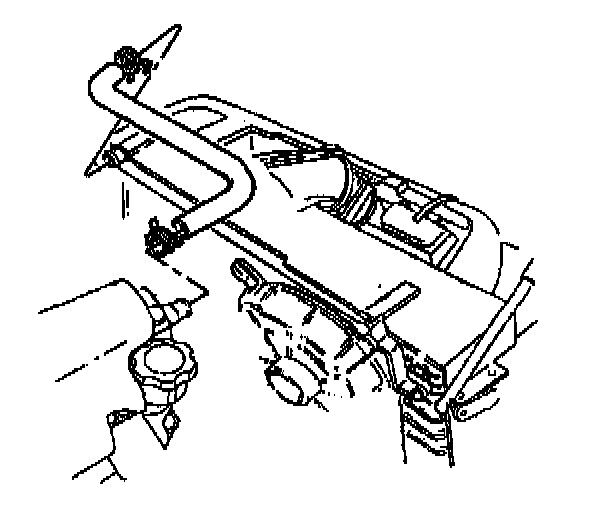

3. Remove the radiator inlet hose clamps.
4. Remove the radiator inlet hose.

Installation Procedure





1. Install the radiator inlet hose.
2. Install the radiator inlet hose clamps.
3. Install the upper radiator support.
4. Fill the cooling system.
