Corvette V8-5.7L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>

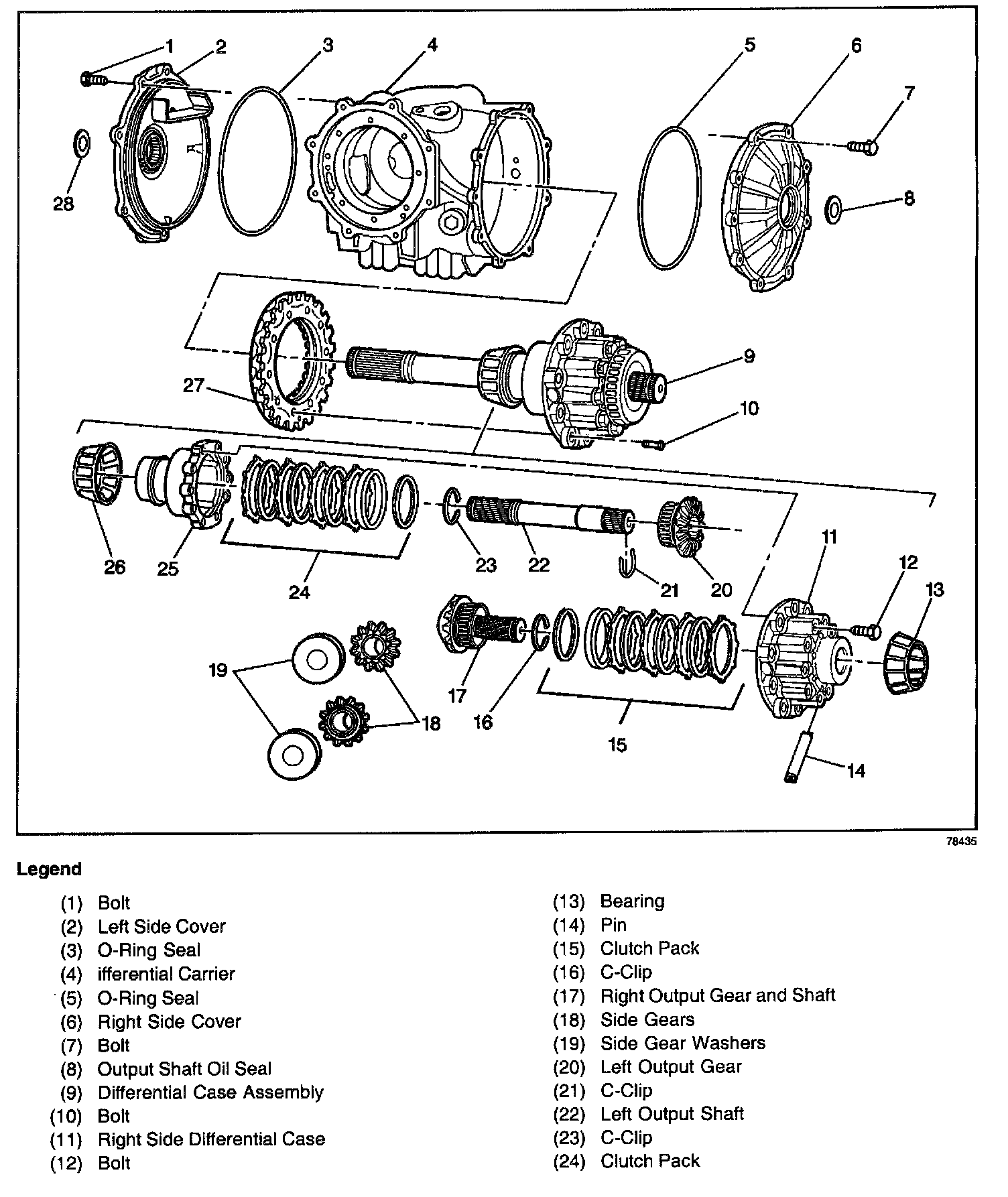

Differential Assembly
Differential Assembly
Differential Carrier
and Case Assembly
Drive Pinion Assembly
