Home >> Chevrolet >> 1999 >> Corvette V8-5.7L VIN G >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Seats >> Power Seats >> Power, Ground and DLC

Power, Ground and DLC

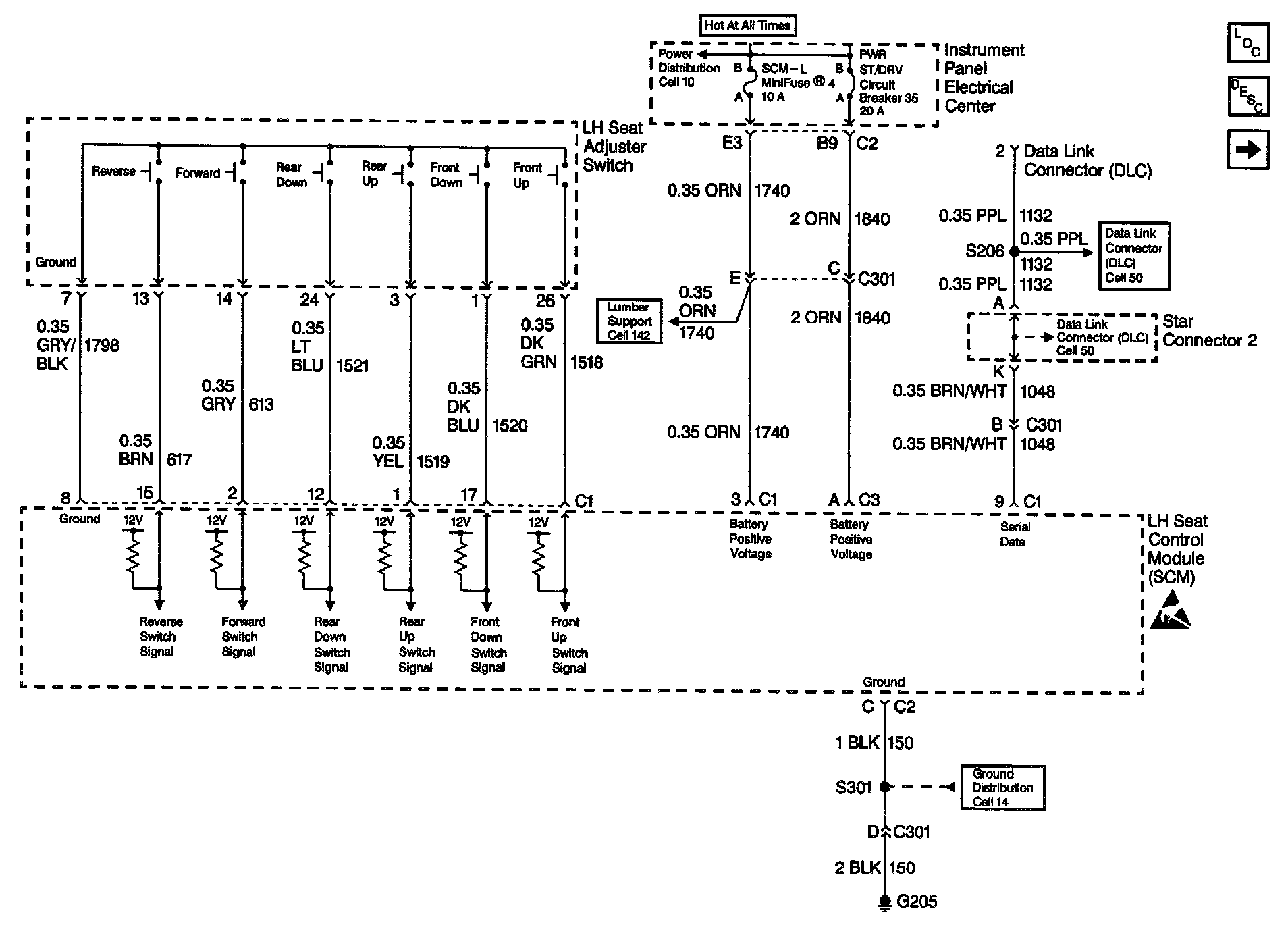

Memory Seats Schematics: Power, Ground And DLC:
