Keyless Entry
>>
RH Door Control Module
RH Door Control Module

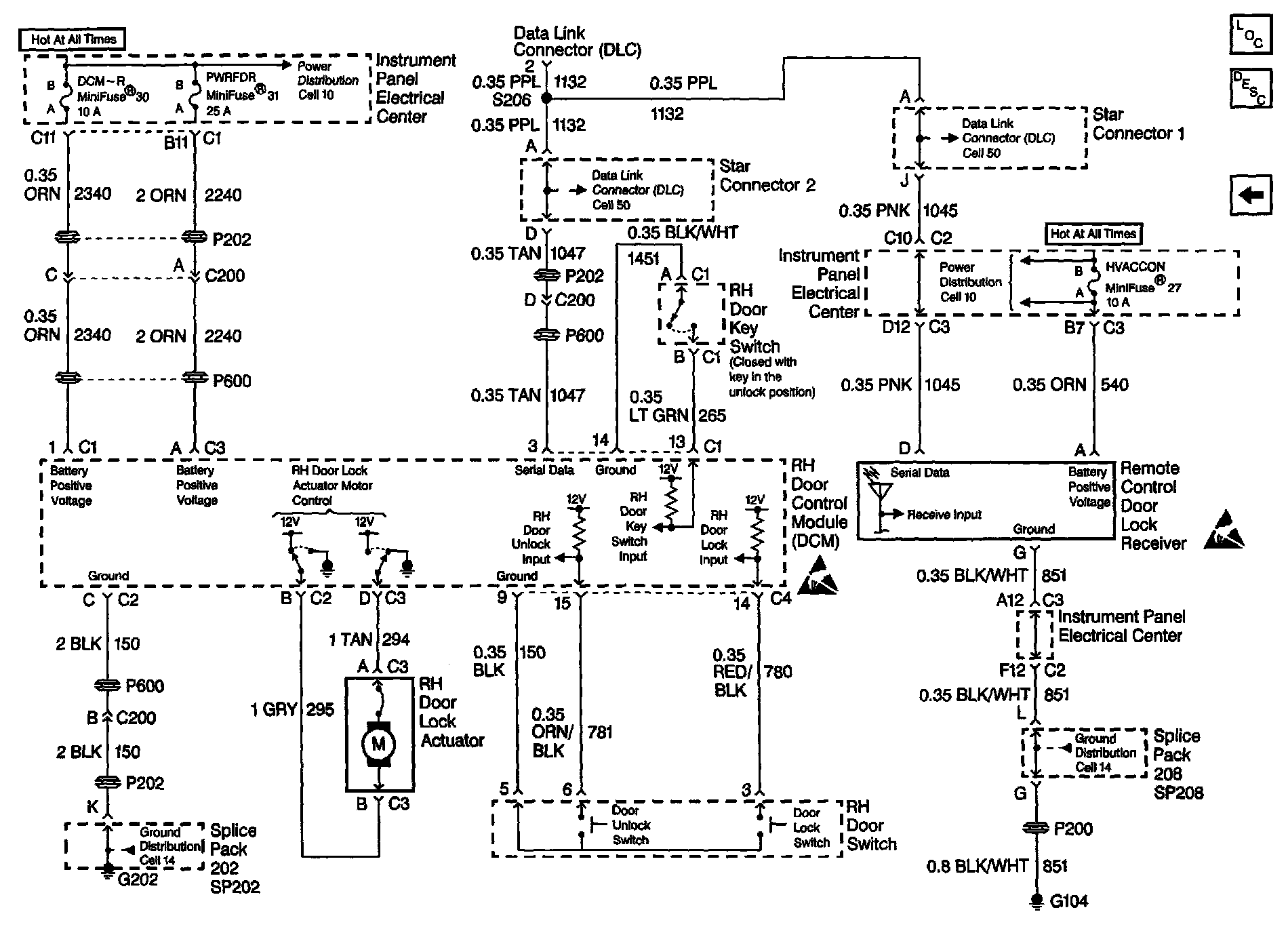

Keyless Entry Schematics: RH Door Control Module:
