Chevrolet
>>
1999
>>
Corvette V8-5.7L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Keyless Entry
>>
LH Door Control Module
LH Door Control Module

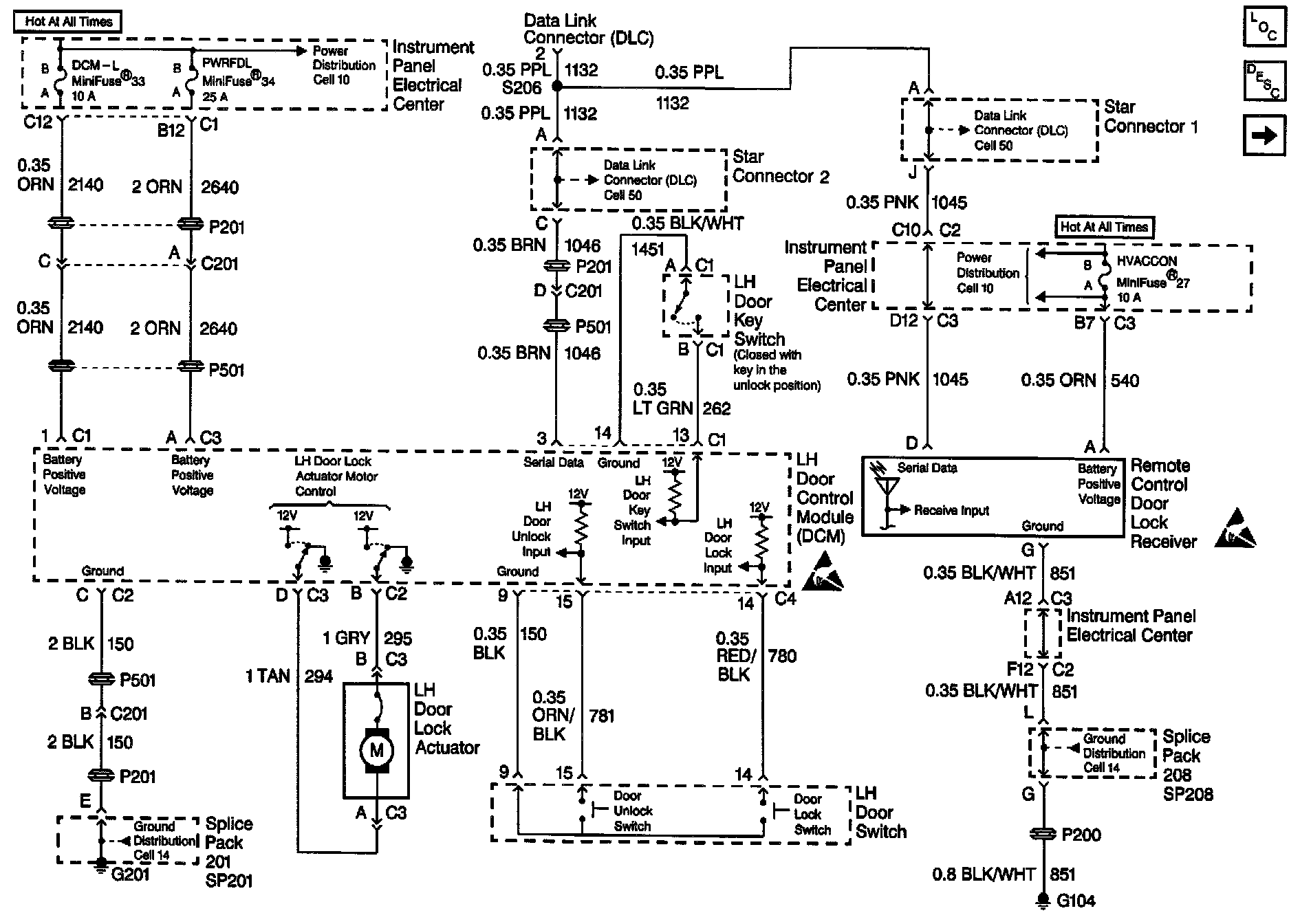

Keyless Entry Schematics: LH Door Control Module:
