Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
>>
Instrument Cluster Analog Schematics
>>
Miscellaneous Switch Inputs
Miscellaneous Switch Inputs

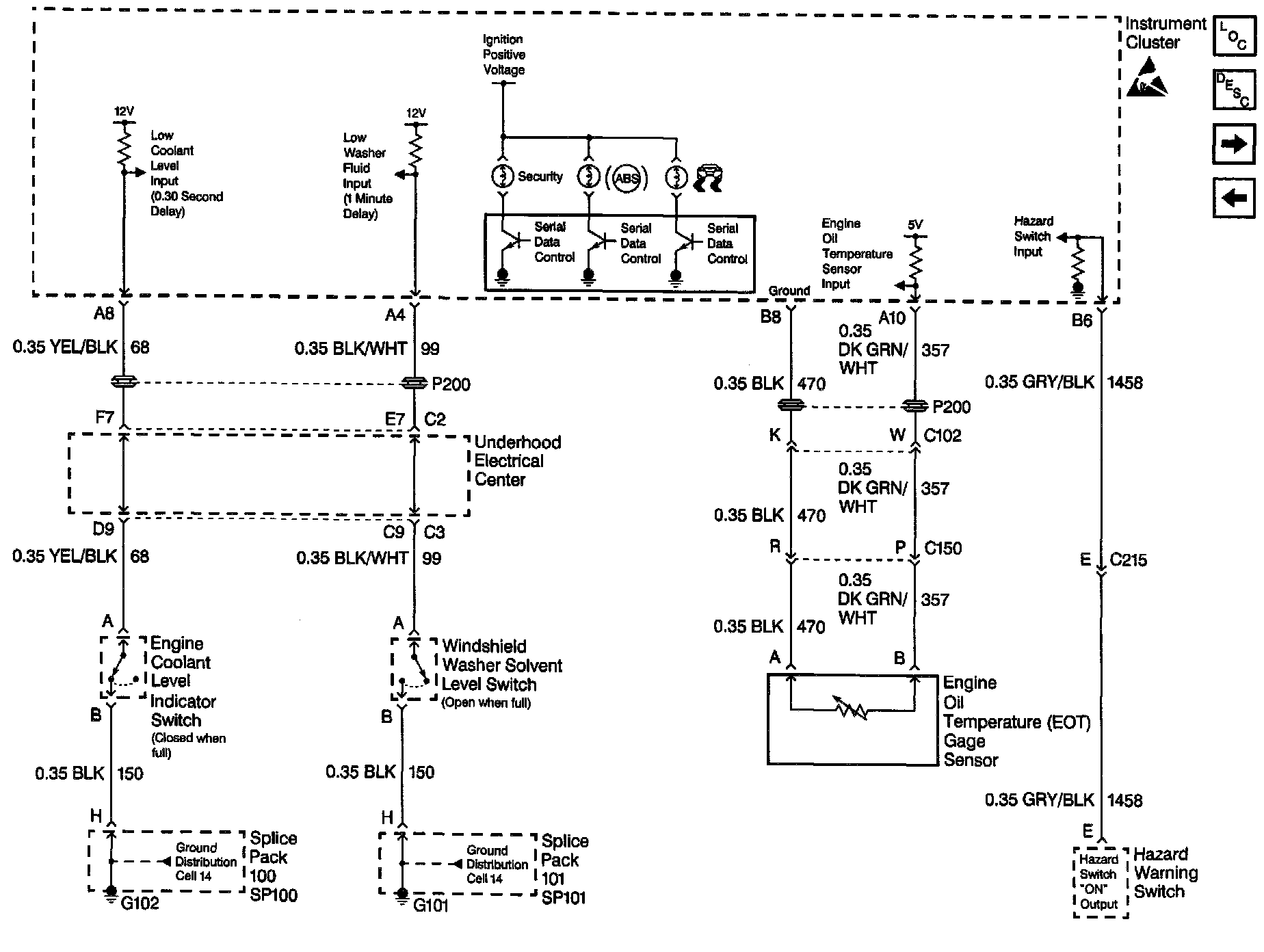

Instrument Cluster: Analog Schematics: Miscellaneous Switch Inputs:
