Antitheft and Alarm Systems
>>
RH Door Ajar Input
RH Door Ajar Input

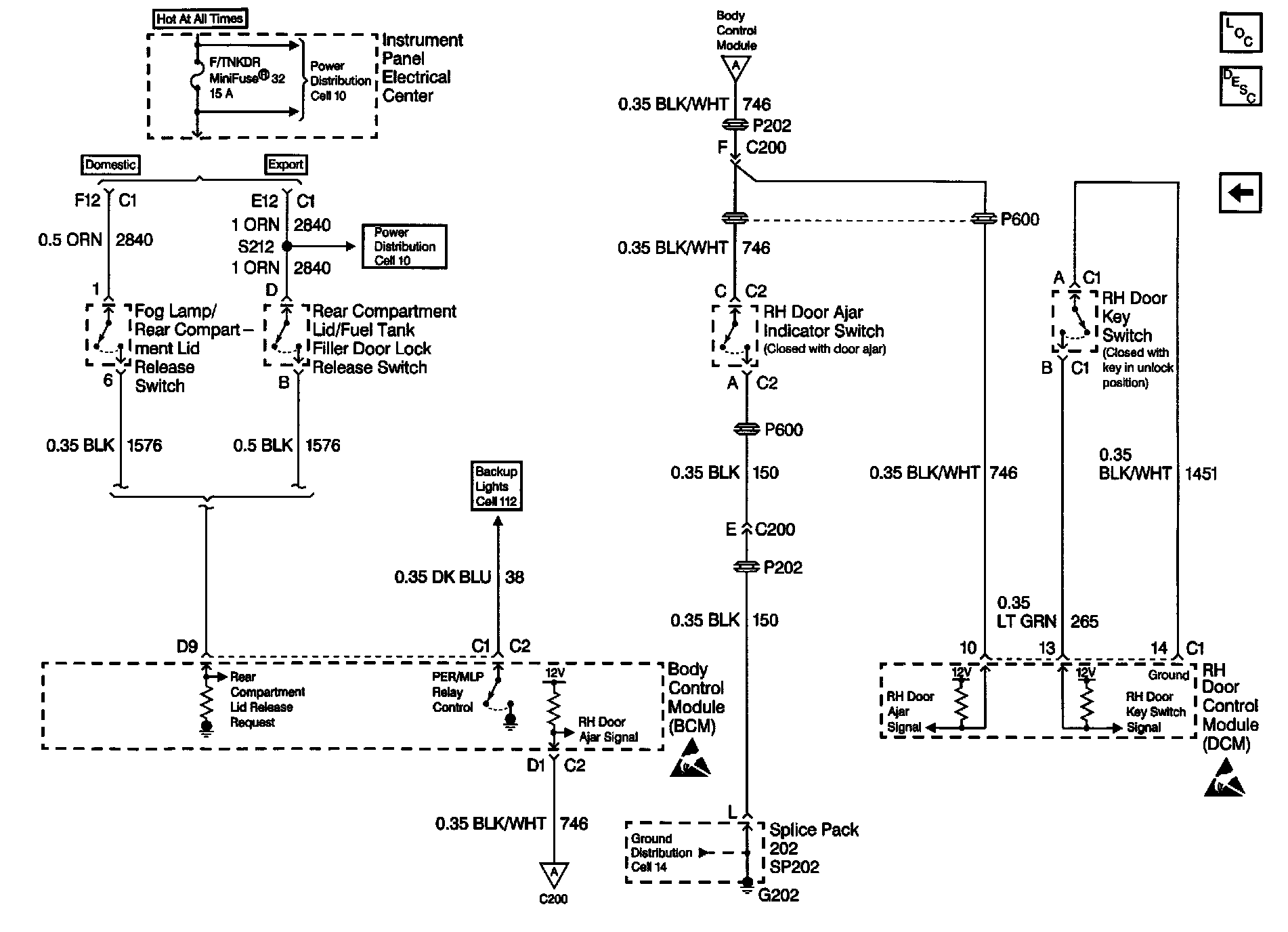

Theft Deterrent Schematics: RH Door Ajar Input:
