Home >> Chevrolet >> 1999 >> Corvette V8-5.7L VIN G >> Repair and Diagnosis >> Diagrams >> Connector Views >> Trunk / Liftgate Latch >> Rear Compartment Lid Latch (Hardtop and Convertable) >> C2

C2

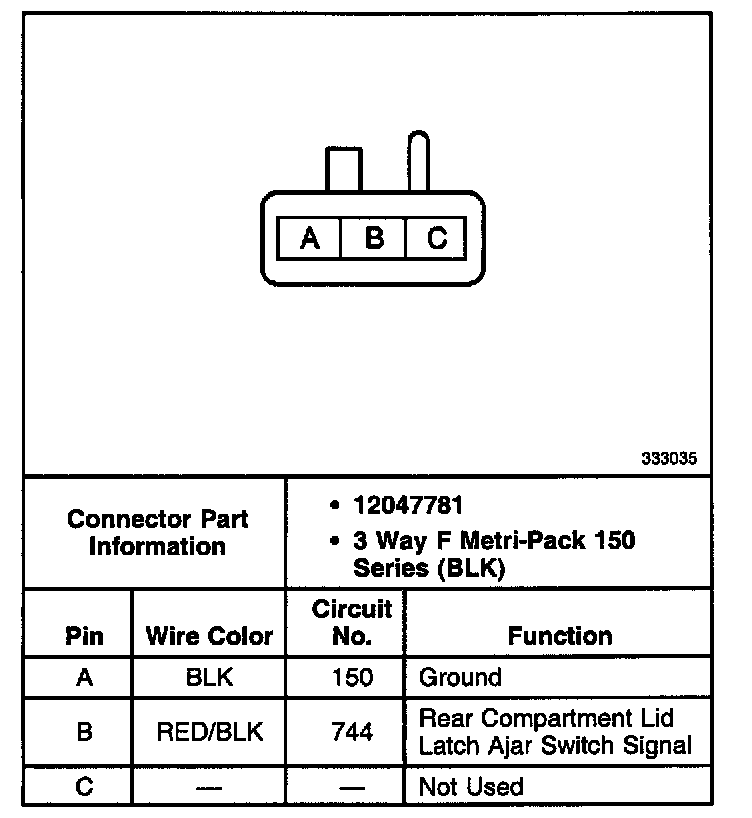

Rear Compartment Lid Latch - C2 (Hardtop And Convertable):
