Home >> Chevrolet >> 1999 >> Corvette V8-5.7L VIN G >> Repair and Diagnosis >> Diagrams >> Connector Views >> Trunk / Liftgate Latch >> Rear Compartment Lid Latch (Coupe) >> Left Hand Side >> LH - C2

LH - C2

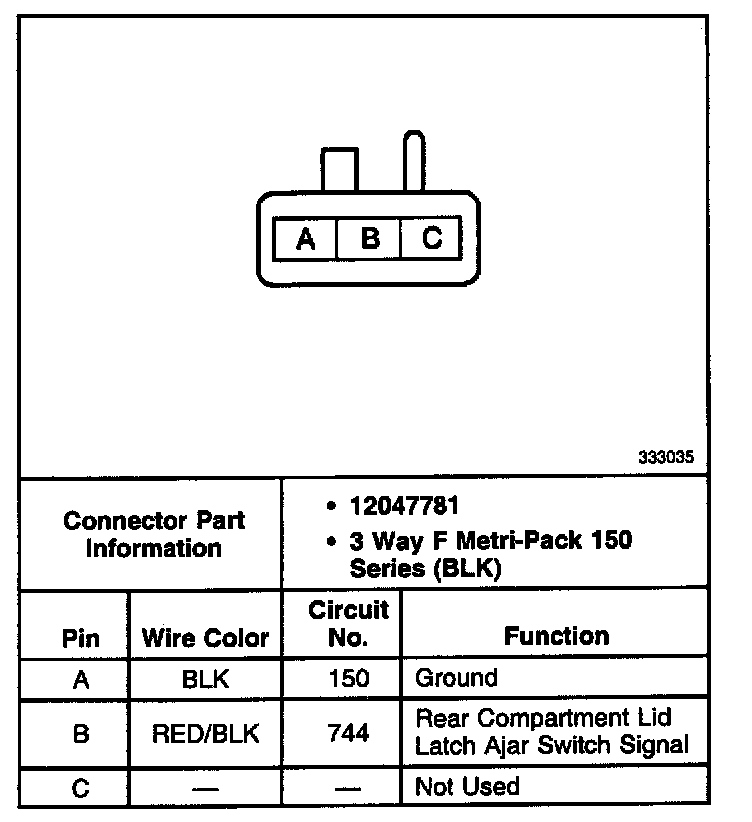

LH Rear Compartment Lid Latch - C2 (Coupe):
