Corvette V8-5.7L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seats
>>
Power Seat Relay
>>

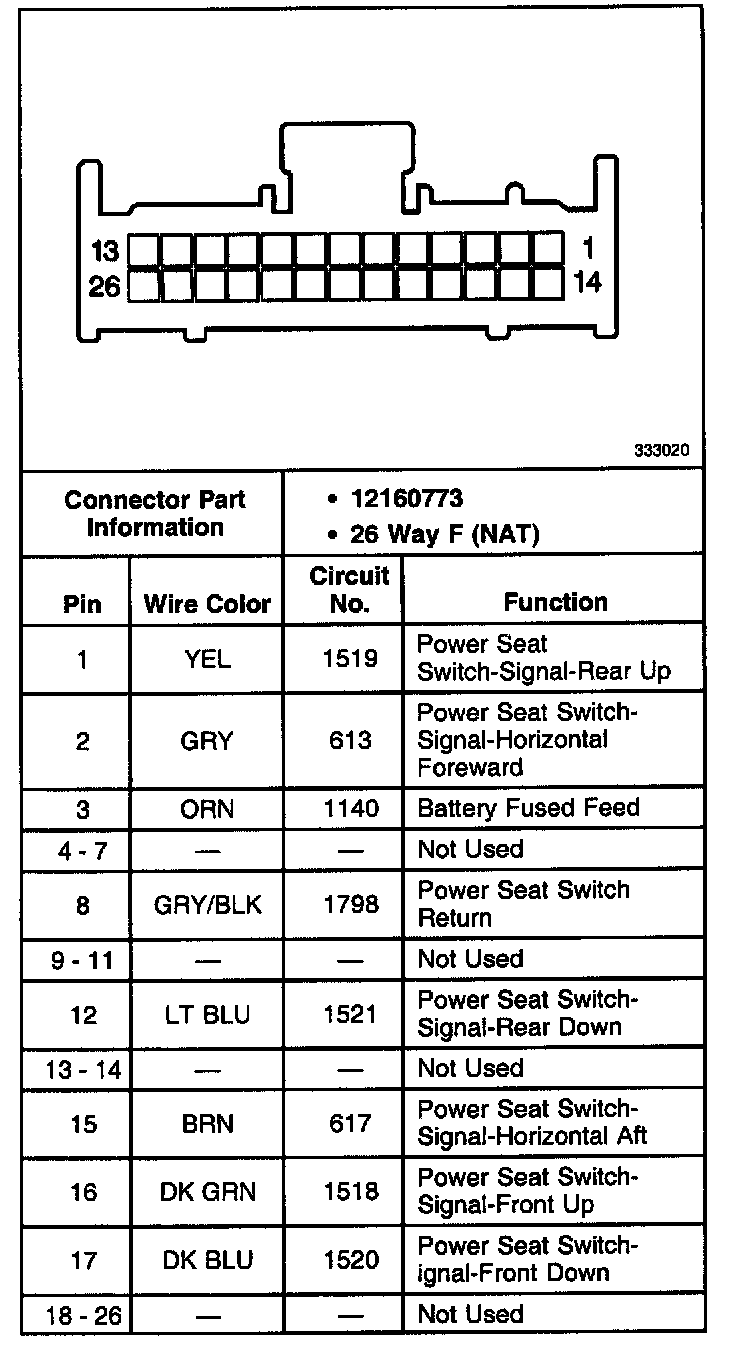

Seat Relay Center, RH - C1
Seat Relay Center, RH - C1
RH Seat Relay Center - C1:
