Corvette V8-5.7L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seats
>>
Power Seat Relay
>>
Seat Relay Center, LH - C2
Seat Relay Center, LH - C2

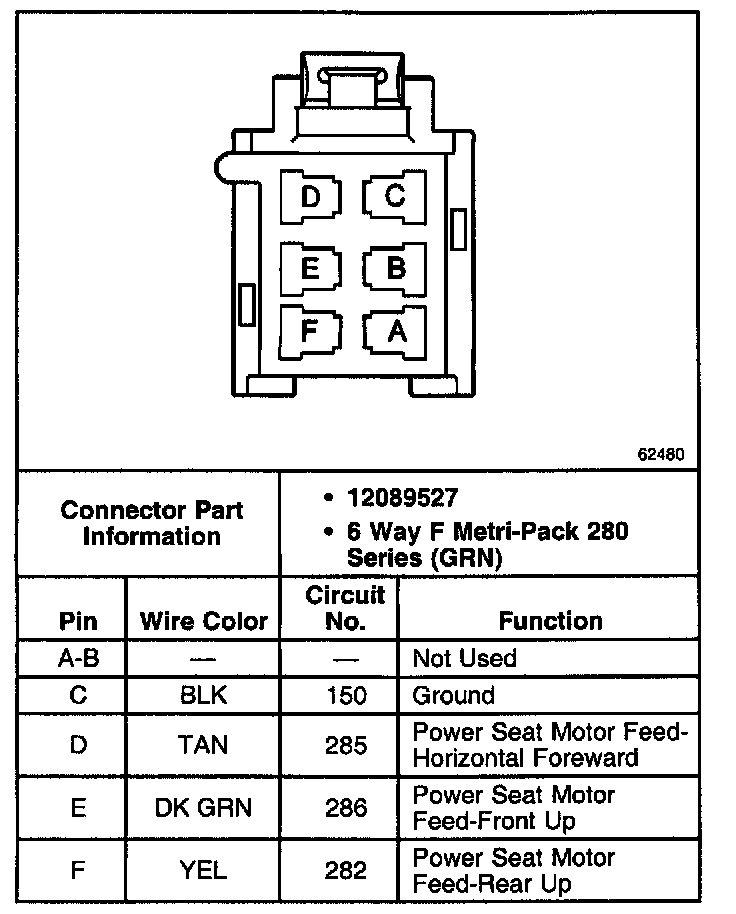

LH Seat Relay Center - C2:
