Home
>>
Chevrolet
>>
1999
>>
Corvette V8-5.7L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seats
>>
Power Seat Relay
>>
Seat Relay Center, LH - C1
Seat Relay Center, LH - C1

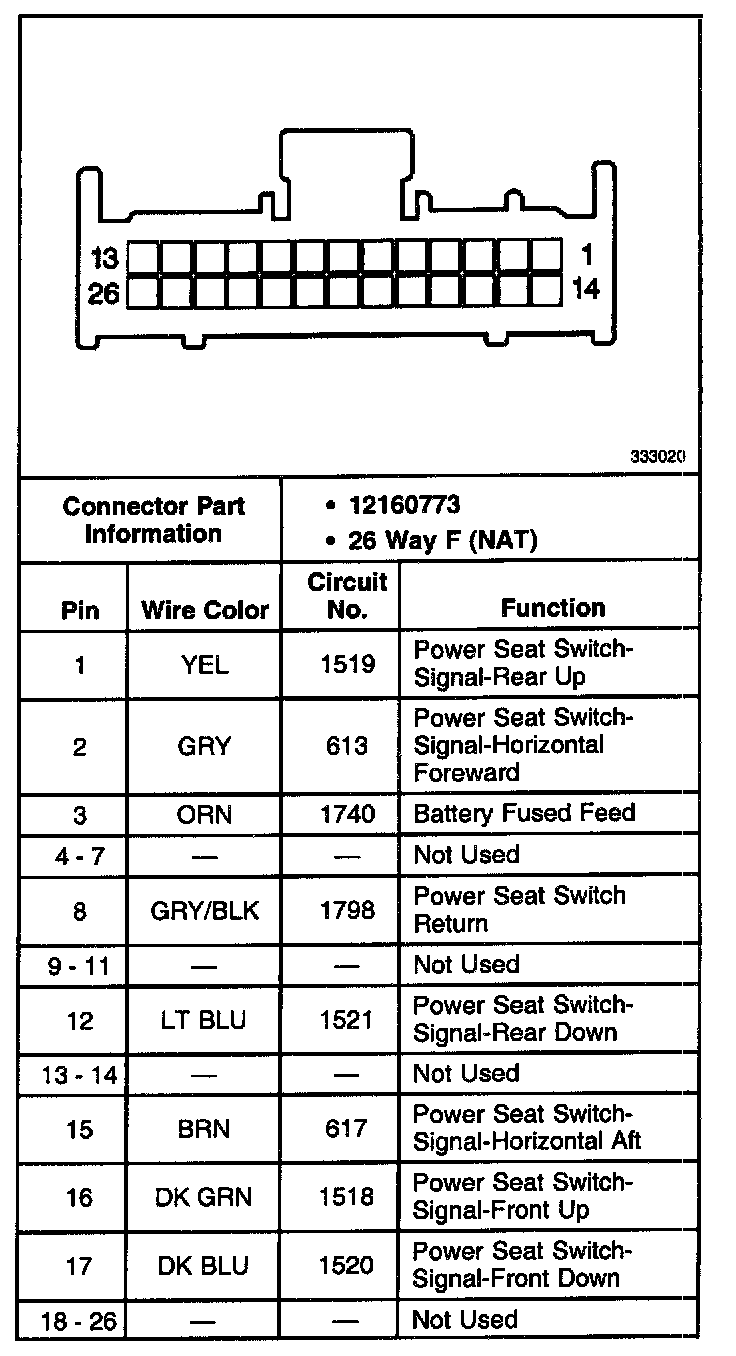

LH Seat Relay Center - C1:
