Chevrolet
>>
1999
>>
Corvette V8-5.7L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Oxygen Sensor
>>
Bank 2 Sensor 1
Bank 2 Sensor 1

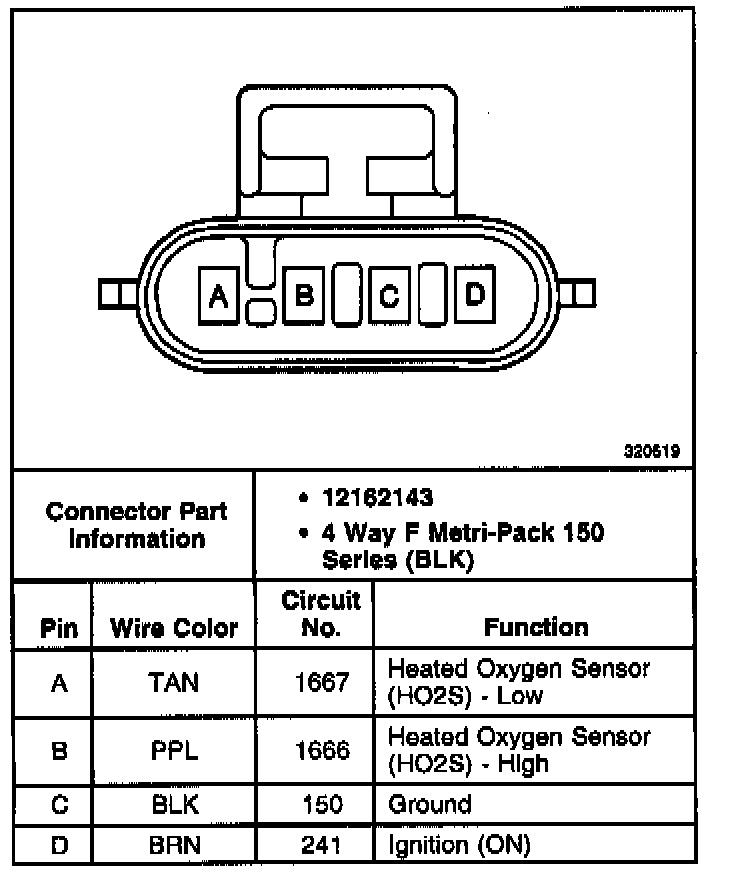

RF Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1:
