Headlamp
>>
Headlamp Opening Door Assembly, LH
Headlamp Opening Door Assembly, LH

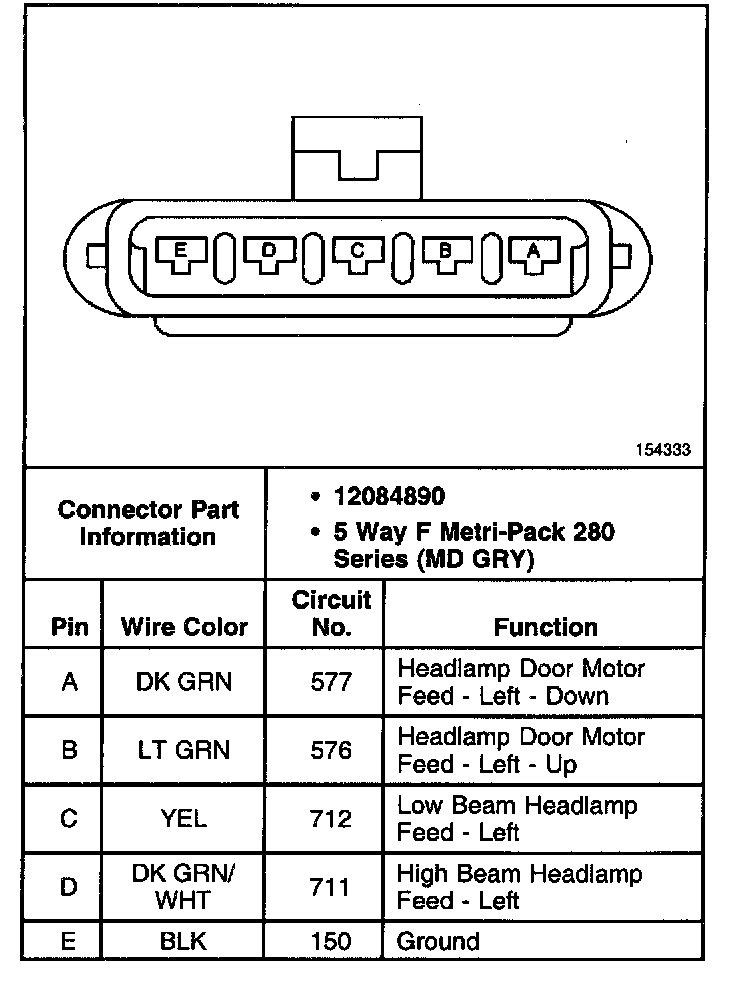

LH Headlamp Opening Door Assembly:
