Radio Replacement

REMOVAL PROCEDURE



1. Remove the front floor kick-up panel.
2. Remove the cover from the I/P electrical center.
3. Remove the RDO/CD MiniFuse(R) #5 from the I/P electrical center.
4. Remove the console.
5. Remove the I/P accessory trim plate.

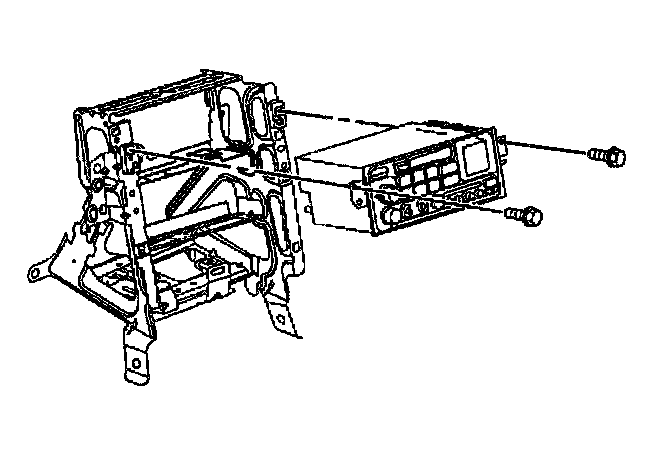

6. Remove the screws retaining the radio control to the I/P center support bracket.
7. Begin to remove the radio control from the center support bracket enough to access the connectors at rear of the radio control.

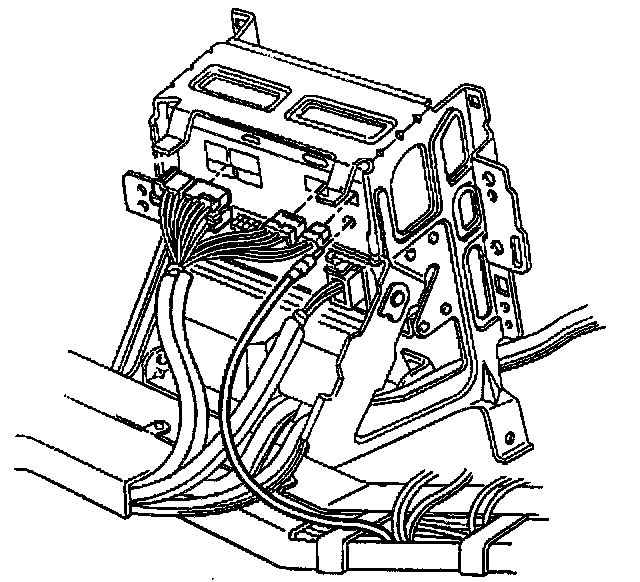

8. Disconnect the electrical/audio and coaxial cable connectors from the radio control.




9. Remove the radio control.

INSTALLATION PROCEDURE



1. Connect the electrical/audio and coaxial cable connectors to the radio control.

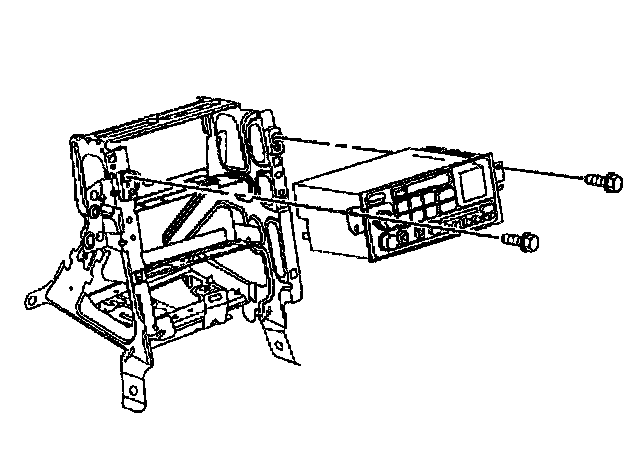

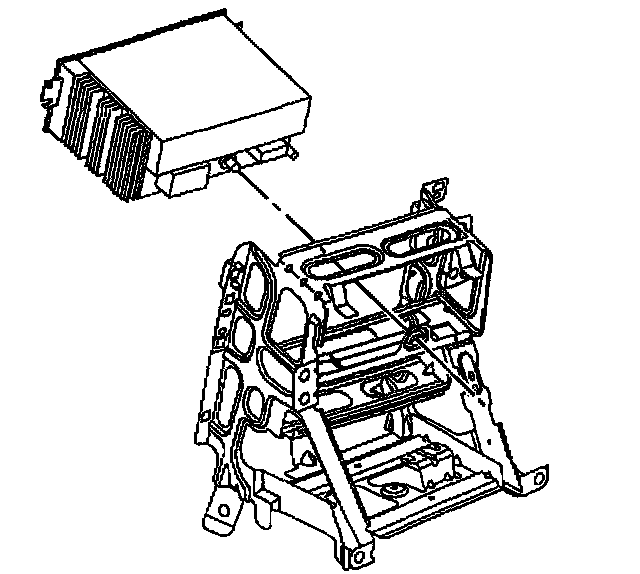

2. Install the radio control into position in the I/P center support bracket.

Align the radio control locator tab into the center support bracket locator hole.

NOTE: Refer to Fastener Notice in Cautions and Notices.




3. Install the radio control retaining screws.

Tighten
Tighten the radio control retaining screws to 2.5 N.m (22 lb in).

4. Install the I/P accessory trim plate.
5. Install the console.
6. Install the RDO/CD MiniFuse(R) #5 to the I/P electrical center.
7. Install the cover to the I/P electrical center.
8. Install the front floor kick-up panel.
