P1652

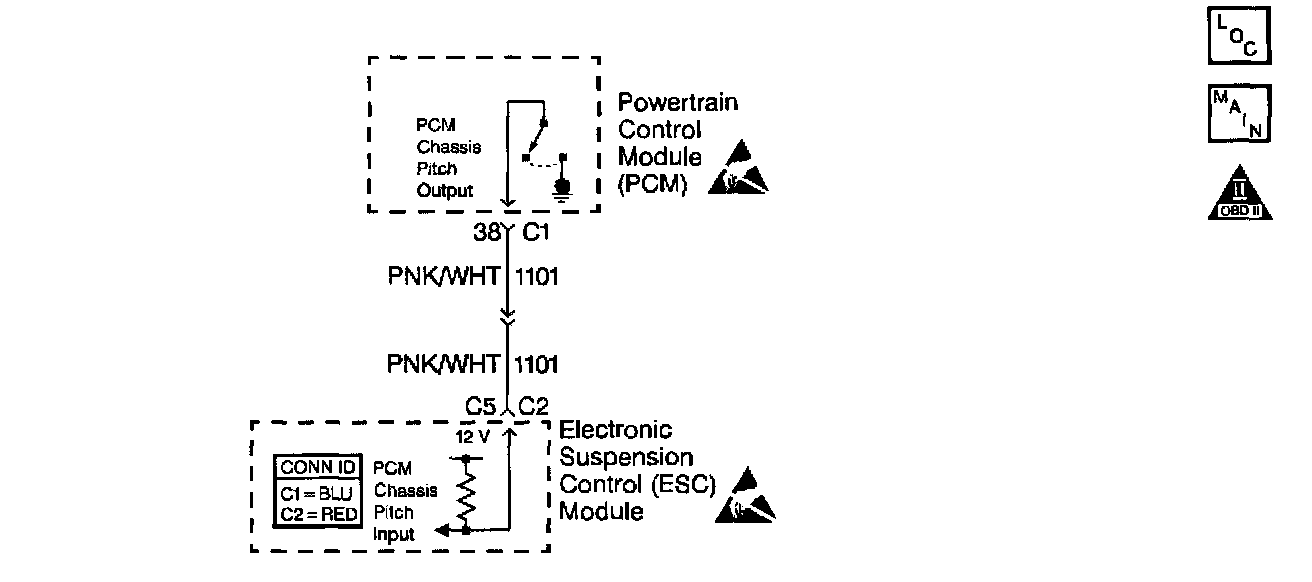

Circuit Description
The PCM controls the Powertrain Induced Chassis Pitch by grounding the control circuit via an internal switch called a driver. The primary function of the driver is to supply the ground for the controlled component. The driver has a fault line which is monitored by the PCM. When the PCM commands a component ON, the voltage of the control circuit should be low (near 0 volts). When the PCM commands the control circuit to a component OFF, the voltage potential should be high (near battery voltage). If the fault detection circuit senses a voltage other than what the system expects, the fault line status changes causing the DTC to set.
The PCM receives an ignition voltage feed from the Electronic Suspension Control module on the Powertrain Induced Chassis Pitch circuit. The PCM grounds this circuit when the vehicle accelerates rapidly or brakes hard. When the chassis pitch input circuit goes tow (about 0 volts), the ESC module commands all four shock absorber solenoids to a firm position. The PCM calculates the chassis pitch information based on the engine torque and the vehicle braking force.

Conditions for Running the DTC
^ Engine speed greater than 400 RPM.
^ The system voltage is greater than 6 volts but less than 18 volts.

Conditions for Setting the DTC
^ The PCM detects that the commanded state of the driver and the actual state of the control circuit do not match.
^ The condition must exist for a minimum of 5.0 seconds.

Action Taken When the DTC Sets
^ The PCM stores the DTC information into memory when the diagnostic runs and fails.
^ The Malfunction Indicator Lamp (MIL) will not illuminate.
^ The PCM records the operating conditions at the time the diagnostic fails. The PCM stores this information in the Failure Records.

Conditions for Clearing the MIL/DTC
^ A History DTC will clear after forty consecutive warm-up cycles, if no failures are reported by this or any other non-emission related diagnostic.
^ A last test failed (Current DTC) will clear when the diagnostic runs and does not fail.
^ Use a scan tool in order to clear the MIL/DTC.

Diagnostic Aids

Important:
^ Remove any debris from the PCM/TAC module connector surfaces before servicing the PCM/TAC module. Inspect the PCM/TAC module connector gaskets when diagnosing/replacing the modules. Ensure that the gaskets are installed correctly. The gaskets prevent contaminate intrusion into the PCM/TAC modules.
^ For any test that requires probing the PCM or a component harness connector, use the Connector Test Adapter Kit J 35616-A. Using this kit prevents damage to the harness/component terminals.
^ Ensure that the vehicle is equipped with Electronic Suspension Control (ESC). This DTC sets when the BCM is programmed if the RPO for the Electronic Suspension Control (ESC) is selected as active and the vehicle is not equipped with Electronic Suspension Control (ESC).
^ Using the Freeze Frame and/or Failure Records data may aid in locating an intermittent condition. If you cannot duplicate the DTC, the information included in the Freeze Frame and/or Failure Records data can help determine how many miles since the DTC set. The Fail Counter and Pass Counter can also help determine how many ignition cycles the diagnostic reported a pass and/or a fail. Operate vehicle within the same freeze frame conditions (RPM, load, vehicle speed, temperature etc.) that you observed. This will isolate when the DTC failed.
^ The following may cause an intermittent:
- Poor connections
- Corrosion
- Mis-routed harness
- Rubbed through wire insulation
- Broken wire inside the insulation
^ For an intermittent condition, refer to Symptoms. Symptom Related Diagnostic Procedures

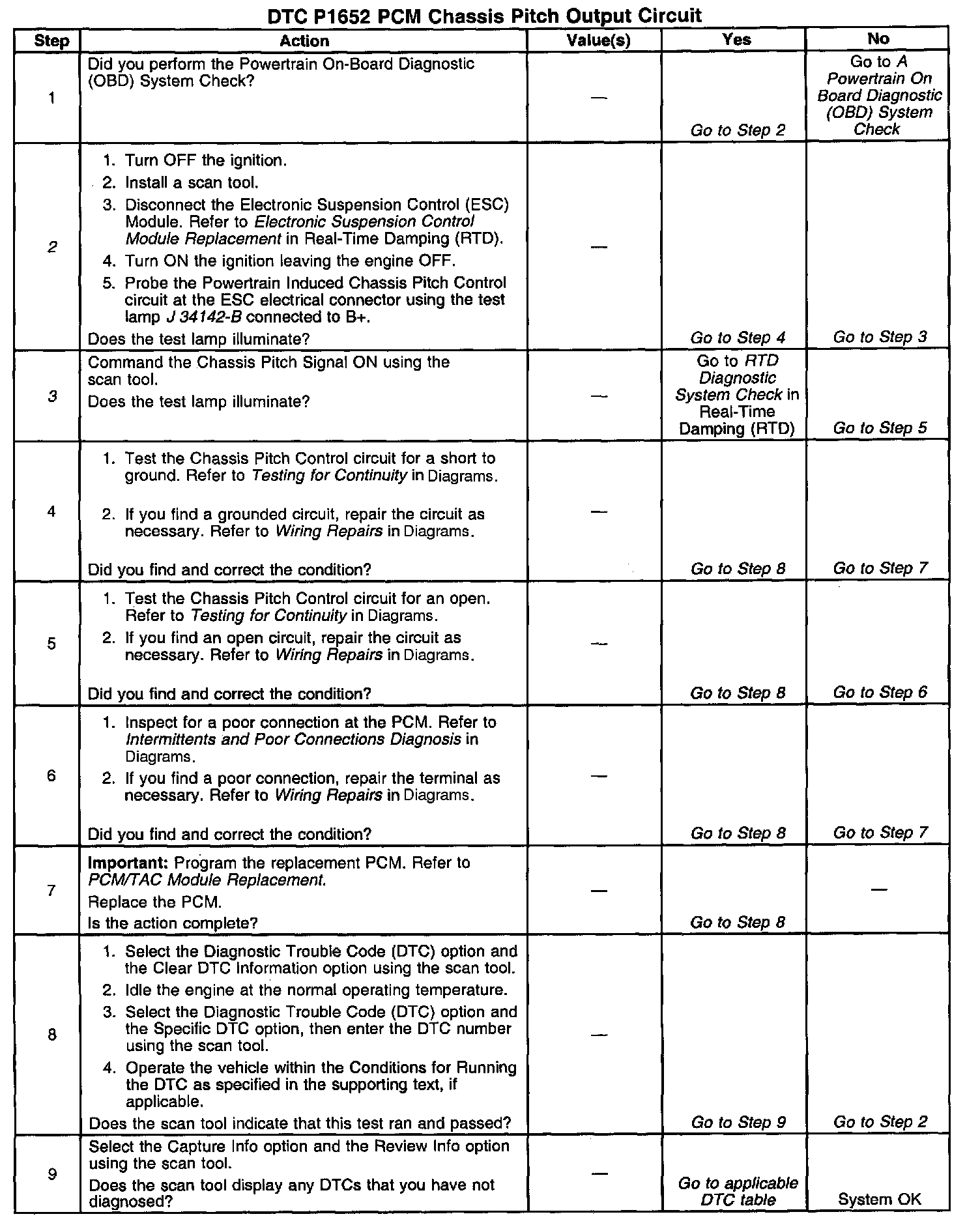

Test Description
The numbers below refer to the step numbers on the diagnostic table.
2. This step determines if the Powertrain Induced Chassis Pitch control circuit is shorted to ground.
3. This step determines if the Powertrain Induced Chassis Pitch control circuit is open or, the PCM is unable to control the Powertrain induced Chassis Pitch control circuit.
