P0803

Circuit Description
An ignition voltage is supplied directly to the 2nd and 3rd Gear Block out solenoid coil. The PCM controls the solenoid by grounding the control circuit via an internal switch called a driver. The driver supplies the ground for the component being controlled. Each driver has a fault line which the PCM monitors. When the PCM commands a component ON, the voltage of the control circuit should be low (near 0 volts). When the PCM commands the control circuit to a component OFF, the voltage potential of the circuit should be high, near battery voltage. If the fault detection circuit senses a voltage other than what is expected, the fault line status changes causing the DTC to set.

Conditions for Enabling the 1-4 Upshift Solenoid
^ The vehicle speed is between 24-31 km/h (15-19 mph).
^ The engine coolant temperature is greater than 77°C (171°F).
^ The BARO is greater than 76 kPa.
^ The Accelerator Pedal Position (APP) is less than 26 percent.
^ Once the 1-4 Upshift solenoid is enabled the solenoid will not be re-enabled until the vehicle speed returns to 0 MPH and the conditions for enabling the 1-4 Upshift solenoid are met.

Conditions for Running the DTC
^ The engine speed is greater than 400 RPM.
^ Ignition voltage greater than 6 volts but less than 18 volts.

Conditions for Setting the DTC
^ The PCM detects that the commanded state of the driver and the actual state of the control circuit do not match.
^ All conditions exist for a minimum of 5.0 seconds.

Action Taken When the DTC Sets
^ The PCM illuminates the Malfunction Indicator Lamp on the second consecutive ignition cycle that the diagnostic runs and fails.
^ The PCM records the operating conditions at the time the diagnostic fails. The first time the diagnostic fails, the PCM stores this information in the Failure Records. If the diagnostic reports a failure on the second consecutive ignition cycle, the PCM records the operating conditions at the time of the failure. The PCM writes the conditions to the Freeze Frame and updates the Failure records.

Conditions for Clearing the MIL/DTC
^ A last test failed (current DTC) clears when the diagnostic runs and does not fail.
^ A History DTC clears after forty consecutive warm-up cycles, if this or any other emission related diagnostic does not report any failures.
^ Use a scan tool in order to clear the MIL/DTC.

Diagnostic Aids

Important:
^ Remove any debris from the PCM/TAC module connector surfaces before servicing the PCM/TAC module. Inspect the PCM/TAC module connector gaskets when diagnosing/replacing the modules. Ensure that the gaskets are installed correctly. The gaskets prevent contaminate intrusion into the PCM/TAC modules.
^ For any test that requires probing the PCM or a component harness connector, use the Connector Test Adapter Kit J 35616-A. Using this kit prevents damage to the harness/component terminals.
^ Using Freeze Frame and/or Failure Records data may aid in locating an intermittent condition. If you cannot duplicate the DTC, the information included in the Freeze Frame and/or Failure Records data can aid in determining how many miles since the DTC set. The Fail Counter and Pass Counter can also aid determining how many ignition cycles the diagnostic reported a pass and/or a fail. Operate the vehicle within the same freeze frame conditions (RPM, load, vehicle speed, temperature etc.) that you observed. This will isolate when the DTC failed.
^ For an intermittent, refer to Symptoms. Symptom Related Diagnostic Procedures

Test Description

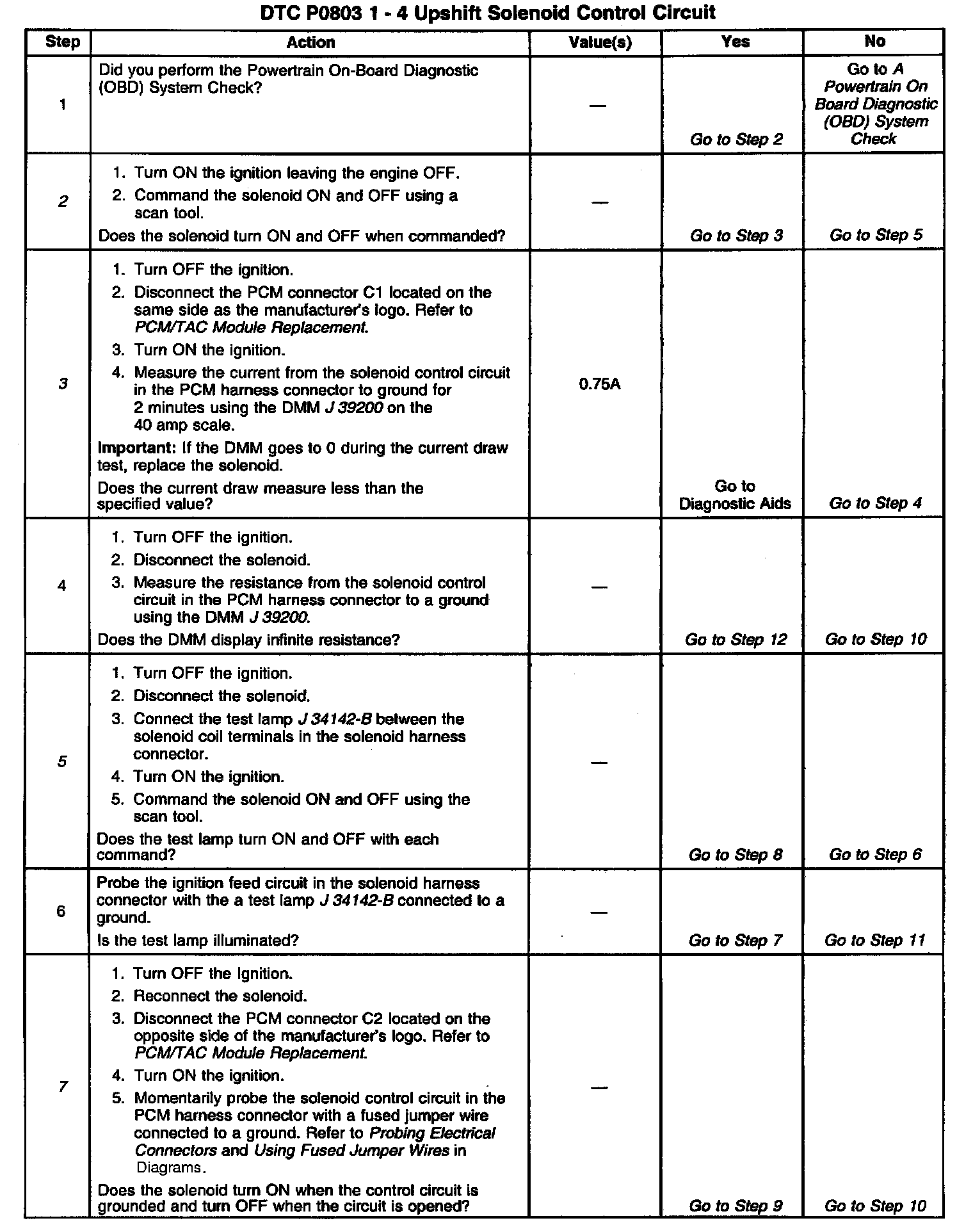

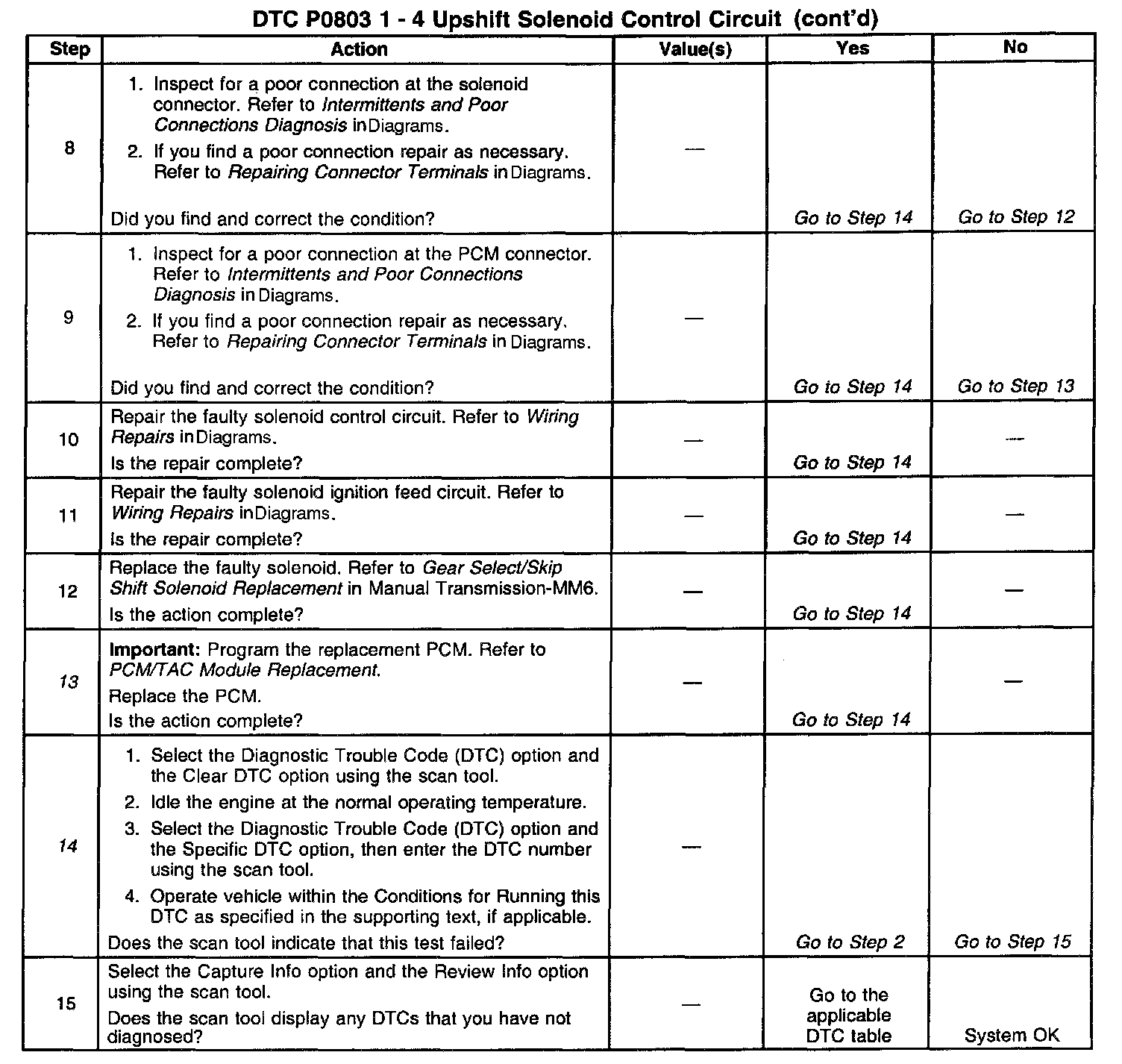

The numbers below refer to the step numbers on the diagnostic table.
2. Listen for an audible click when the solenoid operates. Command both the ON and the OFF states. Repeat the commands as necessary.
3. This test detects a partially shorted coil which would cause excessive current flow. Leaving the circuit energized for 2 minutes allows the coil to warm up. When warm the coil may open (Amps drop to 0), or short (goes above 0.75 amp).
5. Identify and test the solenoid coil terminals in order to avoid improper diagnosis.
7. Listen for an audible click when the solenoid operates. Ground the circuit as necessary.
13. If you do not find any trouble in the control circuit or the connection at the PCM, the PCM may be faulty. However, this is an extremely unlikely failure.
14. This DTC will not report a pass. The scan tool status for this DTC will never report a pass. The scan tool will only display when the diagnostic fails. The repair is not complete if the scan tool indicates that the diagnostic ran and failed.
