P0645

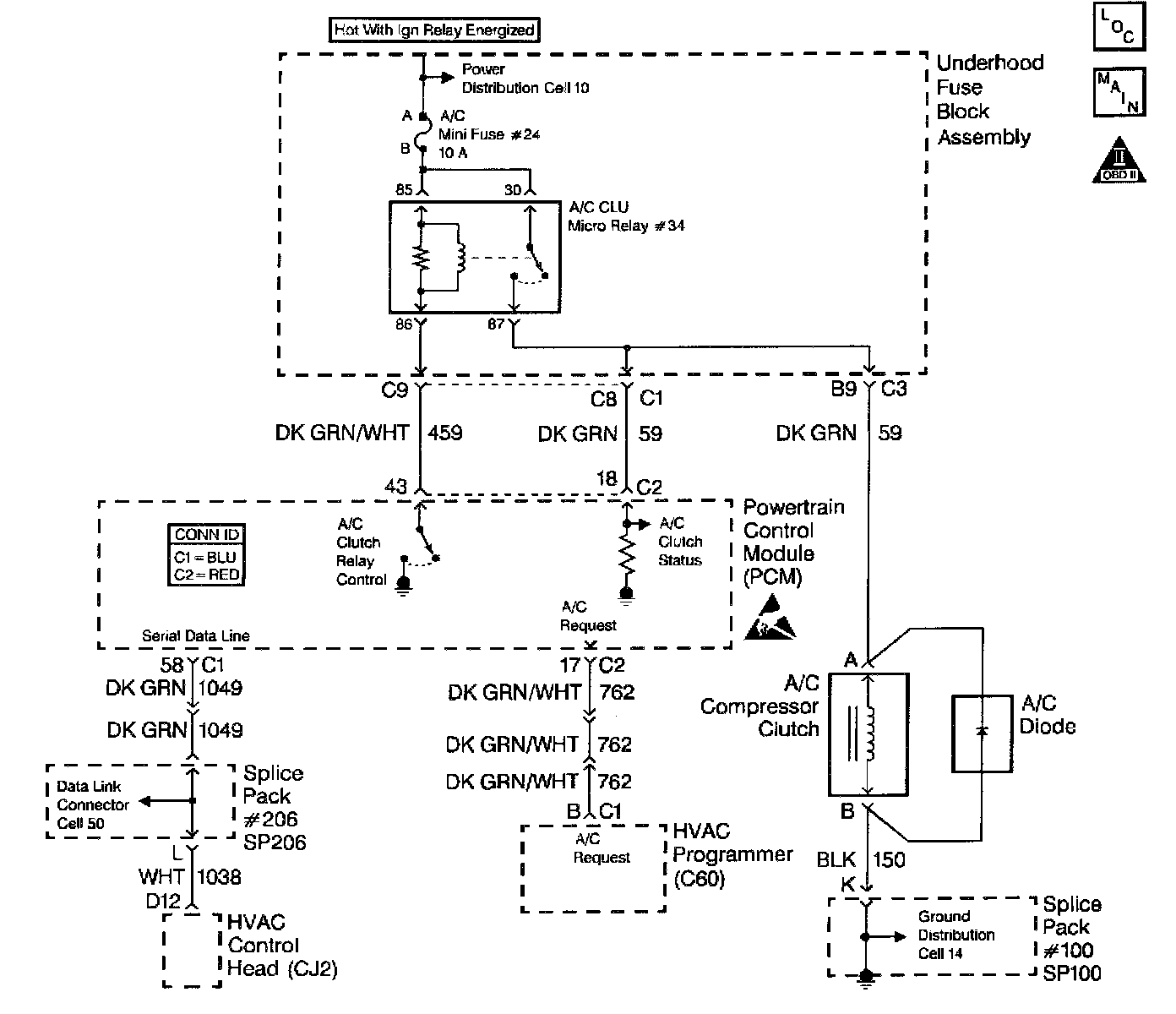

Circuit Description
A voltage is supplied directly to the A/C compressor clutch relay coil. The PCM controls the relay by grounding the control circuit via an internal switch called a driver. The primary function of the driver is to supply the ground for the controlled component. Each driver has a fault line which the PCM monitors. When the PCM commands a component ON, the voltage of the control circuit should be low (near 0 volts). When the PCM is commanding the control circuit to a component OFF, the voltage potential of the circuit should be high (near battery voltage). If the fault detection circuit senses a voltage other than what the circuit expects, the fault line status changes causing the DTC to set.

Conditions for Setting the DTC
^ The engine speed is greater than 400 RPM.
^ The ignition voltage is greater than 6 volts but less than 18 volts.

Conditions for Running the DTC
^ The PCM detects that the commanded state of the driver and the actual state of the control circuit do not match.
^ Condition must exist for a minimum of 5.0 seconds.

Action Taken When the DTC Sets
^ The PCM stores the DTC information into memory when the diagnostic runs and fails.
^ The Malfunction Indicator Lamp (MIL) will not illuminate.
^ The PCM disables the A/C.
^ The PCM records the operating conditions at the time the diagnostic fails. The PCM stores this information in the Failure Records.

Conditions for Clearing the MIL/DTC
^ A last test failed (current DTC) clears when the diagnostic runs and does not fail.
^ A History DTC clears after forty consecutive warm-up cycles, if this or any other emission related diagnostic does not report any failures.
^ Use a scan tool in order to clear the MIL/DTC.

Diagnostic Aids

Important:
^ Remove any debris from the PCM/TAC module connector surfaces before servicing the PCM/TAC module. Inspect the PCM/TAC module connector gaskets when diagnosing/replacing the modules. Ensure that the gaskets are installed correctly. The gaskets prevent contaminate intrusion into the PCM/TAC modules.
^ For any test that requires probing the PCM or a component harness connector, use the Connector Test Adapter Kit J 35616-A. Using this kit prevents damage to the harness/component terminals.
^ If the A/C minifuse is open, inspect for a short to ground on the A/C Compressor Clutch circuit and/or the A/C Clutch status circuit.
^ Using the Freeze Frame and/or Failure Records data may aid in locating an intermittent condition. If you cannot duplicate the DTC, the information included in the Freeze Frame and/or Failure Records data can help determine how many miles since the DTC set. The Fail Counter and Pass Counter can also help determine how many ignition cycles the diagnostic reported a pass and/or a fail. Operate vehicle within the same freeze frame conditions (RPM, load, vehicle speed, temperature etc.) that you observed. This will isolate when the DTC failed.
^ For an intermittent condition, refer to Symptoms. Symptom Related Diagnostic Procedures

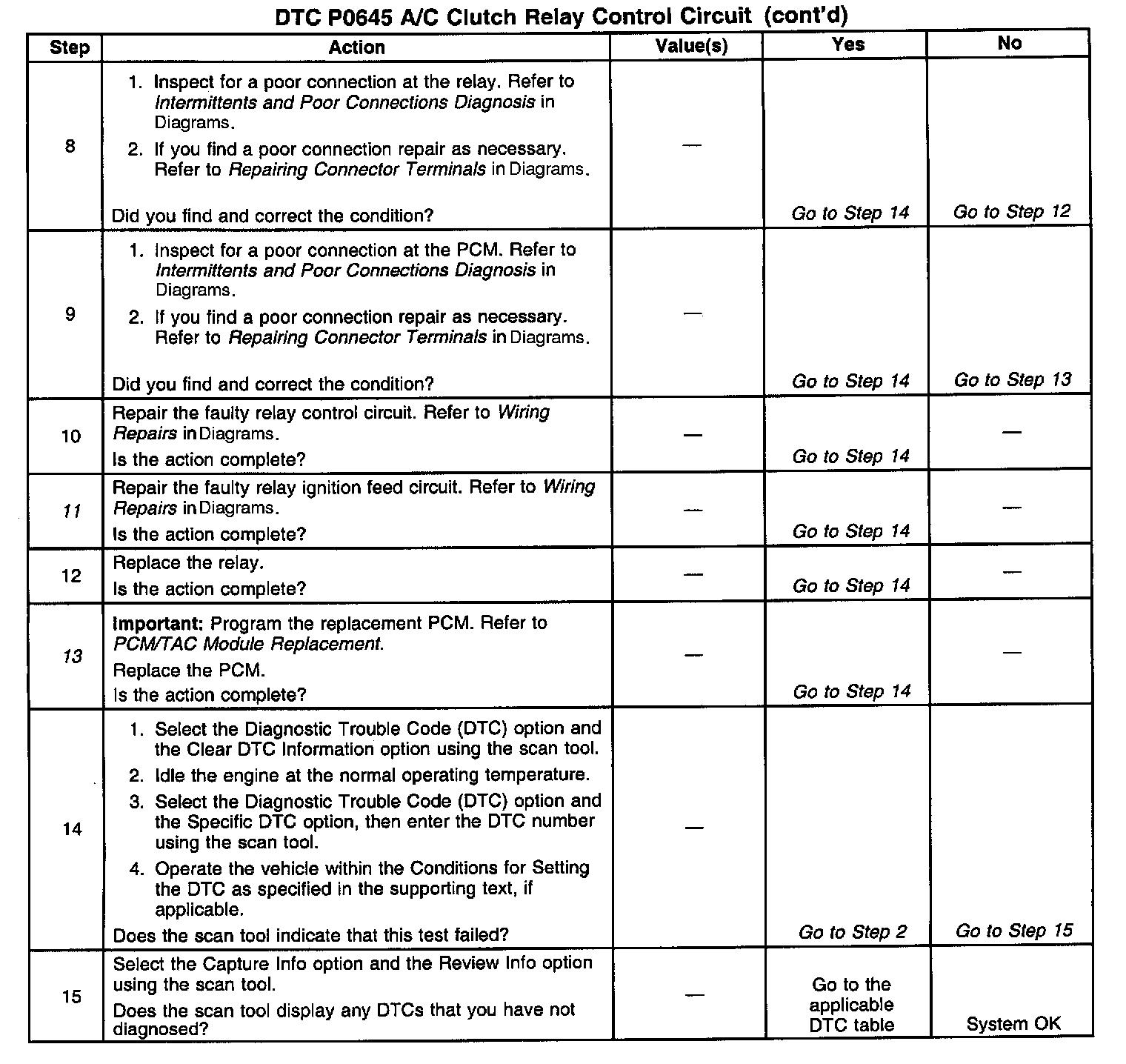

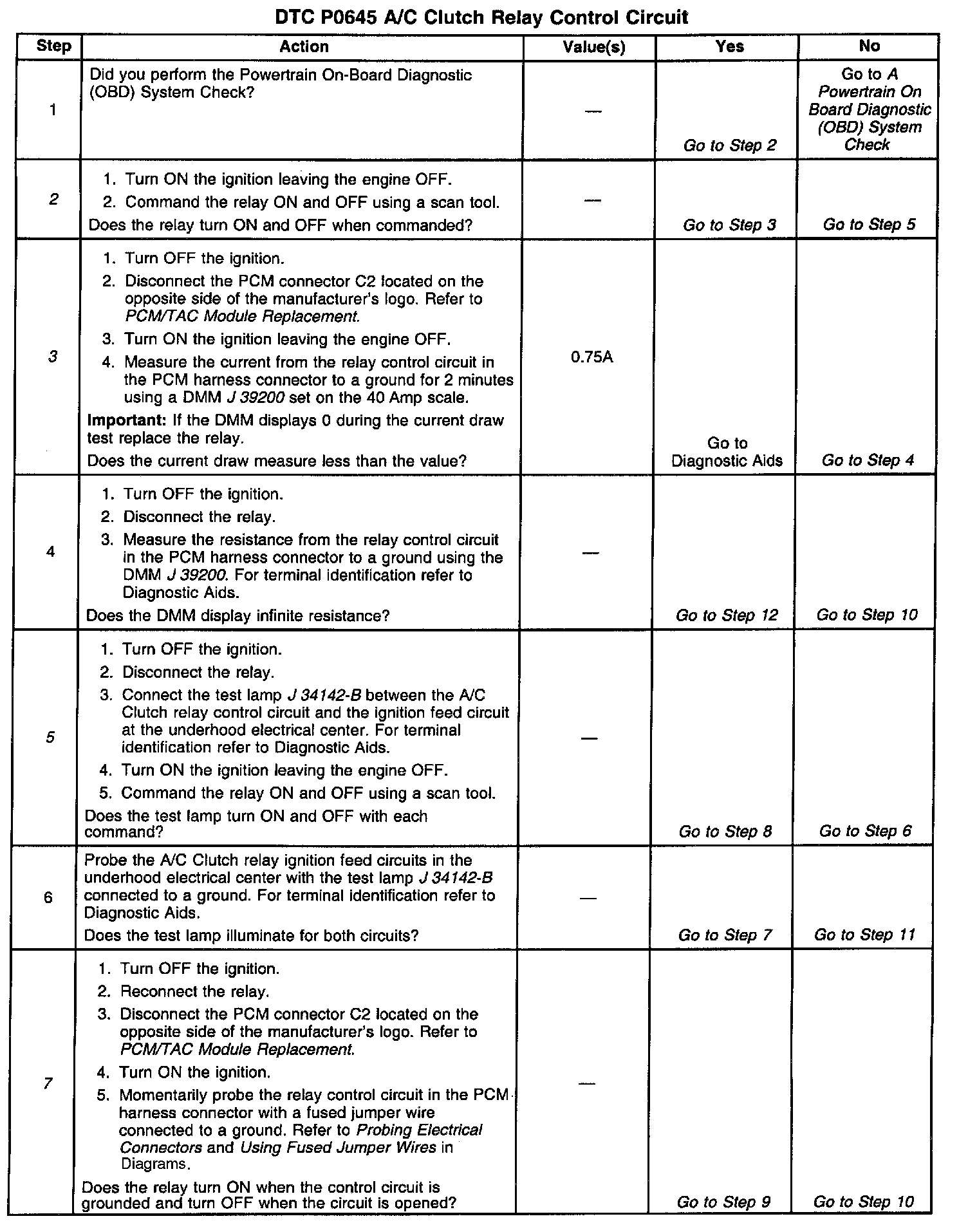

Test Description
The numbers below refer to the step numbers on the diagnostic table.
2. Listen for an audible click when the relay operates. Command both the ON and the OFF states as necessary.
3. Energize the relay for 2 minutes in order to detect excessive current flow. Energizing the relay for 2 minutes warms the relay coil. When the relay is warm the coil may open (the current draw drops to 0), or short (the current goes above 0.75 Amps).
5. It is important to identify and test the relay coil terminals to avoid improper diagnosis.
7. Listen for an audible click when the relay operates. Ground the circuit as necessary.
11. If the fuse is open, inspect the relay load circuit for a short to ground.
13. If no trouble is found in the control circuit or the connection at the PCM, the PCM may be faulty, however, this is an extremely unlikely failure.
