P0522

Circuit Description

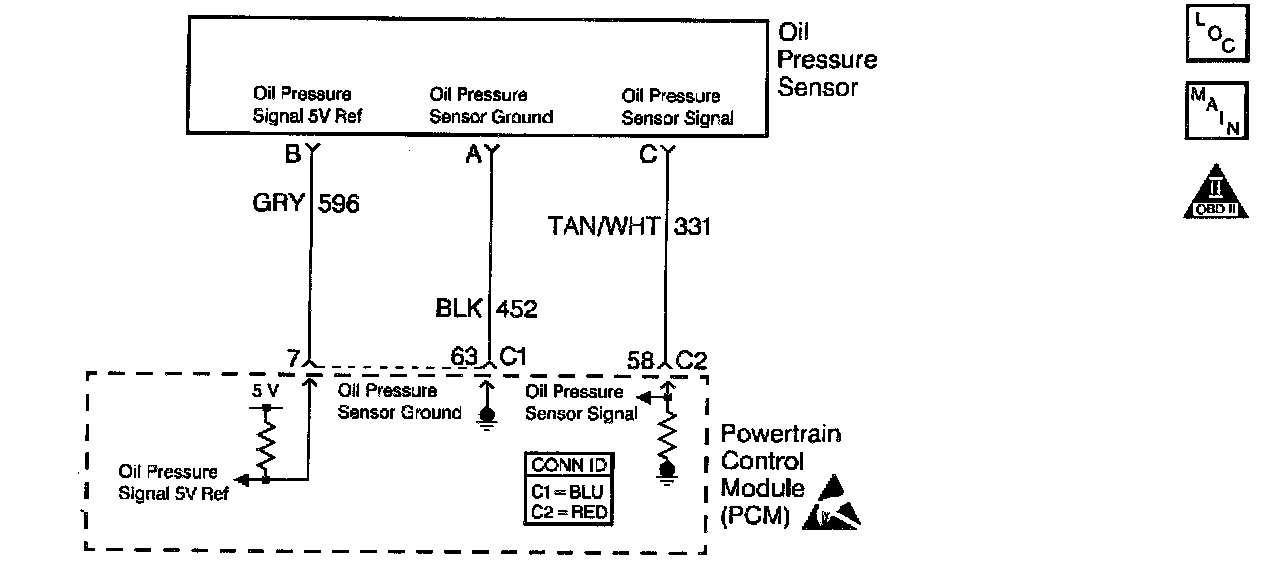

The Engine Oil Pressure sensor is mounted at the top rear of the engine. The Engine Oil Pressure sensor measures changes in engine oil pressure. The Engine Oil Pressure sensor has a 5 volt reference, a ground and a signal circuit.
The Engine Oil Pressure sensor changes resistance based on changes in engine oil pressure. When the PCM senses a signal voltage lower than the normal operating range of the sensor, this DTC sets.

Conditions for Running the DTC
The engine is running.

Conditions for Setting the DTC
The Engine Oil Pressure sensor voltage is less than 0.48 volts.

Action Taken When the DTC Sets
^ The PCM stores the DTC information into memory when the diagnostic runs and fails.
^ The Malfunction Indicator Lamp (MIL) will not illuminate.
^ The PCM records the operating conditions at the time the diagnostic fails. The PCM stores this information in the Failure Records.
^ The Driver Information Center displays a message.
^ The Engine Oil Pressure gauge displays 0 psi.

Conditions for Clearing the MIL/DTC
^ A History DTC will clear after forty consecutive warm-up cycles, if no failures are reported by this or any other non-emission related diagnostic.
^ A last test failed (Current DTC) will clear when the diagnostic runs and does not fail.
^ Use a scan tool in order to clear the MIL/DTC.

Diagnostic Aids:

Important:
^ Remove any debris from the PCM/TAC module connector surfaces before servicing the PCM/TAC module. Inspect the PCM/TAC module connector gaskets when diagnosing/replacing the modules. Ensure that the gaskets are installed correctly. The gaskets prevent contaminate intrusion into the PCM/TAC modules.
^ For any test that requires probing the PCM or a component harness connector, use the Connector Test Adapter Kit J 35616-A. Using this kit prevents damage to the harness/component terminals.
^ The following may cause an intermittent:
- Poor connections.
- Mis-routed harness.
- Rubbed through wire insulation.
- Broken wire inside the insulation.
^ The PCM 5.0 volt reference circuits are internally connected within the PCM. If all the Engine Oil sensor circuits are OK, inspect related 5.0 volt reference circuits. Refer to DTC P1635 5 Volt Reference #1 Circuit.
^ Using Freeze Frame and/or Failure Records data may aid in locating an intermittent condition. If you cannot duplicate the DTC, the information included in the Freeze Frame and/or Failure Records data can aid in determining how many miles since the DTC set. The Fail Counter and Pass Counter can also aid determining how many ignition cycles the diagnostic reported a pass and/or a fail. Operate the vehicle within the same freeze frame conditions (RPM, load, vehicle speed, temperature etc.) that you observed. This isolates when the DTC failed.
^ For an intermittent, refer to Symptoms. Symptom Related Diagnostic Procedures

Test Description

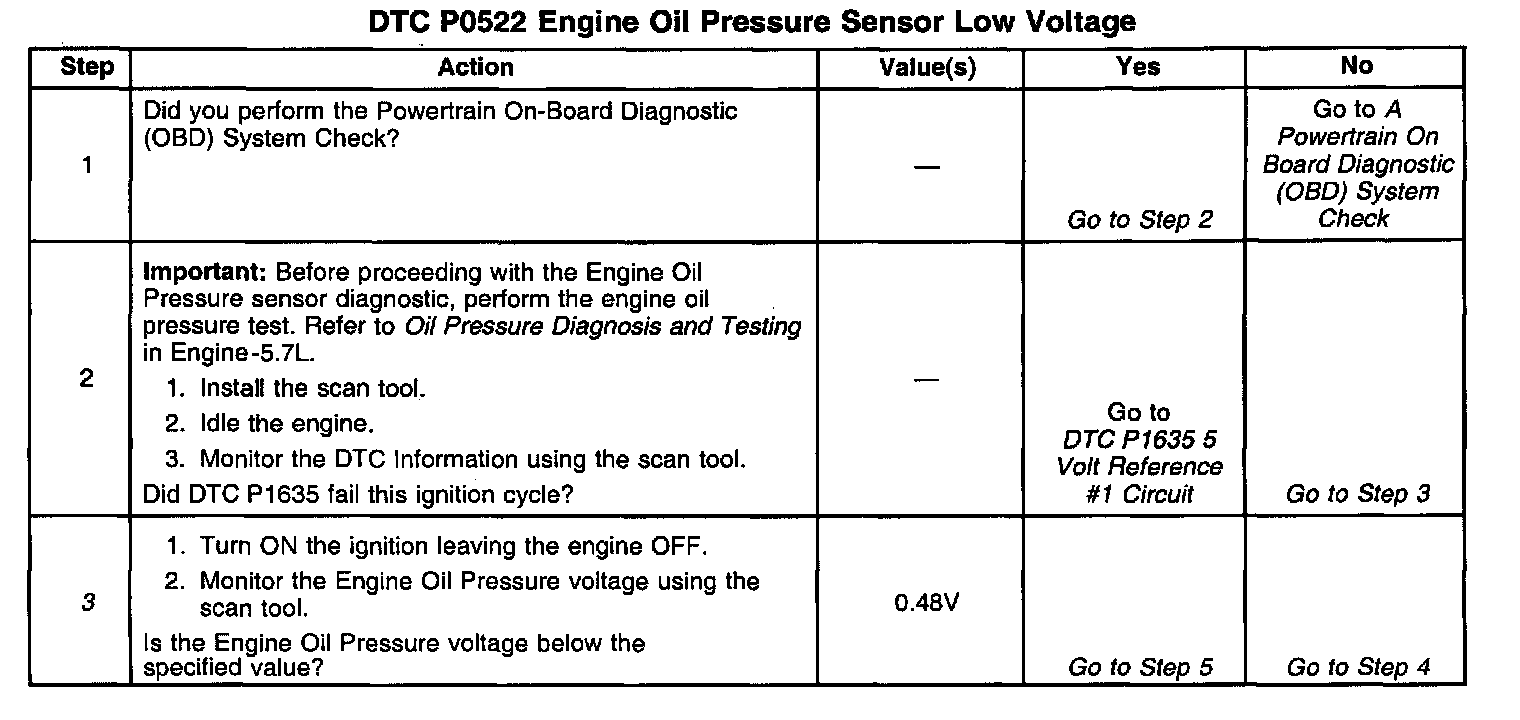

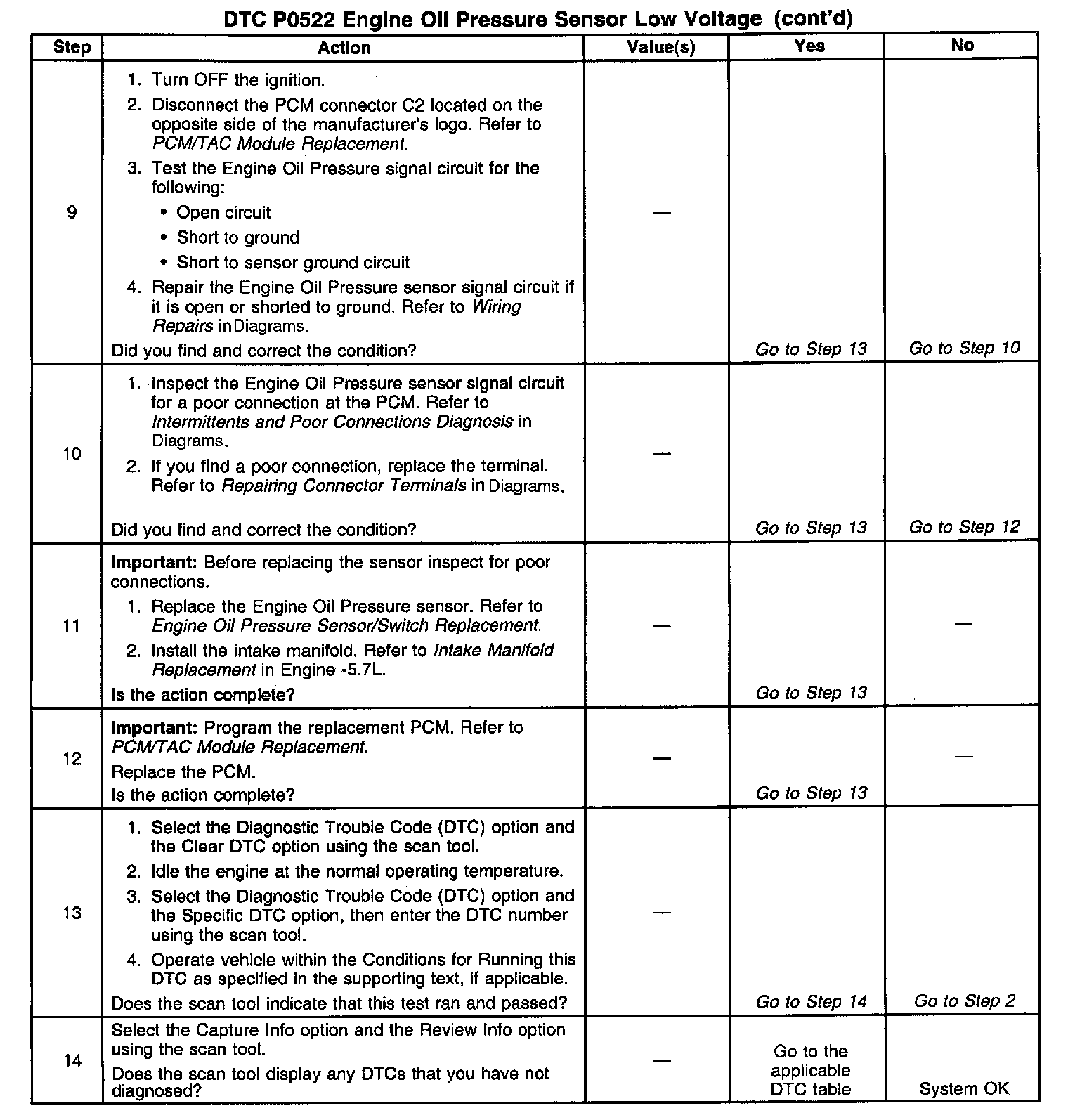

The numbers below refer to the step numbers on the diagnostic table.
3. This step determines if the malfunction is present.
4. Using the Freeze Frame and/or Failure Records data may aid in locating an intermittent condition. If you cannot duplicate the DTC, the information included in the Freeze Frame and/or Failure Records data can help determine how many miles since the DTC set. The Fail Counter and Pass Counter can also help determine how many ignition cycles the diagnostic reported a pass and/or a fail. Operate vehicle within the same freeze frame conditions (RPM, load, vehicle speed, temperature etc.) that you observed. This will isolate when the DTC failed.
5. If the scan tool displays 5.0 volts, this indicates that the Engine Oil Pressure sensor signal, 5.0 volt reference circuit and PCM are OK.
6. If the scan tool displays 5.0 volts, this indicates that the Engine Oil Pressure sensor signal circuit and PCM are OK.
7. Disconnecting the PCM allows using the DMM to test the continuity of the circuits. This aids in locating an open or shorted circuit.
