C1293

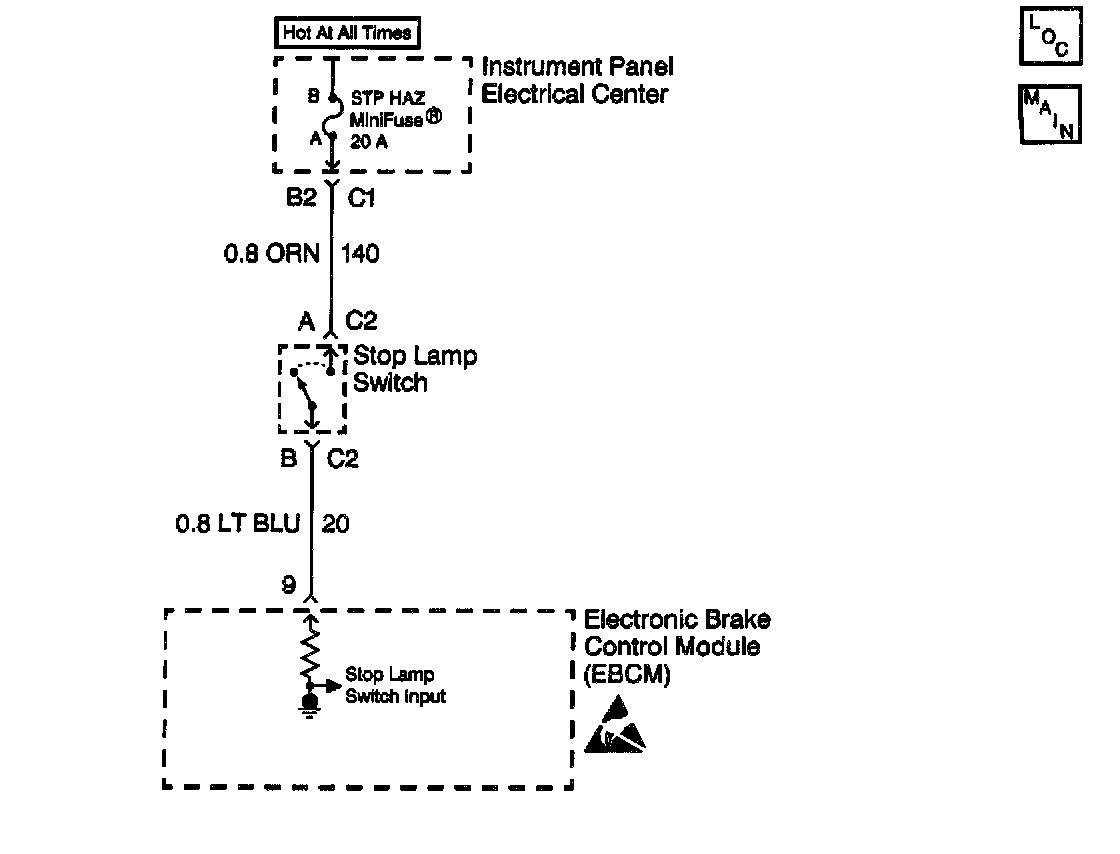

CIRCUIT DESCRIPTION
This Diagnostic Trouble Code (DTC) is the second portion of DTC C1291. If DTC C1291 occurred during an ignition cycle, DTC C1293 becomes a current malfunction during the next ignition cycle, keeping Traction Control System (TCS) disabled until a brake switch on state is seen. When a change is seen during an ignition cycle in which DTC C1293 is a current malfunction, DTC C1291 will clear itself at the end of the current ignition cycle, and TCS will enable itself at the start of the next ignition cycle. DTC C1293 alone indicates DTC C1291 occurred previously, but is intermittent, or has been corrected.

CONDITIONS FOR SETTING THE DTC
Diagnostic Trouble Code (DTC) C1293 is set when DTC C1291 was set in the previous or current ignition cycle.

ACTION TAKEN WHEN THE DTC SETS
Antilock Brake System (ABS) remains enabled, Traction Control System (TCS)/Active Handling (if equipped with RPO JL4) are disabled.
^ Indicators that turn on:
- Car Icon (TCS indicator)
^ Messages displayed on the Driver Information Center (DIC):
- Service Traction System
- Service Active HNDLG (if equipped with RPO JL4)

CONDITIONS FOR CLEARING THE DTC
^ Condition for Diagnostic Trouble Code (DTC) is no longer present and Scan tool clear DTC function is used.
^ Fifty ignition cycles have passed with no DTCs detected.

DIAGNOSTIC AIDS
^ It is very important that a thorough inspection of the wiring and connectors be performed. Failure to carefully and fully inspect wiring and connectors may result in misdiagnosis, causing part replacement with reappearance of the malfunction.
^ An intermittent malfunction is most likely caused by a poor connection, rubbed through wire insulation, or a wire that is broken inside the insulation.
^ Also, verify proper Stoplamp switch operation using the Data List of the Scan tool. As the brake is applied, the data list should display the Stoplamp switch on within 1 inch of travel.
^ If an intermittent malfunction exists refer to Testing for Electrical Intermittents in Diagnostic Aids.

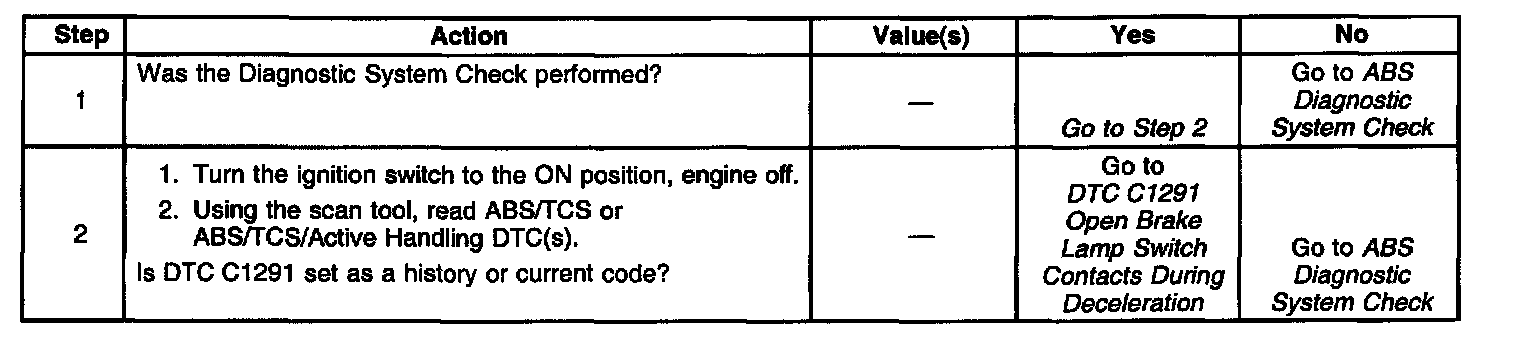

DTC C1293 DTC C1291/C1292 SET IN CURRENT OR PREVIOUS IGNITION CYCLE
