C1243

CIRCUIT DESCRIPTION
When the pump motor relay is grounded by the Electronic Brake and Traction Control Module (EBTCM), it closes and provides battery voltage to operate the pump.

CONDITIONS FOR SETTING THE DTC
Diagnostic Trouble Code (DTC) C1243 can be set when the pump motor relay has been commanded off after the pump motor has been on. A malfunction has occurred if the pump motor was on, and the Electronic Brake and Traction Control Module (EBTCM) sensed a stuck or slowly turning pump motor.

ACTION TAKEN WHEN THE DTC SETS
ABS/TCS/Active Handling (if equipped with RPO JL4) are disabled.
^ Indicators that turn on:
- ABS indicator
- Car Icon (TCS indicator)
^ Messages displayed on the Driver Information Center (DIC):
- Service ABS
- Service Traction System
- Service Active HNDLG (if equipped with Active Handling RPO JL4)

CONDITIONS FOR CLEARING THE DTC
^ Condition for Diagnostic Trouble Code (DTC) is no longer present and Scan tool clear DTC function is used.
^ Fifty ignition cycles have passed with no DTCs detected.

DIAGNOSTIC AIDS
^ It is very important that a thorough inspection of the wiring and connectors be performed. Failure to carefully and fully inspect wiring and connectors may result in misdiagnosis, causing part replacement with reappearance of the malfunction.
^ An intermittent malfunction can be caused by poor connections, broken insulation, or a wire that is broken inside the insulation.
^ If an intermittent malfunction exists refer to Testing for Electrical Intermittents in Diagnostic Aids.

TEST DESCRIPTION

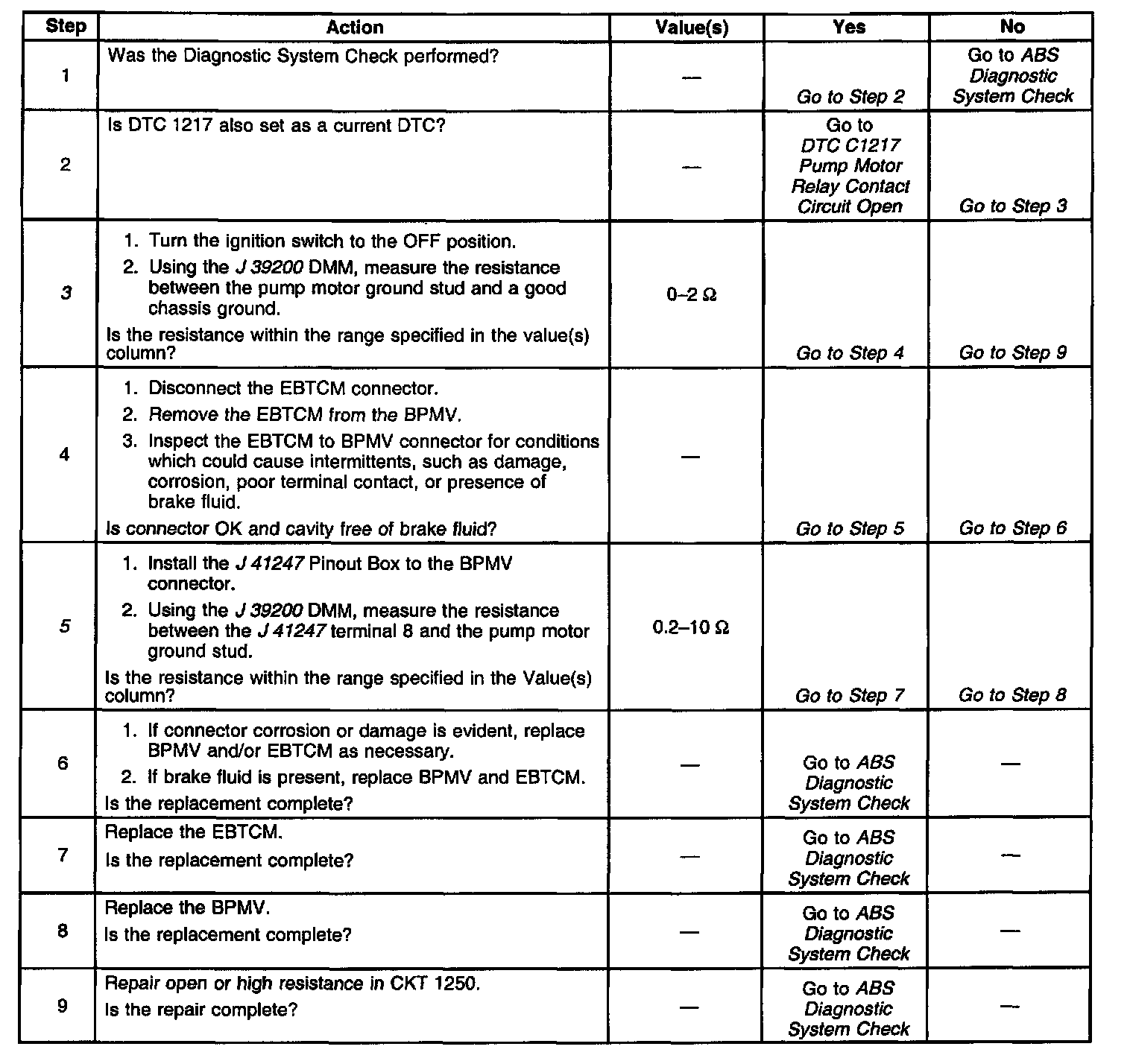

The numbers below refer to step numbers on the diagnostic table.
3. Checks for good pump motor ground.
5. Checks for good pump motor ground through the Brake Pressure Modulator Valve (BPMV).

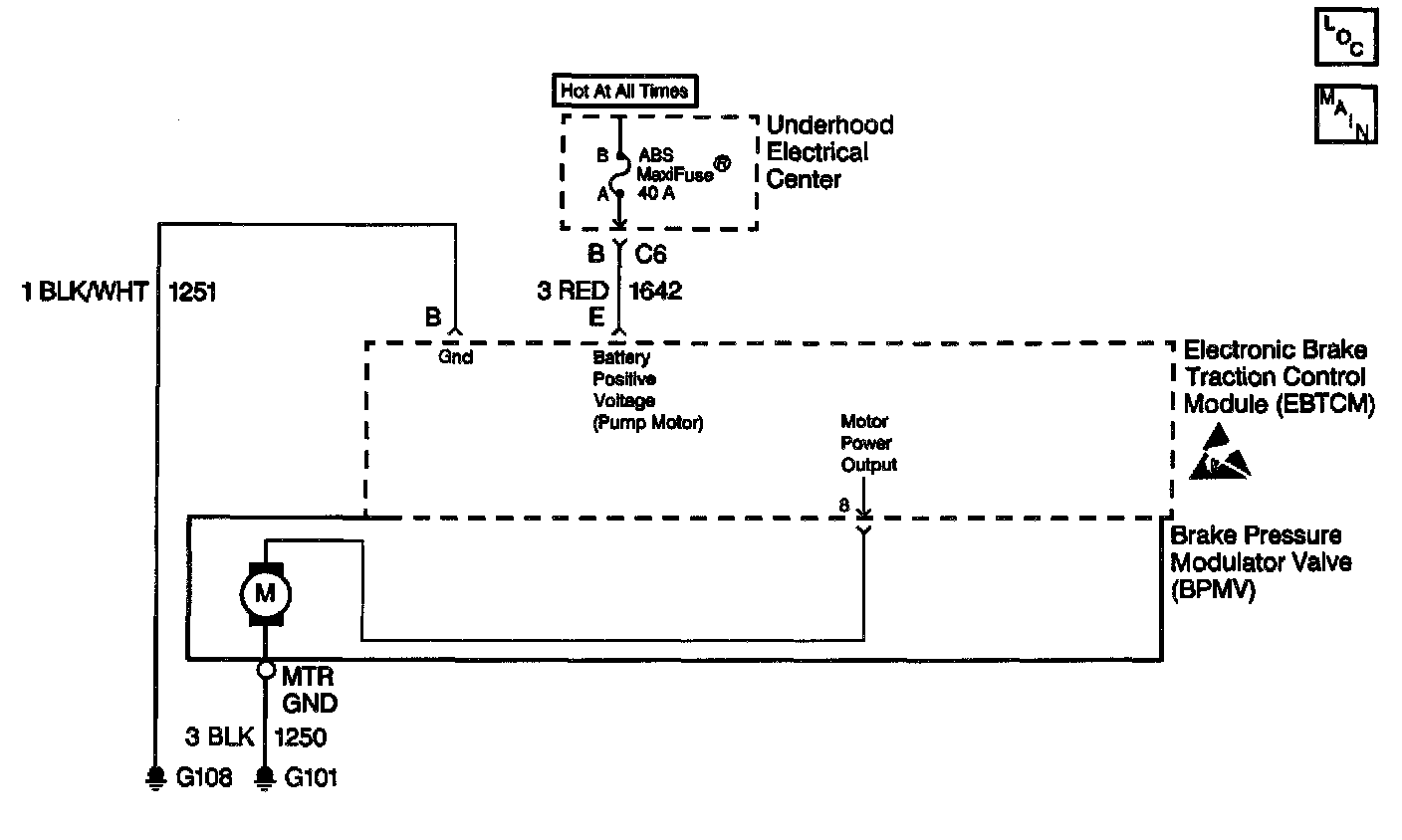

DTC C1243 BPMV PUMP MOTOR STALLED
