B2852

DTC B2852 Column In Switch Shorted To Ground:

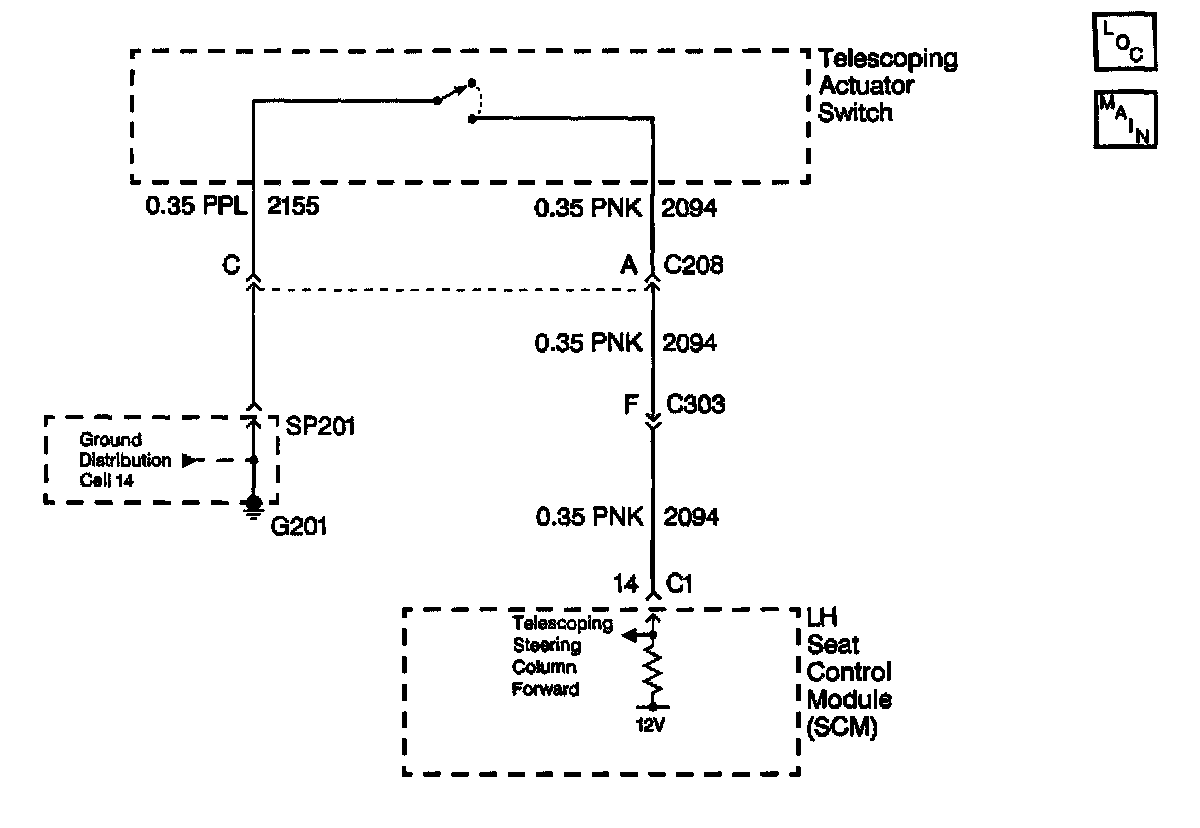

CIRCUIT DESCRIPTION
The telescoping steering column switch circuit provides an input to the LH Seat Control Module (SCM) when the switch is held closed in the in or out position. The SCM monitors a 12 volt signal applied to the steering column switch circuit (2094). When the steering column switch is closed in the in position, the column in 12 volt signal is grounded and pulled low within the SCM, indicating a column in request.

CONDITIONS FOR SETTING THE DTC
The steering column in switch input, to the SCM, is active for more than 20 seconds.

ACTION TAKEN WHEN THE DTC SETS
^ Stores a history DTC B2852 in the SCM memory.
^ This DTC can only be set as a history code even if the malfunction is current. No driver warning message will be displayed for this DTC.
^ The operation/function of the steering column in switch is disabled.

CONDITIONS FOR CLEARING THE DTC
^ The steering column in switch input, to the SCM, is inactive for more than 20 seconds.
^ Using a scan tool.

DIAGNOSTIC AIDS
^ The following conditions may cause an intermittent malfunction.
- There is an intermittent short to ground in circuit 2094.
- The steering column in switch is shorted to ground internally or is sticking.
- The steering column in switch was closed for longer than 20 seconds.
^ If circuit 2094 is shorted to ground or the steering column in switch is stuck closed, the steering column will remain in the full in position at all times.
^ Using a scan tool, select scan tool inputs and monitor steering column in switch status. If the scan tool displays ACTIVE, disconnect the steering column in switch. If the display changes to INACTIVE, replace the switch. If the display remains ACTIVE check circuit 2094 for a short to ground.
^ If the DTC does not reset after the code is cleared, then the problem may be intermittent. Perform the tests shown while moving related wiring and connectors. This can often cause the malfunction to occur. Refer to Intermittents and Poor Connections Diagnosis in Wiring Systems. Diagnostic Aids
^ Activate the steering column in switch numerous times while monitoring the status on the scan tool to see if it sticks intermittently.

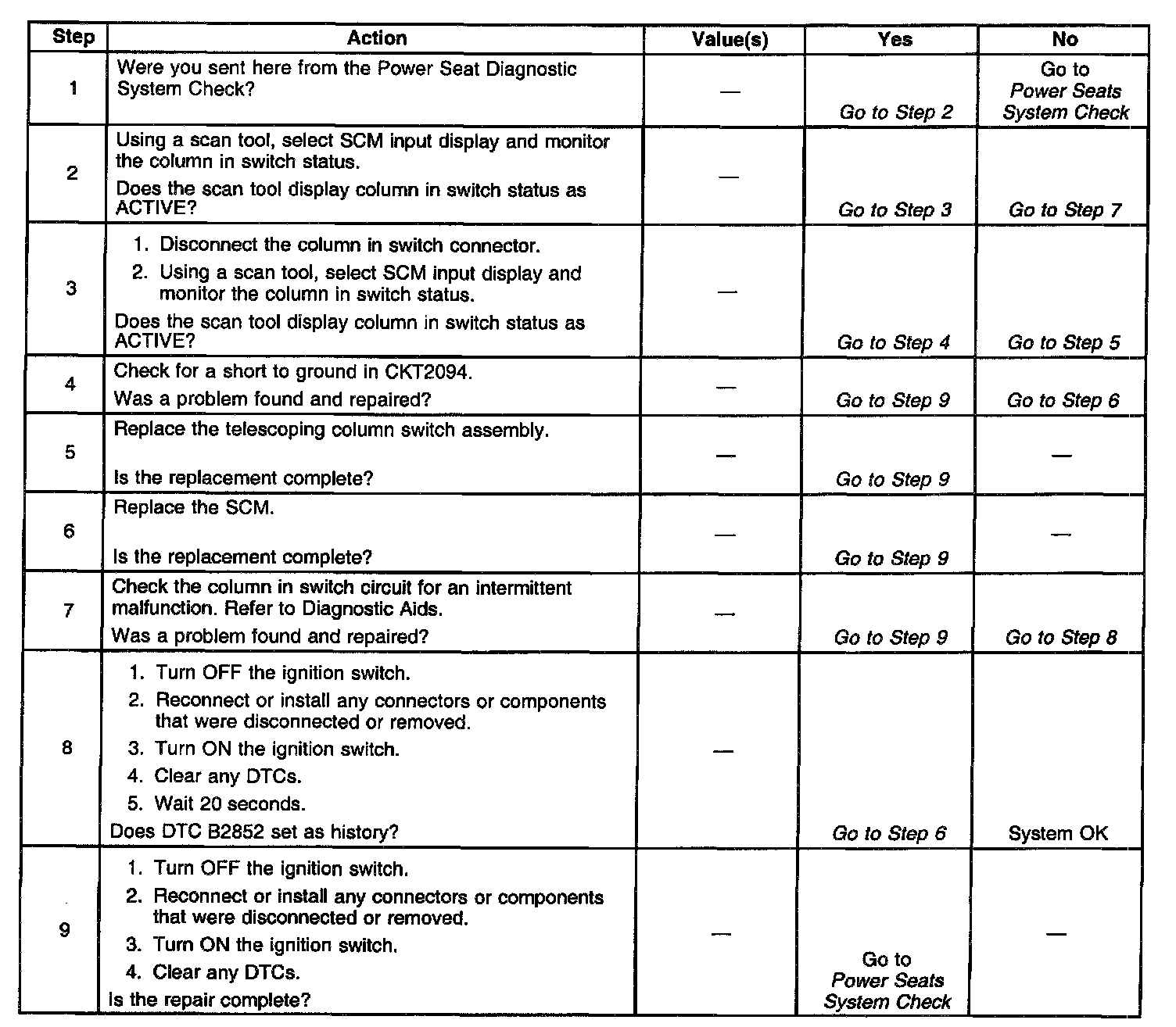

TEST DESCRIPTION
The numbers below refer to the step numbers on the diagnostic table:
2. This test determines the status of the column in switch using a scan tool. The scan tool will display the column in switch status as ACTIVE (button pressed) and INACTIVE (button released).
3. This test checks it the column in switch is shorted to ground or stuck. If the column in switch status changes from ACTIVE to INACTIVE when the column in switch is disconnected, then the switch assembly must be replaced.
