B1000

Circuit Description
DTC B1000 is an indication of a potential internal Inflatable Restraint Sensing and Diagnostic Module (SDM) malfunction. DTC B1000 will set if a detection of any one or more of the following conditions are present.

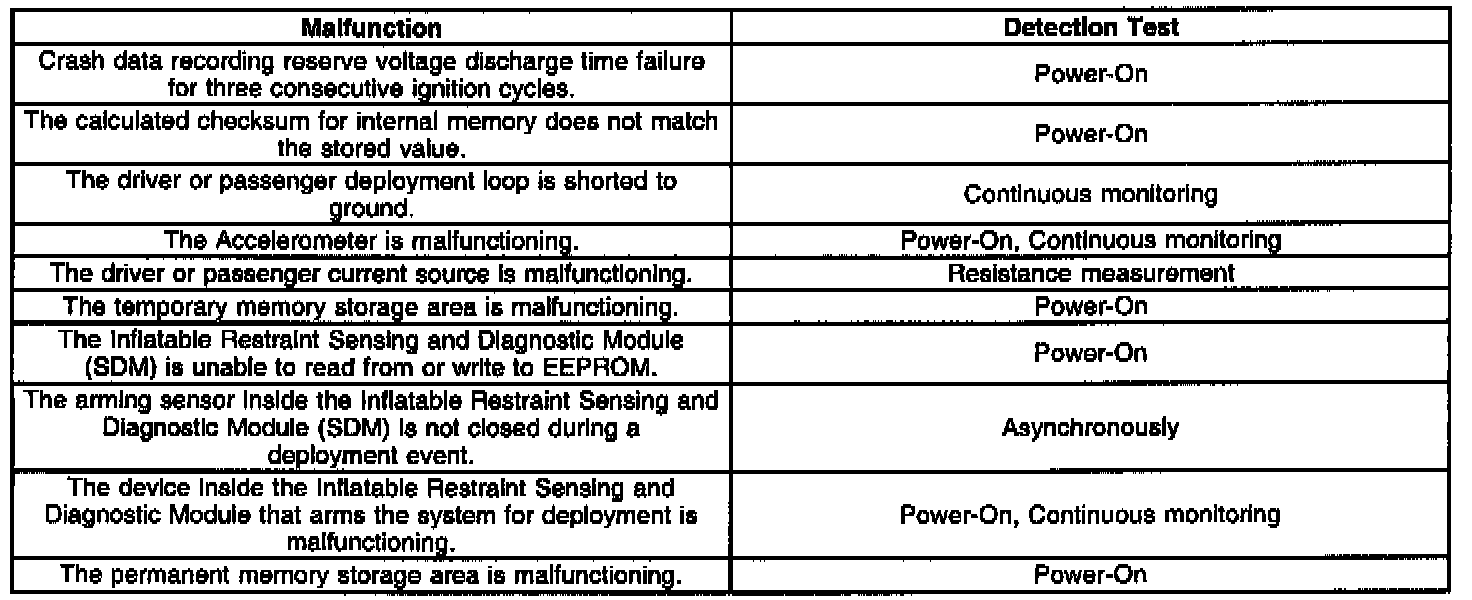

Conditions for Setting the DTC





Action Taken When the DTC Sets
^ The SDM sets a DTC B1000.
^ The SDM commands ON the AIR BAG warning lamp via Class 2 serial data.

Diagnostic Aids
When you issue a scan tool CLEAR CODES command, some of the indicated malfunctions will only allow the AIR BAG warning lamp to go out briefly then come back ON.

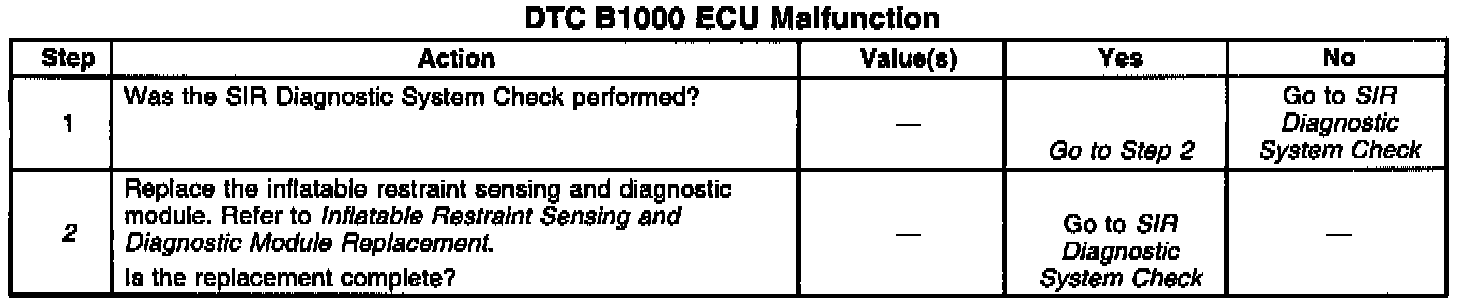

Test Description
The number(s) below refer to the step number(s) on the diagnostic table.
2. This step replaces the Inflatable Restraint Sensing and Diagnostic Module.
