Transmission Mount Replacement- Rear

Inspection Procedure
1. Pull up and down on the transaxle case while observing the front lower transaxle mount.
2. Replace a mount when the following conditions occur:
3. The rubber separates from the metal case.

Notice: Refer to Fastener Notice in Service Precautions.

4. If movement occurs between the metal plate of the mount and its attaching point, tighten the mount bolts.
^ Tighten the bolts to 75 Nm (55 ft. lbs.).


Removal Procedure

^ Tools Required
- J 28467-360 Engine Support Fixture Adapter.

Caution: Refer to Battery Disconnect Caution in Service Precautions.

1. Disconnect the negative battery cable. Install J 28467-360. Raise the transaxle enough to take pressure off of the motor mounts.
2. Remove the left front tire and the wheel assembly.
3. Remove the left front splash shield.

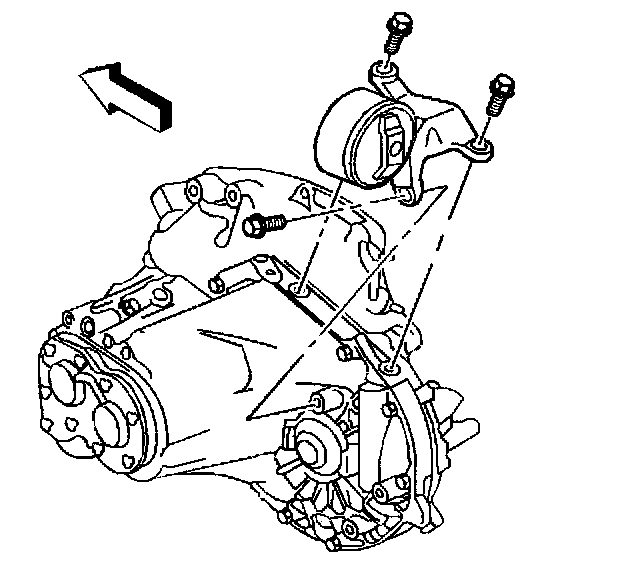

4. Remove the rear transaxle mount bolts.
5. Remove the rear transaxle mount.

Installation Procedure

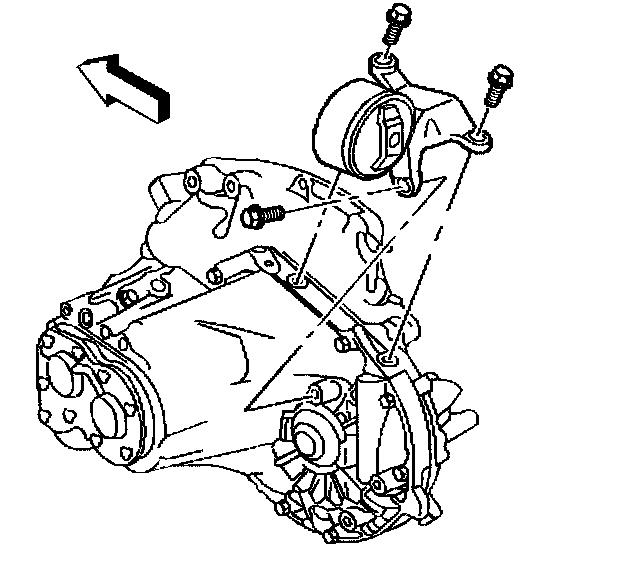

1. Install the rear transaxle mount.

Notice: Refer to Fastener Notice in Service Precautions.





2. Install the rear transaxle mount bolts.
^ Tighten the bolts to 75 Nm (55 ft. lbs.).
3. Install the left front splash shield.
4. Install the left front tire and the wheel assembly.
5. Remove J 28467-360.
6. Connect the negative battery cable.
