Transmission Mount Replacement - Front
Inspection Procedure1. Pull up and down on the transaxle case while observing the front lower transaxle mount.
2. Replace a mount when the following conditions occur:
3. The rubber separates from the metal case
Notice: Refer to Fastener Notice in Service Precautions.
4. If movement occurs between the metal plate of the mount and its attaching point, tighten the mount bolts.
^ Tighten the bolts to 75 Nm (55 ft. lbs.).
Removal Procedure
Caution: Refer to Battery Disconnect Caution in Service Precautions.
1. Disconnect the negative battery cable. use a screw jack in order to raise the transaxle enough to take pressure off of the motor mounts.
2. Remove the left front tire and the wheel assembly.
3. Remove the left front splash shield.

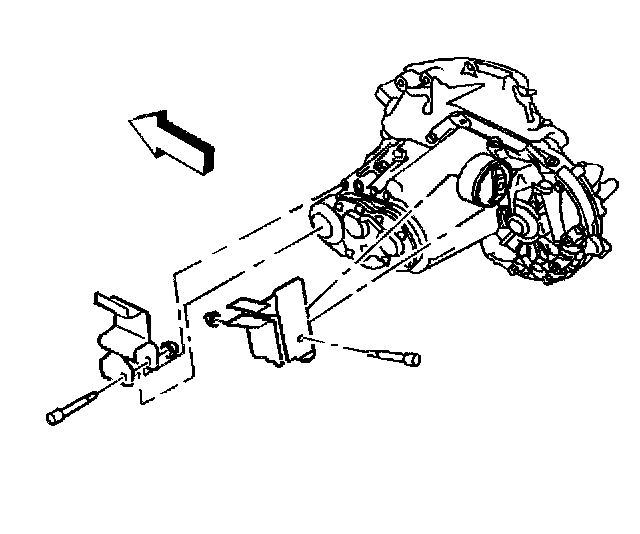

4. Remove the front transaxle mount bolts.
5. Remove the front transaxle mount.
Installation Procedure

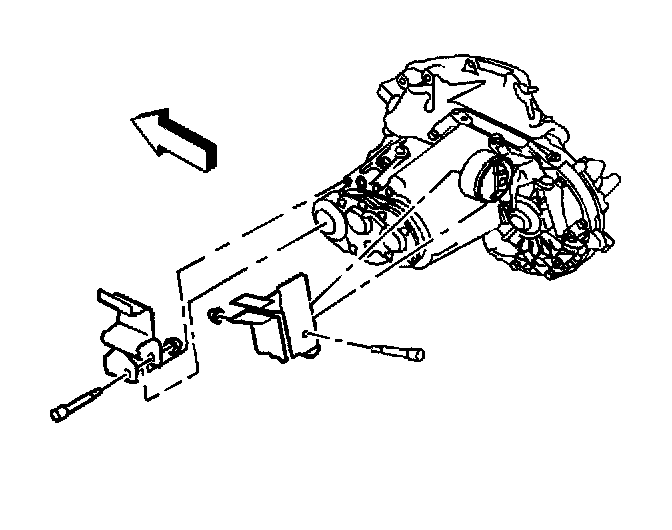

1. Install the front transaxle mount.
Notice: Refer to Fastener Notice in Service Precautions.
2. Install the front transaxle mount bolts.
^ Tighten the bolts to 60 Nm (44 ft. lbs.).
3. Install the left front splash shield.
4. Install the left front tire and the wheel assembly.
5. Remove J 28467-360.
6. Connect the negative battery cable.
