Home
>>
Chevrolet
>>
1999
>>
Cavalier L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Drive Axles, Bearings and Joints
>>
Axle Shaft Assembly
>>
Diagrams
>>

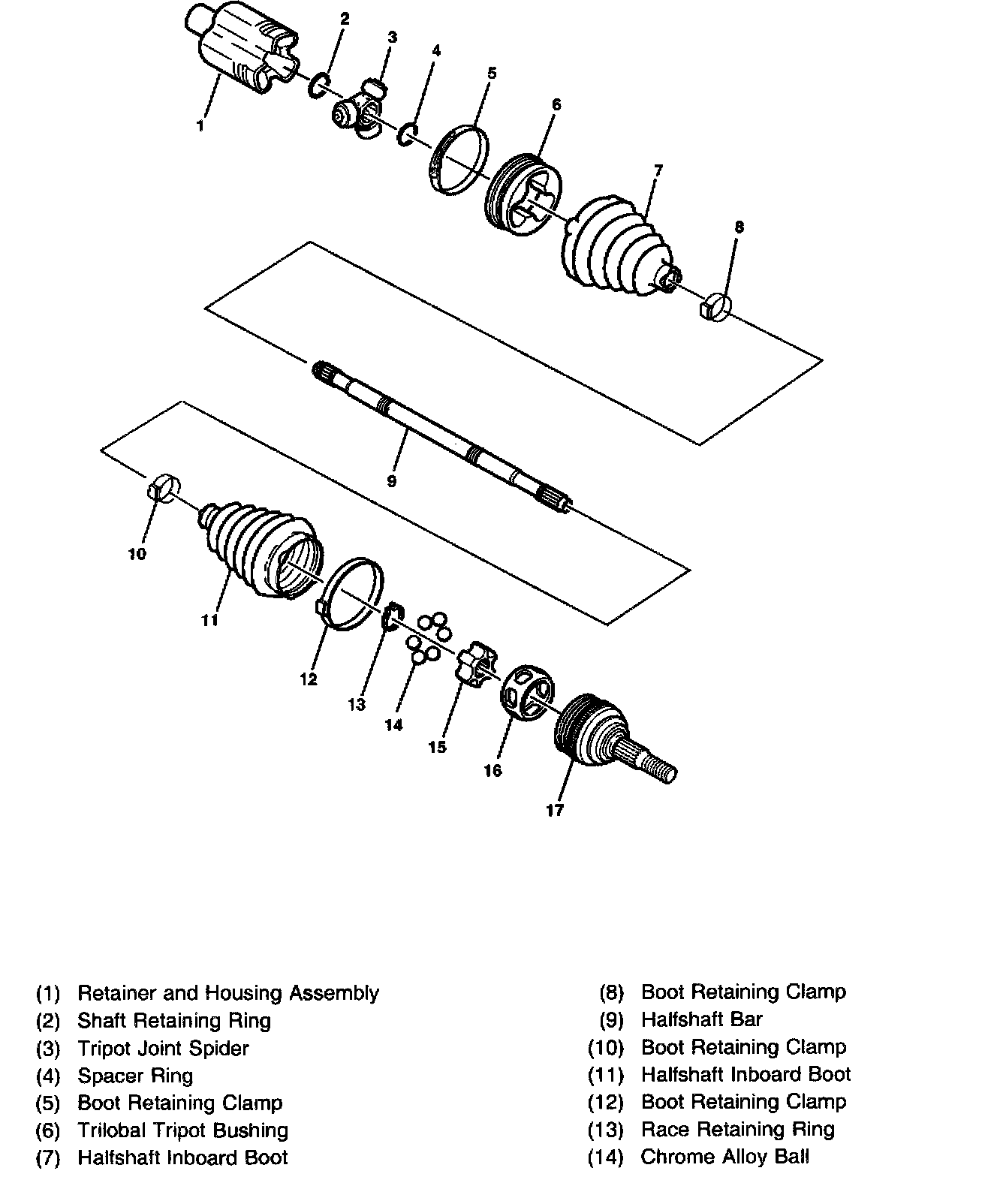

Disassembled Views (Halfshaft Assembly)
Disassembled Views (Halfshaft Assembly)
