57. Reaction Carrier Pinion End Play Check

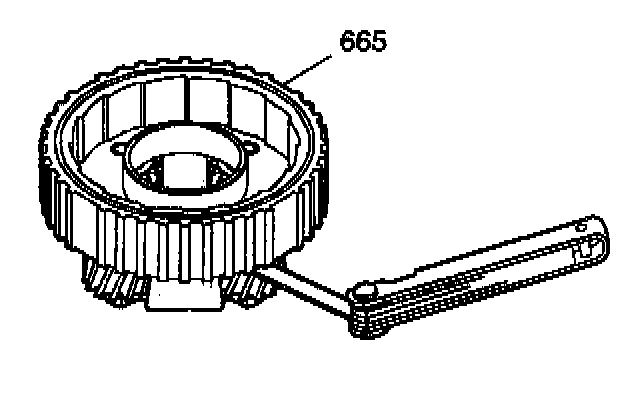

1. Use a feeler gage in order to check the reaction carrier (665) for excessive pinion end play.

IMPORTANT: If the pinion end play is outside of these dimensions, replace the reaction carrier (665).

2. Pinion end play should be between 0.24-0.63 mm (0.009-0.025 inch).
