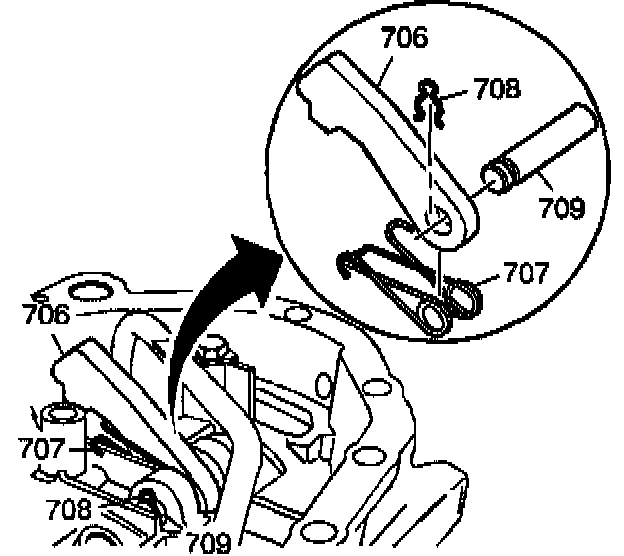

44. Park Lock Pawl Disassemble
44. Park Lock Pawl Disassemble
1.
Remove the pin retainer (708) from the park lock pawl pin (709).
2.
Remove the pin (709) for the park lock pawl from the case.
3.
Remove the park lock pawl (706) and the park lock pawl spring (707).
