Automatic Transaxle - 4T40-E/4T45-E

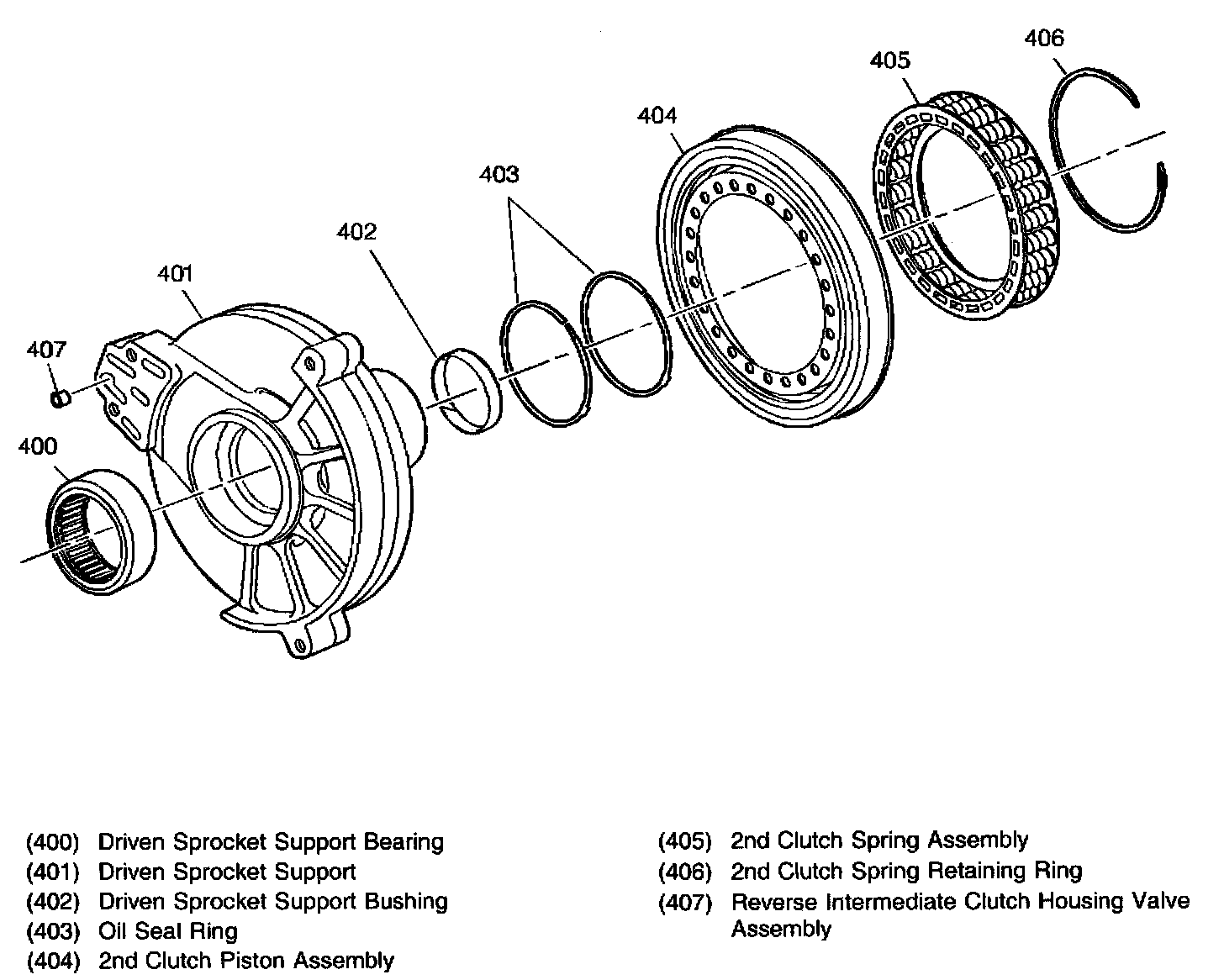

Driven Sprocket Support Assembly and 2nd Clutch






Reverse Input Clutch Assembly

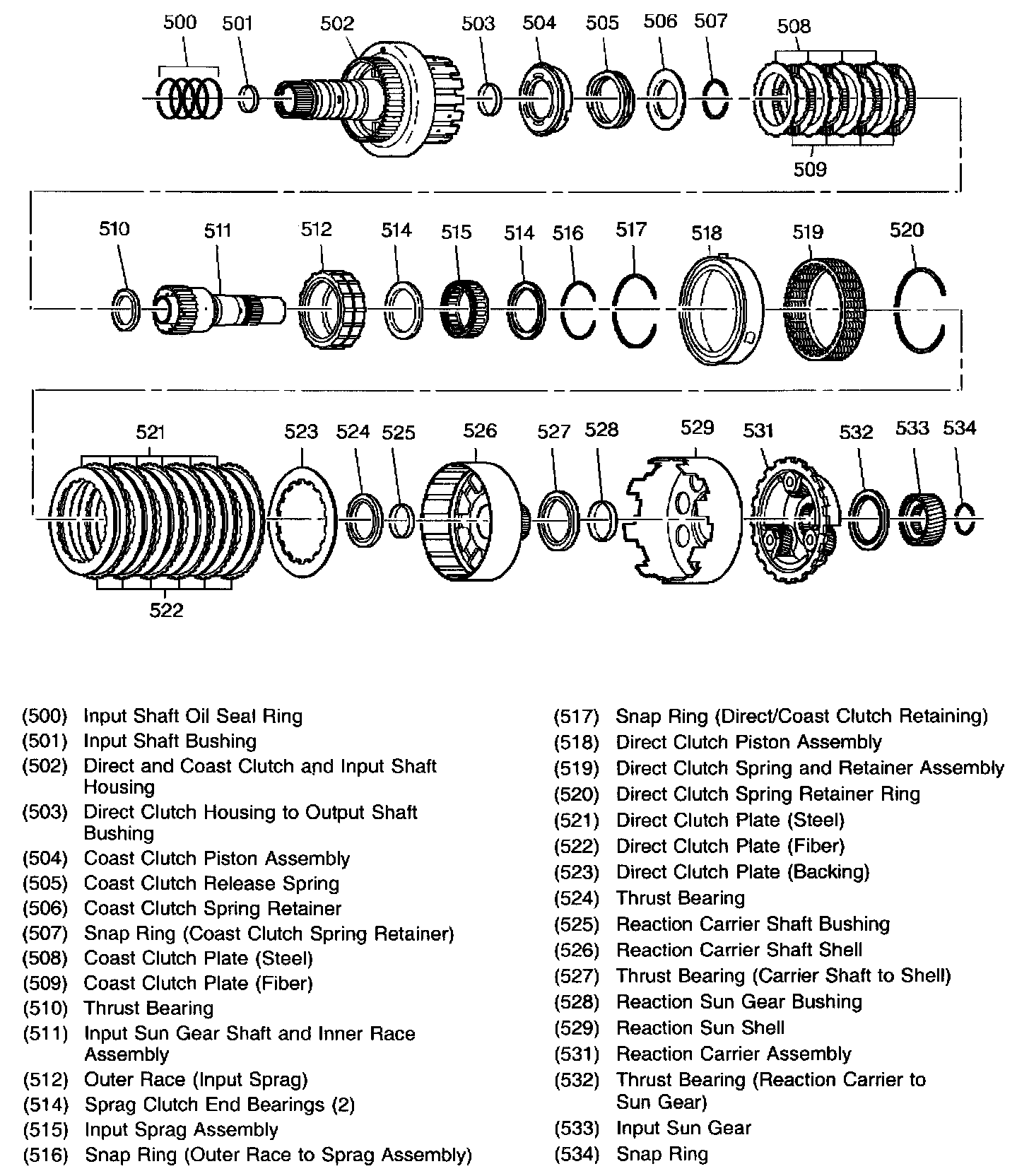

Direct and Coast Clutch Assemblies

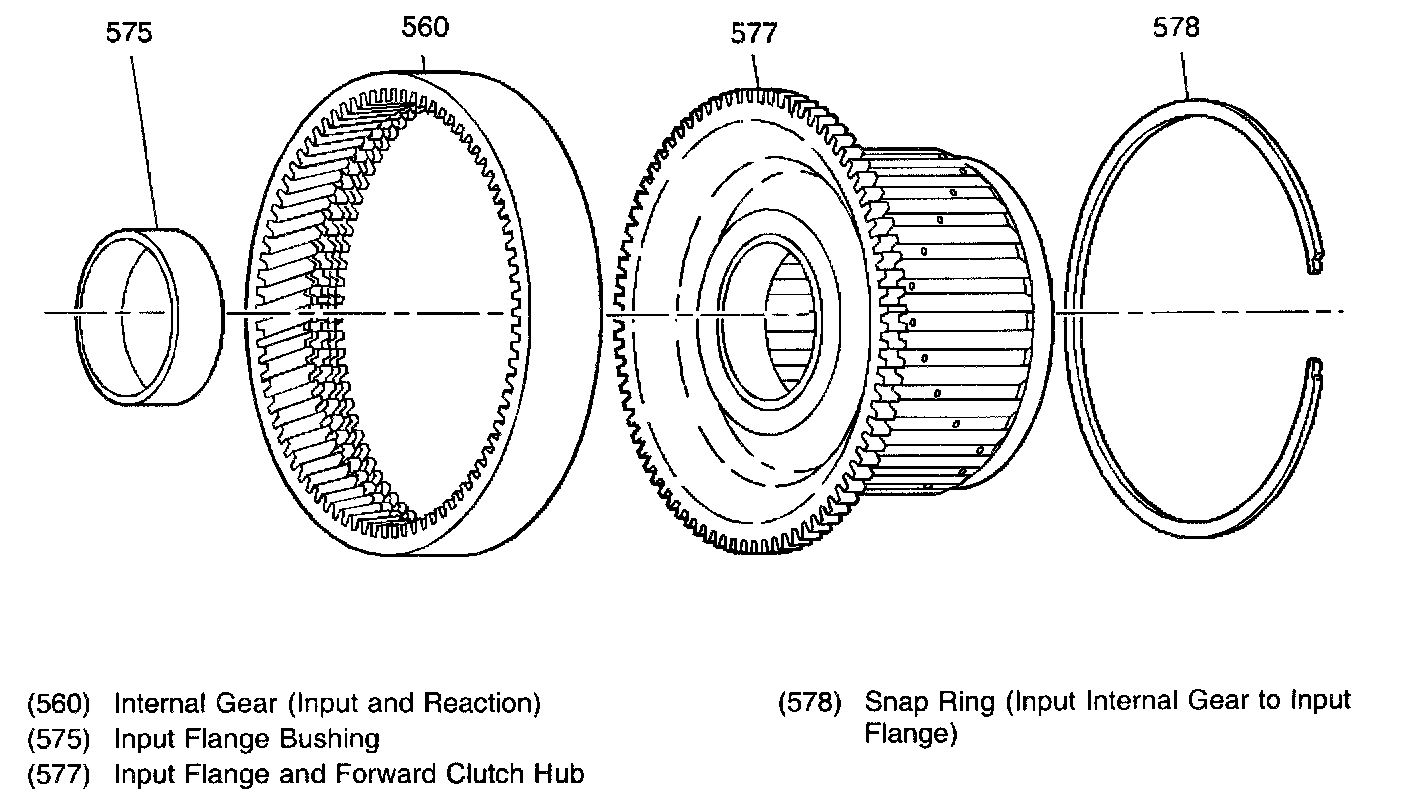

Input Internal Gear And Forward Clutch Hub

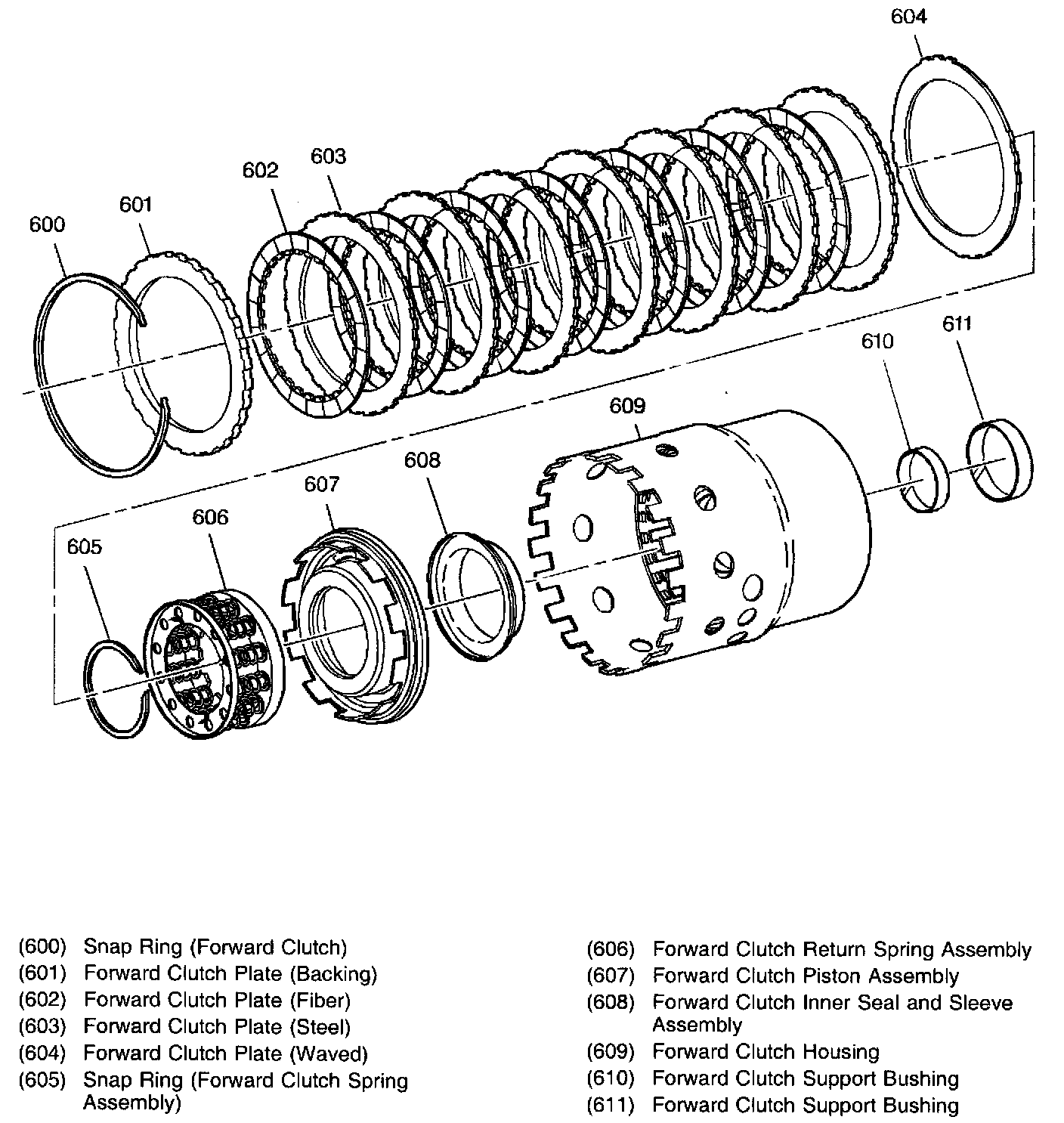

Forward Clutch Assembly

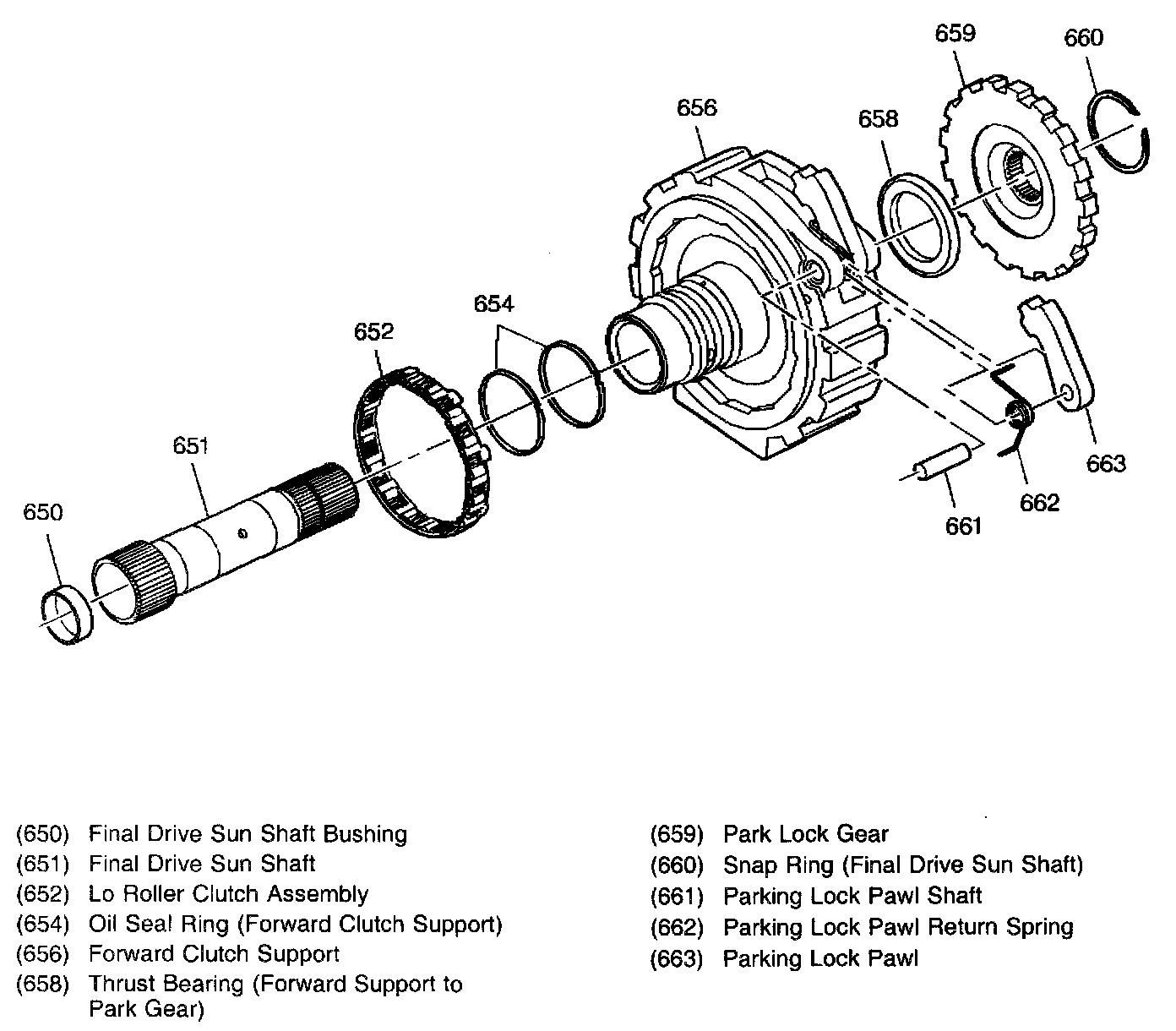

Forward Clutch support Assembly
