Automatic Transaxle - 4T40-E/4T45-E

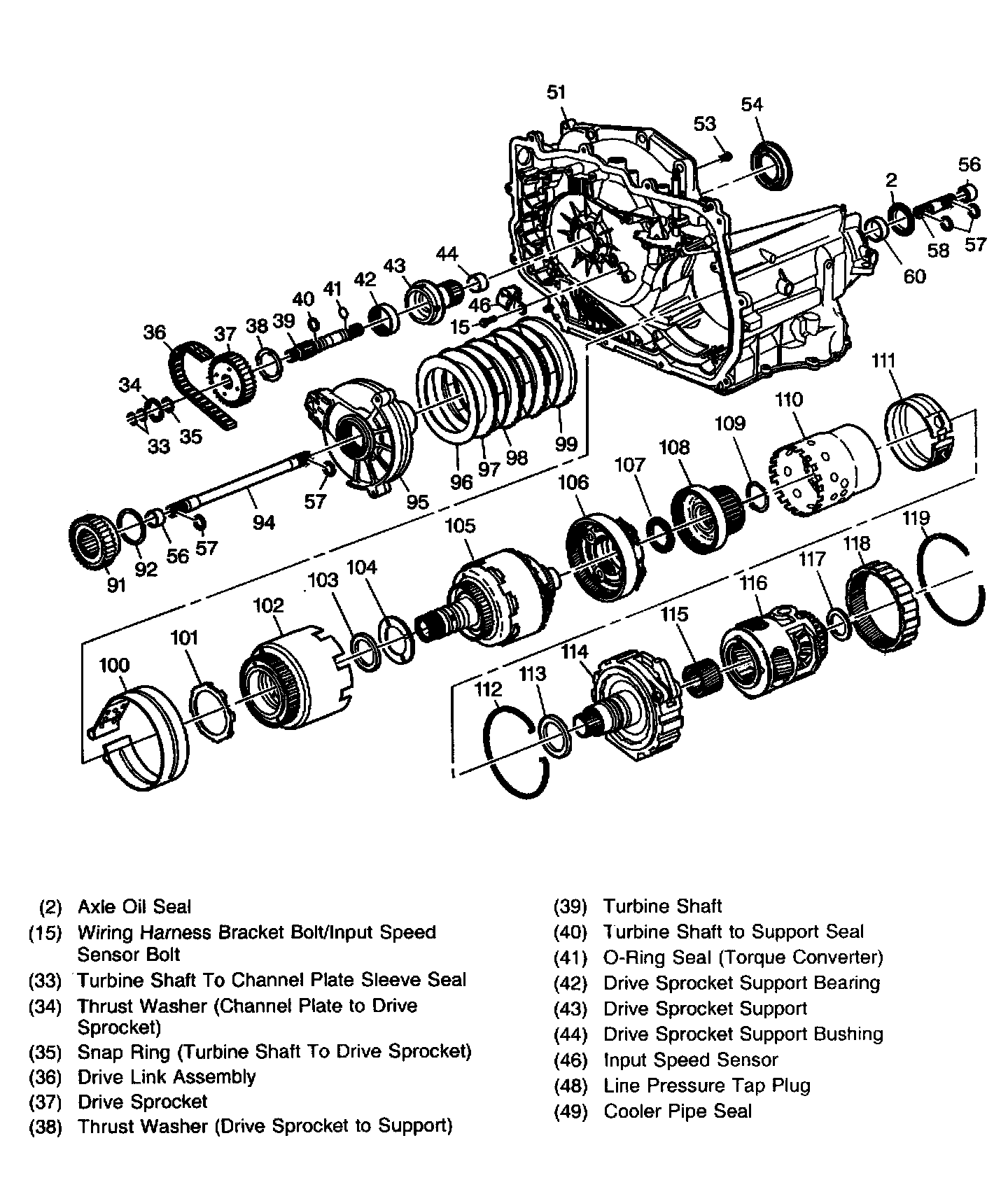

Case and Associated Parts (1 of 3)

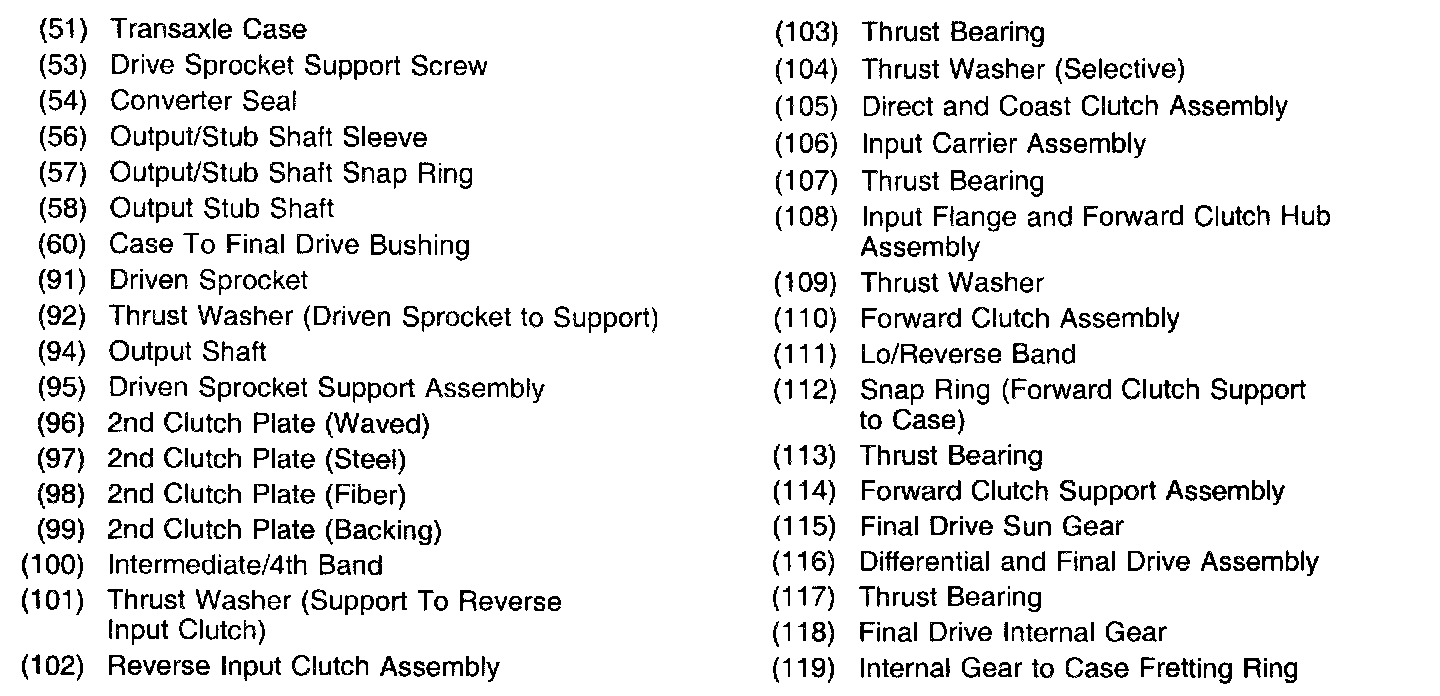

Case and Associated Parts (2 of 3)

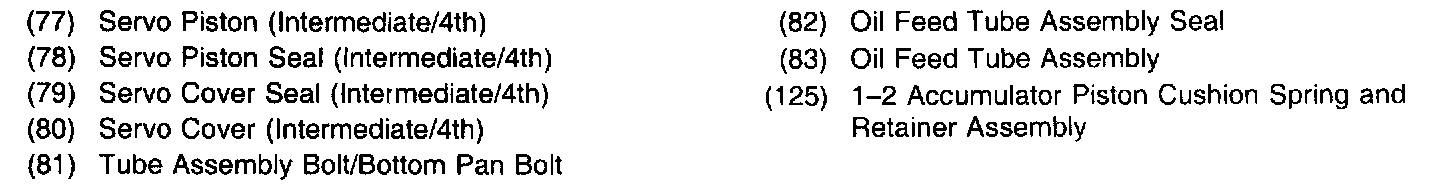

Case and Associated Parts (3 of 3)

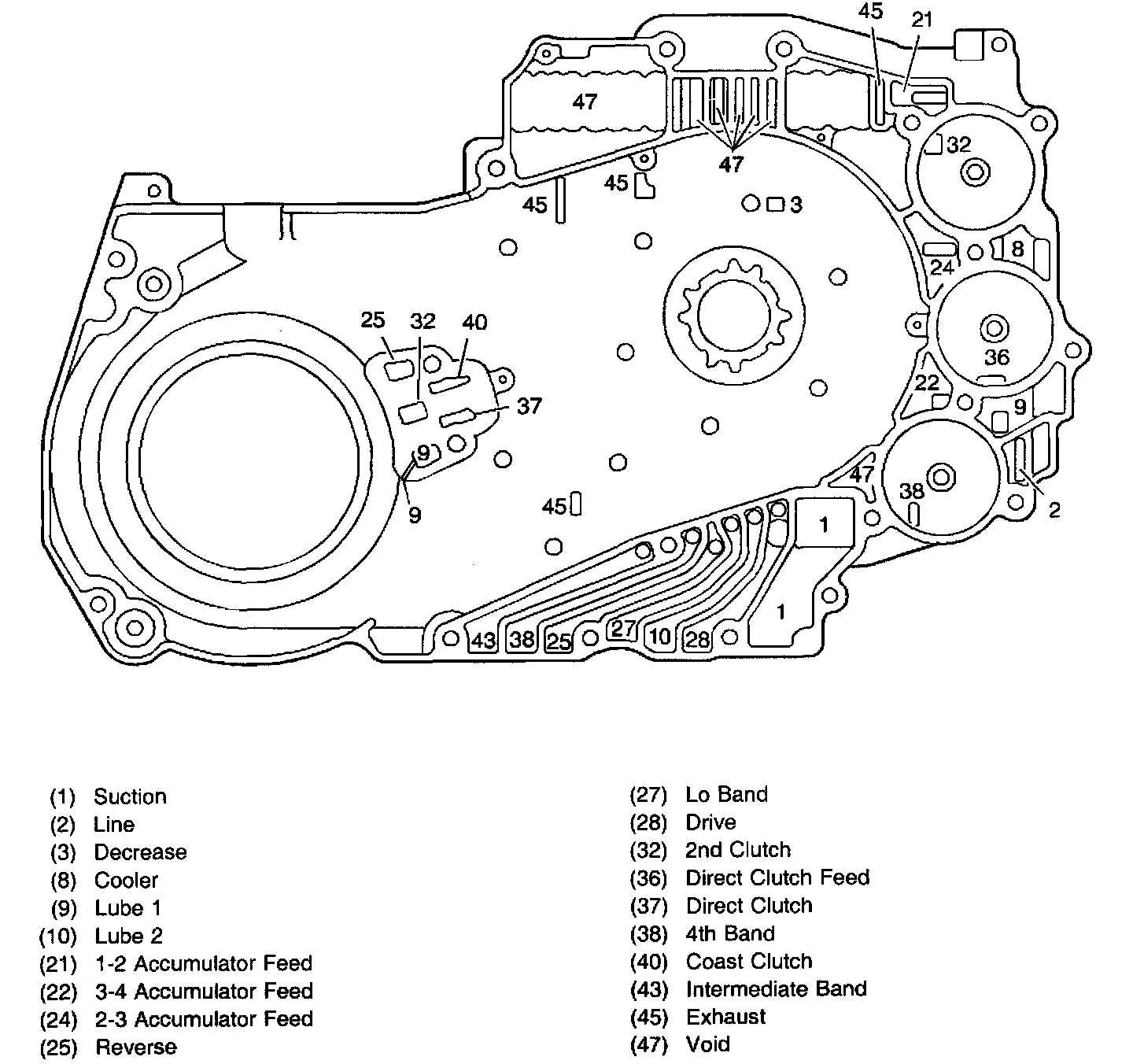

Channel Plate Fluid Passages (Case Side)
Channel Plate to Case Gasket

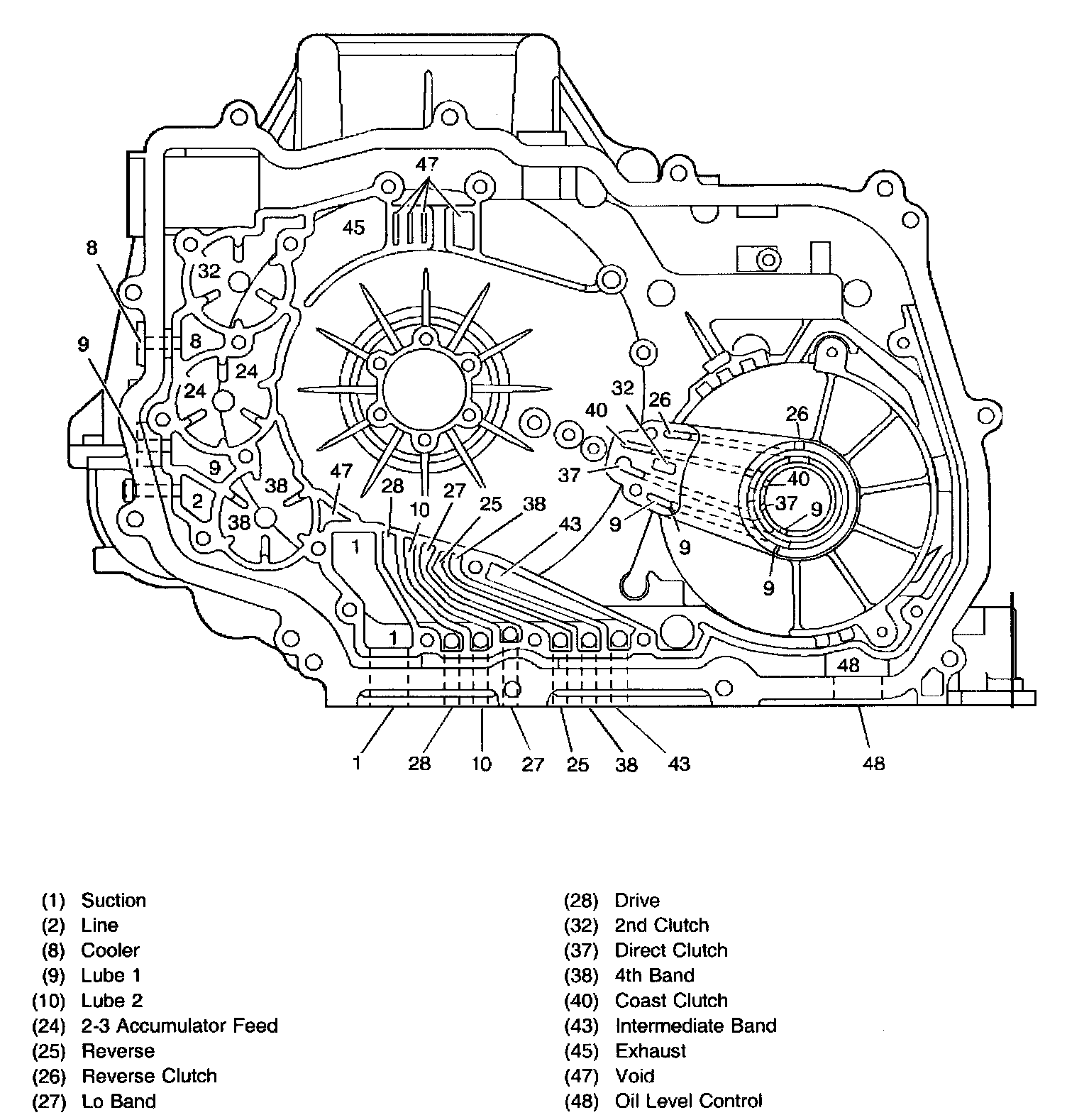

Case and Driven Sprocket Support Fluid Passages (Channel Plate Side)

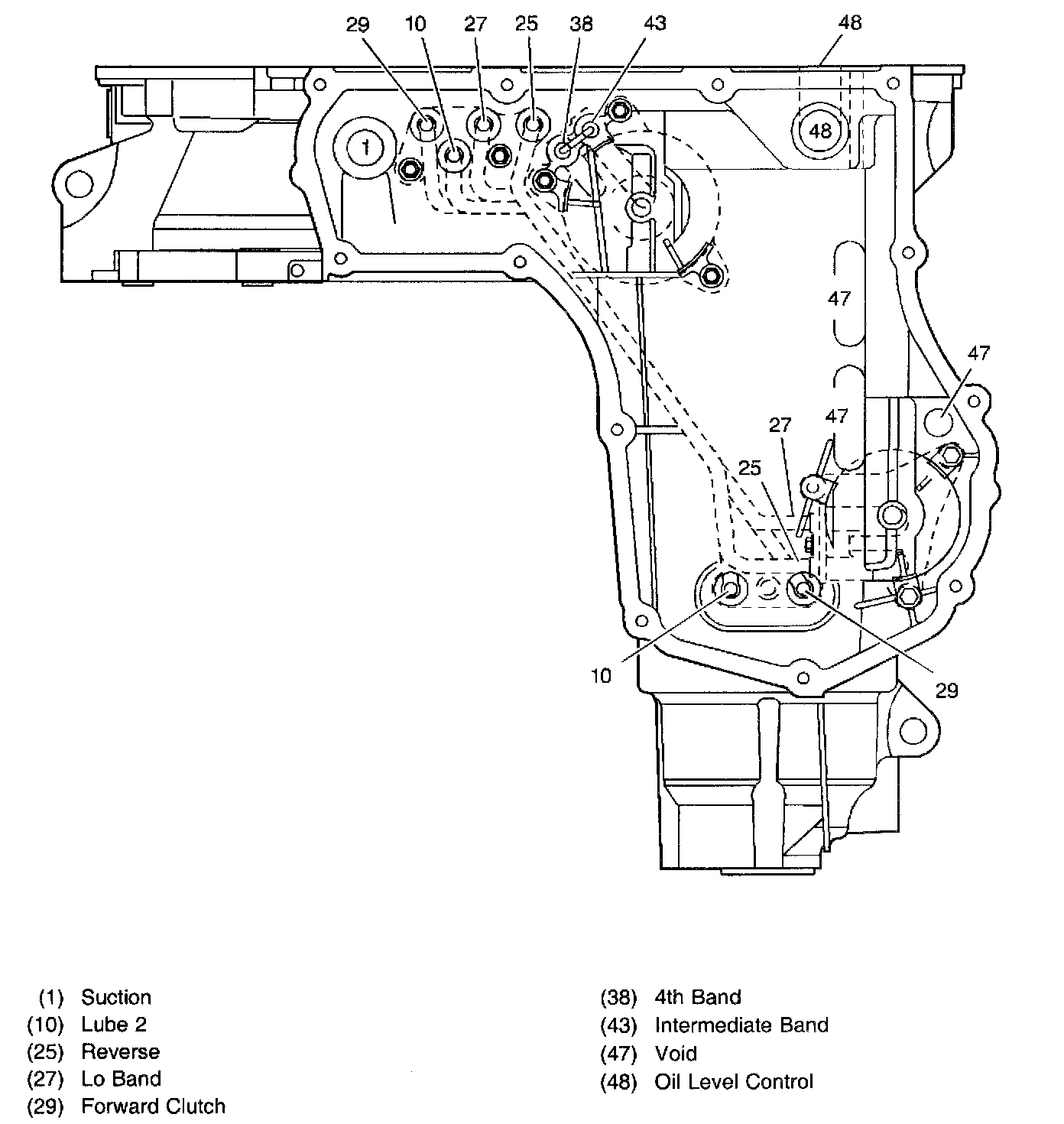

Case Fluid Passages (Bottom)
