Stabilizer Bushing: Service and Repair

REMOVAL PROCEDURE
1. Raise and suitably support the vehicle. Refer to Vehicle Lifting.
2. Remove the front tire and wheel assemblies. Refer to Tire and Wheel Removal and Installation in Wheels, Tires and Alignment.
3. Remove the stabilizer shaft from the vehicle. Refer to Stabilizer Shaft Replacement.

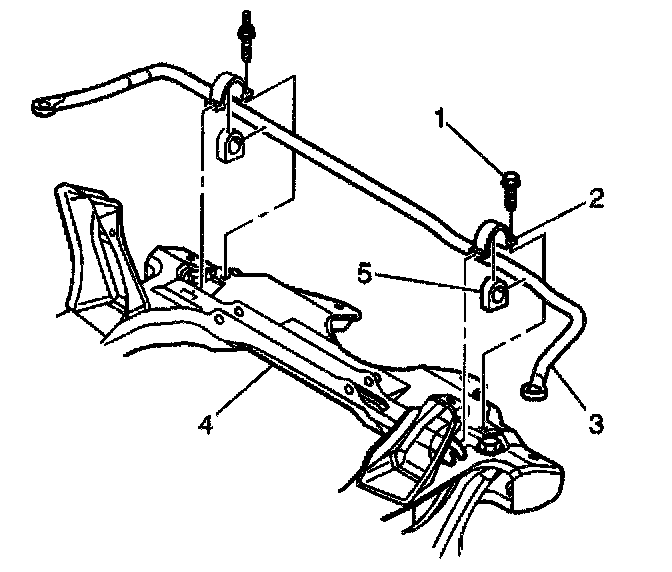

4. Remove the stabilizer shaft bushings (5) from the stabilizer shaft (3).

INSTALLATION PROCEDURE





1. Install the stabilizer shaft bushings (5) to the stabilizer shaft (3).
2. Install the stabilizer shaft to the vehicle. Refer to Stabilizer Shaft Replacement.
3. Install the tire and wheel assemblies. Refer to Tire and Wheel Removal and Installation Tires and Wheels.
4. Lower the vehicle.
