Front Suspension

REMOVAL PROCEDURE

- Tools Required
- J21474-4 Control Arm Bushing Set
- J41211 Front Control Arm Bushing Kit
- J41397 Lower Control Arm Bushings Remover/Installer

1. Remove the lower control arm. Refer to Lower Control Arm Replacement.
2. Secure the lower control arm in a vice.

Important: Apply J23444 A (or equivalent high pressure lubricant) to the threads of the J21474-19.

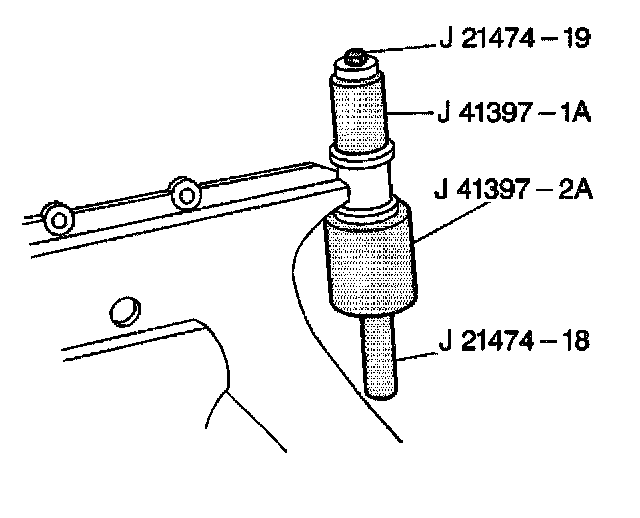

3. Assemble the following bushing removal tools as shown:
- J21474-19
- The remover/installer from the J41397
- The receiver from the J41397
- J21474-18

4. Tighten the J21474-18 until the front bushing is removed from the control arm.
5. Disassemble the bushing removal tools.





6. Assemble the following bushing removal tools as shown:
- J21474-27
- The remover/installer from the J41211
- The receiver from the J41211
- J21474-4

7. Tighten the J21474-27 until the rear bushing is removed from the control arm.
8. Disassemble the bushing removal tools.

INSTALLATION PROCEDURE
1. Insert the rear bushing into the control arm.

Important: Apply J23444 A (or equivalent high pressure lubricant) to the threads of the J21474-27.





2. Assemble the following bushing installation tools as shown:
- J21474-27
- The receiver/installer from the J41211
- The receiver from the J41211
- J21474-4

3. Tighten the J21474-4 until the rear bushing is fully seated in the control arm.
4. Disassemble the bushing installation tools.
5. Lubricate the outer casing of the front bushing.
6. Insert the front bushing into the control arm.





7. Assemble the following bushing installation tools as shown:
- J21474-19
- The remover/installer from the J41397
- The receiver from the J41397
- J21474-18

8. Tighten the J21474-19 until the front bushing is fully seated in the control arm.
9. Disassemble the bushing installation tools.
10. Install the lower control arm. Refer to Lower Control Arm Replacement.
