Tie Rod End Replacement - Outer (Off Vehicle)

DISASSEMBLY PROCEDURE

- Tools Required
- J24319-01 Universal Steering Linkage Puller





1. Pull the hex torque prevailing nut (2) from the outer tie rod assembly (1).





2. Loosen the jam nut (2) on the inner tie rod assembly (1).





3. Remove the outer tie rod assembly (2) from the steering knuckle (1) using J24319-01.





4. Remove the outer tie rod assembly (3) from the inner tie rod assembly (1).

ASSEMBLY PROCEDURE

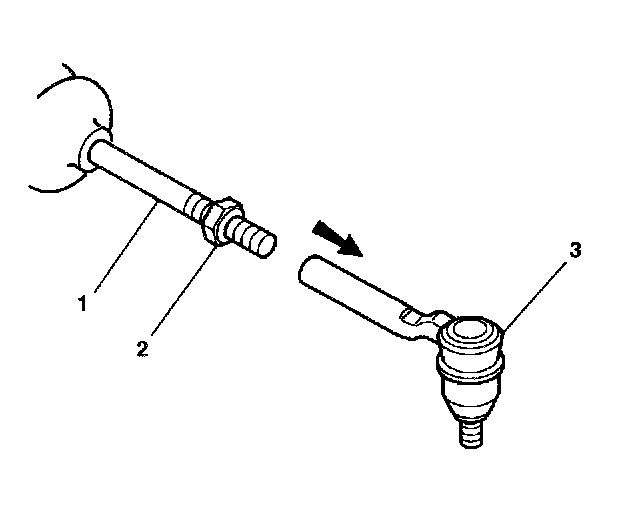

1. Connect the outer tie rod assembly (3) to the inner tie rod (1). Do not tighten the jam nut (2).

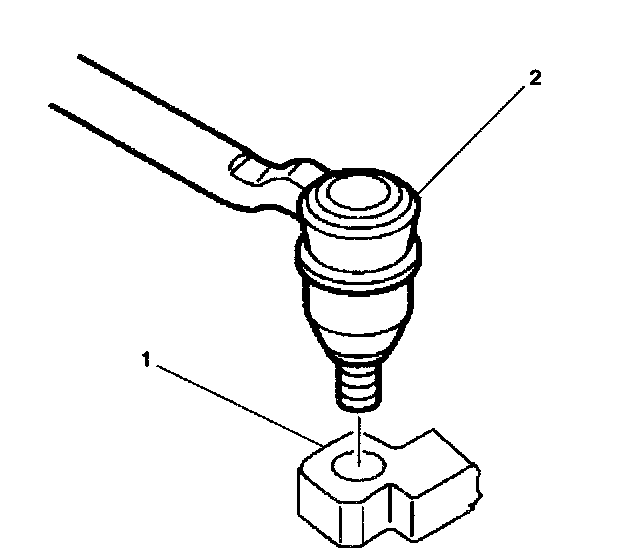

2. Connect the outer tie rod assembly (2) to the steering knuckle (1).

NOTICE: Refer to Fastener Notice in Service Precautions.

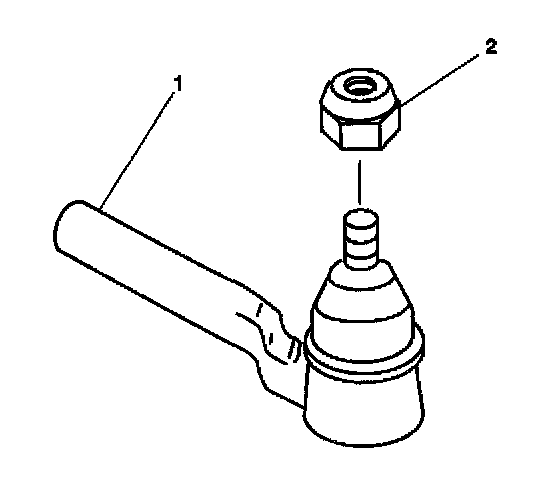

3. Connect the hex torque prevailing nut (2) to the outer tie rod stud (1).
Tighten the hex torque prevailing nut (2) to 10 Nm (7 ft. lbs.). Tighten the nut an additional 210 degrees of rotation.

IMPORTANT: Be sure the rack and pinion boot is not twisted or puckered during toe adjustment.

4. Adjust the toe by turning the inner tie rod. Follow the recommended manufacturer specifications.
Tighten the hex jam nut against the outer tie rod to 68 Nm (50 ft. lbs.).
