REMOVAL PROCEDURE
1. Raise the vehicle on a hoist. Refer to Vehicle Lifting.
2. Remove the front suspension cross member. Refer to Front Suspension Crossmember Replacement in Suspension

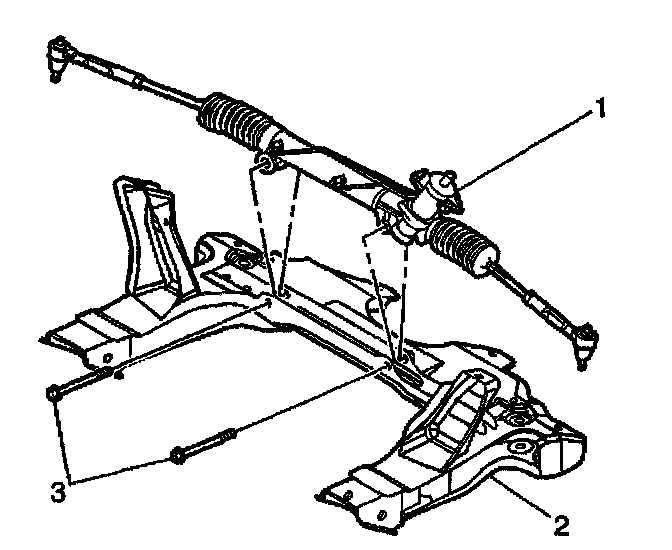

3. Remove the power steering gear mounting bolts (3).
4. Remove the power steering gear (1) from the front suspension support assembly (2).

INSTALLATION PROCEDURE





1. Install the power steering gear (1) to the front suspension cross member (2).

NOTICE: Refer to Fastener Notice in Service Precautions.

2. Install the power steering gear mounting bolts (3)
Tighten the bolts to 120 Nm (89 ft. lbs.).
3. Install the front suspension support assembly. Refer to Front Suspension Cross member Replacement in Suspension
4. Lower the vehicle.
