Steering Gear: Adjustments

ADJUSTMENT PROCEDURE

IMPORTANT: Perform the rack bearing preload adjustment with the front wheel raised and the steering wheel centered. Make sure the steering wheel is centered after adjustment.





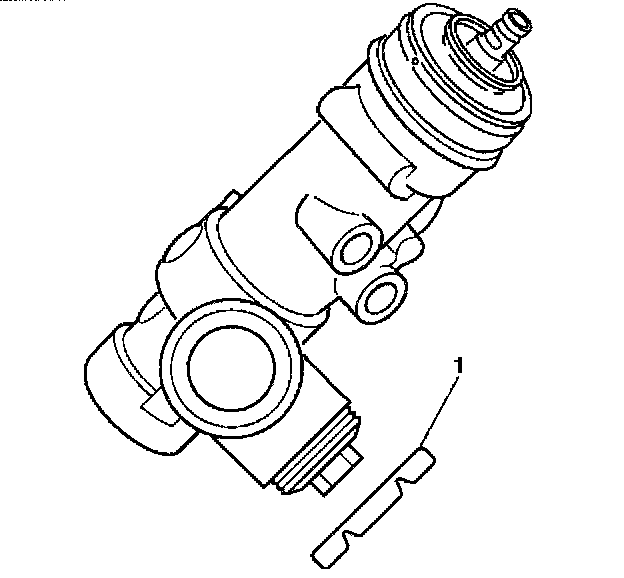

1. Loosen the adjuster plug lock nut (1).
2. Turn the adjuster plug clockwise until the adjuster plug bottoms in the gear assembly.
3. Turn the adjuster plug back 50 degrees to 70 degrees (approximately one flat).
4. Install the adjuster plug lock nut (1) to the adjuster plug.

NOTICE: Refer to Fastener Notice in Service Precautions.

Hold the adjuster plug stationary while tightening the adjuster plug lock nut (1) to 68 Nm (50 ft. lbs.).
