Ignition Switch - Assemble

ASSEMBLY PROCEDURE

- Tools Required
- J41352 Modular Column Holding Fixture

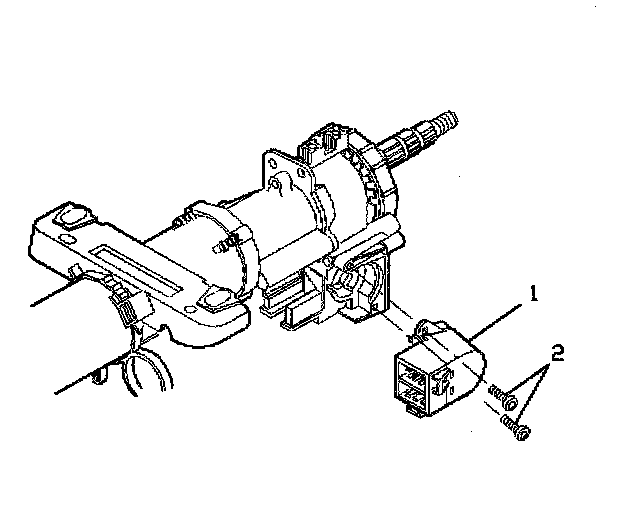

1. Install the ignition switch assembly (1).
2. Install the 2 tapping screws (2).

NOTICE: Refer to Fastener Notice in Service Precautions.

Tighten the screws to 1.5 Nm (13 inch lbs.).
3. Install all wire harness straps to the wire harness assembly.





4. Remove the steering column and J41352 from the vise.
