Steering Column Jacket - Disassemble

DISASSEMBLY PROCEDURE

- Tools Required
- J21854-1 Pivot Pin Remover

1. Remove the ignition lock housing assembly. Refer to Lock Housing Assembly - Disassemble - Off Vehicle.
2. Remove the ignition switch assembly. Refer to Ignition Switch Assembly - Disassemble Off Vehicle.
3. Remove the tilt spring. Refer to Tilt Spring Disassemble - Off Vehicle.

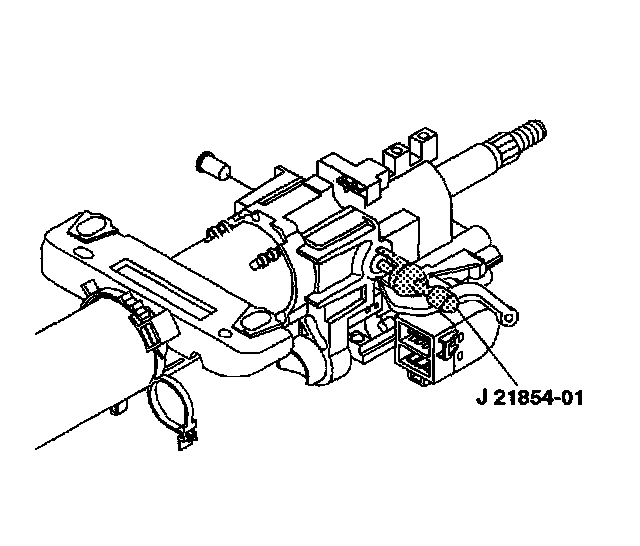

4. Remove the 2 pivot pins using J21854-1.

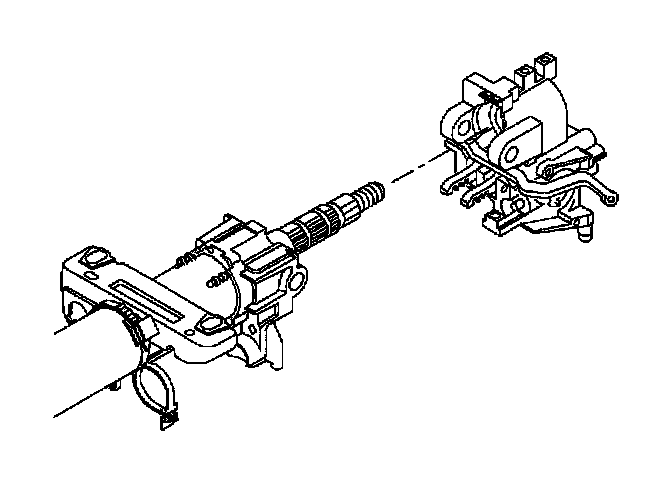

5. Remove the bearing and housing assembly.
