Lock Housing - Disassemble

DISASSEMBLY PROCEDURE
1. Remove the upper tilt head components assembly. Refer to Steering Column Tilt Head Housing Disassemble - Off Vehicle.

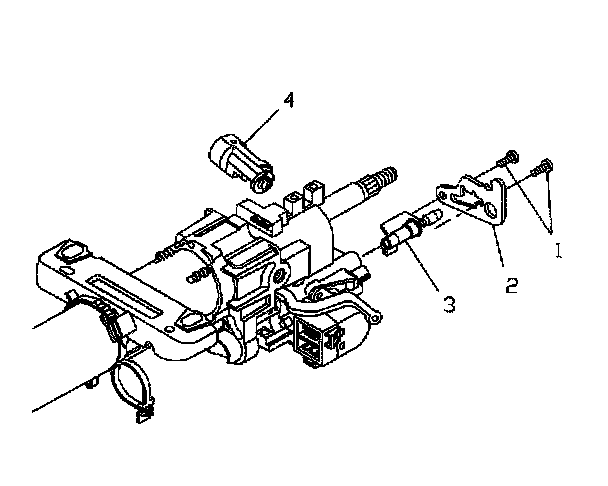

2. Remove the 2 tapping screws (1).
3. Remove the lock bolt support bracket (2).
4. Remove the lock bolt assembly (3).
5. Remove the ignition lock actuator assembly (4).
